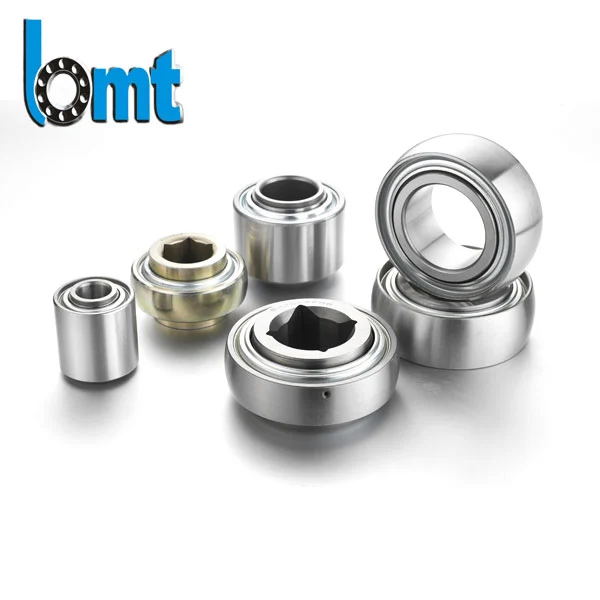

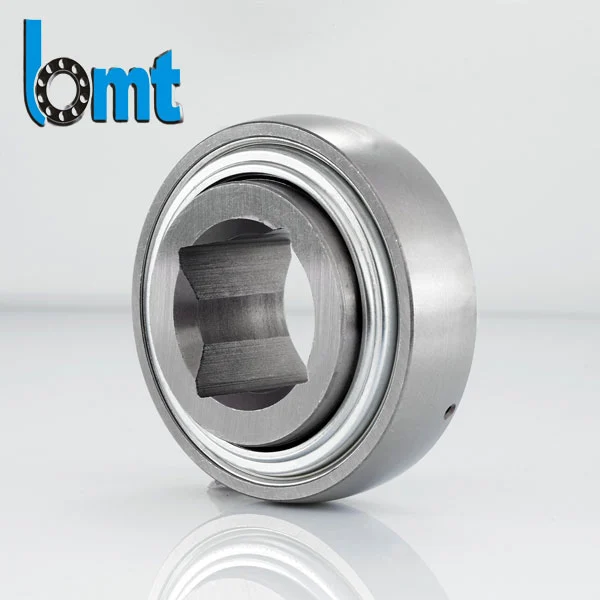

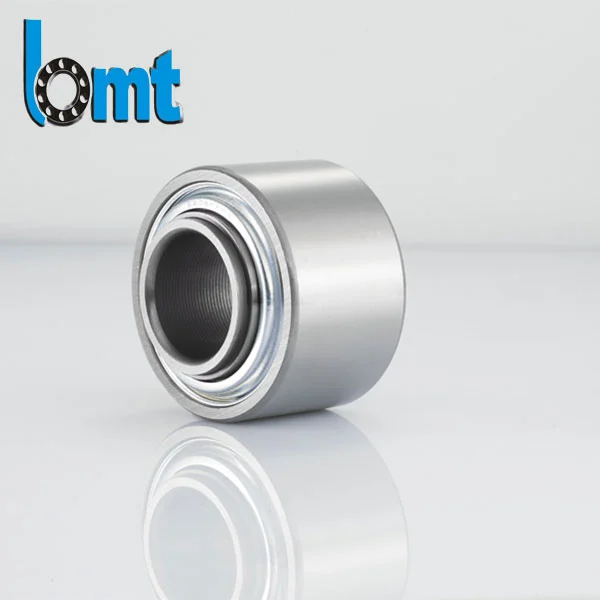

Masukkan galas
Masukkan galas, juga dikenali sebagai galas cincin dalaman yang luas, direka khas unit galas yang digunakan dalam aplikasi galas yang ditempatkan. Galas ini adalah pra-lubricated dan dimeteraikan, menjadikannya mudah dipasang dan diselenggarakan. Mereka biasanya digunakan dalam aplikasi di mana penjajaran atau pelinciran semula adalah sukar. Syarikat BMT menawarkan pelbagai galas dengan prestasi tinggi, pemesinan ketepatan, dan reka bentuk yang mantap untuk memenuhi keperluan pelbagai industri.
Ciri -ciri produk
Masukkan galas mempunyai permukaan luar sfera, yang membolehkan mereka menyelaraskan diri dalam perumahan, mengimbangi misalignments. Mereka biasanya telah menetapkan skru, kolar mengunci eksentrik, atau penyesuai tirus untuk mengunci aci. Galas BMT Company datang dengan meterai berkualiti tinggi untuk mencegah bahan cemar dan mengekalkan pelinciran, memastikan kehidupan perkhidmatan yang panjang walaupun dalam persekitaran yang menuntut.
Parameter teknikal

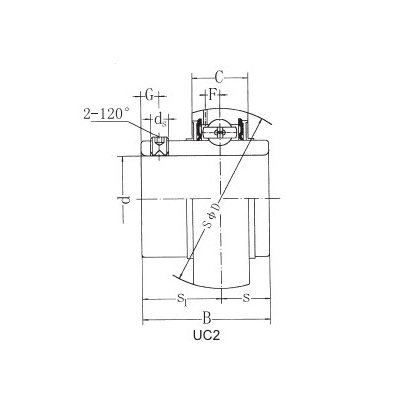

| Masukkan galas: siri UC | |||||||||||
| Tidak mengandungi | Diameter aci d | Dimensi (mm) | Penilaian beban dinamik n | Penilaian beban statik n | |||||||
| mm | D | B | C | S | S1 | G | F | ds | |||
| UC201 | 12 | 47 | 31 | 17 | 12.7 | 18.3 | 4.8 | 3.7 | M6x0.75 | 12800 | 6650 |
| UC201-8 | 47 | 31 | 17 | 12.7 | 18.3 | 4.8 | 3.7 | 1/4-28UNF | 12800 | 6650 | |
| UC202 | 15 | 47 | 31 | 17 | 12.7 | 18.3 | 4.8 | 3.7 | M6x0.75 | 12800 | 6650 |
| UC202-9 | 47 | 31 | 17 | 12.7 | 18.3 | 4.8 | 3.7 | 1/4-28UNF | 12800 | 6650 | |
| UC202-10 | 47 | 31 | 17 | 12.7 | 18.3 | 4.8 | 3.7 | 1/4-28UNF | 12800 | 6650 | |
| UC203 | 17 | 47 | 31 | 17 | 12.7 | 18.3 | 4.8 | 3.7 | M6x0.75 | 12800 | 6650 |
| UC203-11 | 47 | 31 | 17 | 12.7 | 18.3 | 4.8 | 3.7 | 1/4-28UNF | 12800 | 6650 | |
| UC204 | 20 | 47 | 31 | 17 | 12.7 | 18.3 | 4.8 | 3.7 | M6x 0.75 | 12800 | 6650 |
| UC204-12 | 47 | 31 | 17 | 12.7 | 18.3 | 4.8 | 3.7 | 1/4-28UNF | 12800 | 6650 | |
| UC205 | 25 | 52 | 34.1 | 17 | 14.3 | 19.8 | 5 | 3.9 | M6x0.75 | 14000 | 7850 |
| UC205-13 | 52 | 34.1 | 17 | 14.3 | 19.8 | 5 | 3.9 | 1/4-28UNF | 14000 | 7850 | |
| UC205-14 | 52 | 34.1 | 17 | 14.3 | 19.8 | 5 | 3.9 | 1/4-28UNF | 14000 | 7850 | |
| UC205-15 | 52 | 34.1 | 17 | 14.3 | 19.8 | 5 | 3.9 | 1/4-28UNF | 14000 | 7850 | |
| UC205-16 | 52 | 34.1 | 17 | 14.3 | 19.8 | 5 | 3.9 | 1/4-28UNF | 14000 | 7850 | |
| UC206 | 30 | 62 | 38.1 | 19 | 15.9 | 22.2 | 5 | 5 | M6x0.75 | 19500 | 11300 |
| UC206-17 | 62 | 38.1 | 19 | 15.9 | 22.2 | 5 | 5 | 1/4-28UNF | 19500 | 11300 | |
| UC206-18 | 62 | 38.1 | 19 | 15.9 | 22.2 | 5 | 5 | 1/4-28UNF | 19500 | 11300 | |
| UC206-19 | 62 | 38.1 | 19 | 15.9 | 22.2 | 5 | 5 | 1/4-28UNF | 19500 | 11300 | |
| UC206-20 | 62 | 38.1 | 19 | 15.9 | 22.2 | 5 | 5 | 1/4-28UNF | 19500 | 11300 | |
| UC207 | 35 | 72 | 42.9 | 20 | 17.5 | 25.4 | 7 | 5.7 | M8X1 | 25700 | 15300 |
| UC207-20 | 72 | 42.9 | 20 | 17.5 | 25.4 | 7 | 5.7 | 5/16-24UNF | 25700 | 15300 | |
| UC207-21 | 72 | 42.9 | 20 | 17.5 | 25.4 | 7 | 5.7 | 5/16-24UNF | 25700 | 15300 | |
| UC207-22 | 72 | 42.9 | 20 | 17.5 | 25.4 | 7 | 5.7 | 5/16-24UNF | 25700 | 15300 | |
| UC207-23 | 72 | 42.9 | 20 | 17.5 | 25.4 | 7 | 5.7 | 5/16-24UNF | 25700 | 15300 | |
| UC208 | 40 | 80 | 49.2 | 21 | 19 | 30.2 | 8 | 6.2 | M8X1 | 29500 | 18100 |
| UC208-24 | 80 | 49.2 | 21 | 19 | 30.2 | 8 | 6.2 | 5/16-24UNF | 29500 | 18100 | |
| UC208-25 | 80 | 49.2 | 21 | 19 | 30.2 | 8 | 6.2 | 5/16-24UNF | 29500 | 18100 | |
| UC209 | 45 | 85 | 49.2 | 22 | 19 | 30.2 | 8 | 6.4 | M8X1 | 31600 | 20600 |
| UC209-26 | 85 | 49.2 | 22 | 19 | 30.2 | 8 | 6.4 | 5/16-24UNF | 31600 | 20600 | |
| UC209-27 | 85 | 49.2 | 22 | 19 | 30.2 | 8 | 6.4 | 5/16-24UNF | 31600 | 20600 | |
| UC209-28 | 85 | 49.2 | 22 | 19 | 30.2 | 8 | 6.4 | 5/16-24UNF | 31600 | 20600 | |
| UC210 | 50 | 90 | 51.6 | 24 | 19 | 32.6 | 10 | 6.5 | M10X1 | 35000 | 23200 |
| UC210-29 | 90 | 51.6 | 24 | 19 | 32.6 | 10 | 6.5 | 3/8-24unf | 35000 | 23200 | |
| UC210-30 | 90 | 51.6 | 24 | 19 | 32.6 | 10 | 6.5 | 3/8-24unf | 35000 | 23200 | |
| UC210-31 | 90 | 51.6 | 24 | 19 | 32.6 | 10 | 6.5 | 3/8-24unf | 35000 | 23200 | |
| UC210-32 | 90 | 51.6 | 24 | 19 | 32.6 | 10 | 6.5 | 3/8-24unf | 35000 | 23200 | |
| UC211 | 55 | 100 | 55.6 | 25 | 22.2 | 33.4 | 10 | 7 | M10X1 | 43500 | 29200 |
| UC211-32 | 100 | 55.6 | 25 | 22.2 | 33.4 | 10 | 7 | 3/8-24unf | 43500 | 29200 | |
| UC211-33 | 100 | 55.6 | 25 | 22.2 | 33.4 | 10 | 7 | 3/8-24unf | 43500 | 29200 | |
| UC211-34 | 100 | 55.6 | 25 | 22.2 | 33.4 | 10 | 7 | 3/8-24unf | 43500 | 29200 | |
| UC211-35 | 100 | 55.6 | 25 | 22.2 | 33.4 | 10 | 7 | 3/8-24unf | 43500 | 29200 | |
| UC212 | 60 | 110 | 65.1 | 27 | 25.4 | 39.7 | 10 | 7.6 | M10X1 | 47700 | 32900 |
| UC212-36 | 110 | 65.1 | 27 | 25.4 | 39.7 | 10 | 7.6 | 3/8-24unf | 47700 | 32900 | |
| UC212-37 | 110 | 65.1 | 27 | 25.4 | 39.7 | 10 | 7.6 | 3/8-24unf | 47700 | 32900 | |
| UC212-38 | 110 | 65.1 | 27 | 25.4 | 39.7 | 10 | 7.6 | 3/8-24unf | 47700 | 32900 | |
| UC212-39 | 110 | 65.1 | 27 | 25.4 | 39.7 | 10 | 7.6 | 3/8-24unf | 47700 | 32900 | |
| UC213 | 65 | 120 | 65.1 | 28 | 25.4 | 39.7 | 10 | 8.5 | M10X1 | 57500 | 40000 |
| UC213-40 | 120 | 65.1 | 28 | 25.4 | 39.7 | 10 | 8.5 | 3/8-24unf | 57500 | 40000 | |
| UC213-41 | 120 | 65.1 | 28 | 25.4 | 39.7 | 10 | 8.5 | 3/8-24unf | 57500 | 40000 | |
| UC214 | 70 | 125 | 74.6 | 29 | 30.2 | 44.4 | 12 | 8.9 | M12X1.5 | 60800 | 45000 |
| UC214-42 | 125 | 74.6 | 29 | 30.2 | 44.4 | 12 | 8.9 | 7/16-20unf | 60800 | 45000 | |
| UC214-43 | 125 | 74.6 | 29 | 30.2 | 44.4 | 12 | 8.9 | 7/16-20unf | 60800 | 45000 | |
| UC214-44 | 125 | 74.6 | 29 | 30.2 | 44.4 | 12 | 8.9 | 7/16-20unf | 60800 | 45000 | |
| UC215 | 75 | 130 | 77.8 | 30 | 33.3 | 44.5 | 12 | 9.2 | M12X1.5 | 66000 | 49500 |
| UC215-45 | 130 | 77.8 | 30 | 33.3 | 44.5 | 12 | 9.2 | 7/16-20unf | 66000 | 49500 | |
| UC215-46 | 130 | 77.8 | 30 | 33.3 | 44.5 | 12 | 9.2 | 7/16-20unf | 66000 | 49500 | |
| UC215-47 | 130 | 77.8 | 30 | 33.3 | 44.5 | 12 | 9.2 | 7/16-20unf | 66000 | 49500 | |
| UC215-48 | 130 | 77.8 | 30 | 33.3 | 44.5 | 12 | 9.2 | 7/16-20unf | 66000 | 49500 | |
| UC216 | 80 | 140 | 82.6 | 32 | 33.3 | 49.3 | 12 | 9.5 | M12X1.5 | 71500 | 54200 |
| UC216-49 | 140 | 82.6 | 32 | 33.3 | 49.3 | 12 | 9.5 | 7/16-20unf | 71500 | 54200 | |
| UC216-50 | 140 | 82.6 | 32 | 33.3 | 49.3 | 12 | 9.5 | 7/16-20unf | 71500 | 54200 | |
| UC216-51 | 140 | 82.6 | 32 | 33.3 | 49.3 | 12 | 9.5 | 7/16-20unf | 71500 | 54200 | |
| UC217 | 85 | 150 | 85.7 | 34 | 34.1 | 51.6 | 12 | 10.2 | M12X1.5 | 83500 | 64000 |
| UC217-52 | 150 | 85.7 | 34 | 34.1 | 51.6 | 12 | 10.2 | 7/16-20unf | 83500 | 64000 | |
| UC217-53 | 150 | 85.7 | 34 | 34.1 | 51.6 | 12 | 10.2 | 7/16-20unf | 83500 | 64000 | |
| UC217-55 | 150 | 85.7 | 34 | 34.1 | 51.6 | 12 | 10.2 | 7/16-20unf | 83500 | 64000 | |
| UC218 | 90 | 160 | 96 | 36 | 39.7 | 56.3 | 12 | 11.2 | M12X1.5 | 96000 | 71500 |
| UC218-56 | 160 | 96 | 36 | 39.7 | 56.3 | 12 | 11.2 | 1/2-20unf | 96000 | 71500 | |
| UC305 | 25 | 62 | 38 | 20 | 15 | 23 | 6 | 5.4 | M61 | 22400 | 11500 |
| UC305-13 | 62 | 38 | 20 | 15 | 23 | 6 | 5.4 | 1/4-28UNF | 22400 | 11500 | |
| UC305-14 | 62 | 38 | 20 | 15 | 23 | 6 | 5.4 | 1/4-28UNF | 22400 | 11500 | |
| UC305-15 | 62 | 38 | 20 | 15 | 23 | 6 | 5.4 | 1/4-28UNF | 22400 | 11500 | |
| UC305-16 | 62 | 38 | 20 | 15 | 23 | 6 | 5.4 | 1/4-28UNF | 22400 | 11500 | |
| C306 | 30 | 72 | 43 | 23 | 17 | 26 | 6 | 5.7 | M6x1 | 26700 | 15000 |
| UC306-17 | 72 | 43 | 23 | 17 | 26 | 6 | 5.7 | 1/4-28UNF | 26700 | 15000 | |
| UC306-18 | 72 | 43 | 23 | 17 | 26 | 6 | 5.7 | 1/4-28UNF | 26700 | 15000 | |
| UC306-19 | 72 | 43 | 23 | 17 | 26 | 6 | 5.7 | 1/4-28UNF | 26700 | 15000 | |
| UC307 | 35 | 80 | 48 | 25 | 19 | 29 | 8 | 6.2 | M8X1 | 33500 | 19100 |
| UC307-20 | 80 | 48 | 25 | 19 | 29 | 8 | 6.2 | 5/16-24UNF | 33500 | 19100 | |
| UC307-21 | 80 | 48 | 25 | 19 | 29 | 8 | 6.2 | 5/16-24UNF | 33500 | 19100 | |
| UC307-22 | 80 | 48 | 25 | 19 | 29 | 8 | 6.2 | 5/16-24UNF | 33500 | 19100 | |
| UC307-23 | 80 | 48 | 25 | 19 | 29 | 8 | 6.2 | 5/16-24UNF | 33500 | 19100 | |
| C308 | 40 | 90 | 52 | 27 | 19 | 33 | 10 | 7 | M10X1 | 40500 | 24000 |
| UC308-24 | 90 | 52 | 27 | 19 | 33 | 10 | 7 | 3/8-24unf | 40500 | 24000 | |
| UC308-25 | 90 | 52 | 27 | 19 | 33 | 10 | 7 | 3/8-24unf | 40500 | 24000 | |
| UC309 | 45 | 100 | 57 | 30 | 22 | 35 | 10 | 7.8 | M10X1 | 52800 | 31800 |
| UC309-26 | 100 | 57 | 30 | 22 | 35 | 10 | 7.8 | 3/8-24unf | 52800 | 31800 | |
| UC309-27 | 100 | 57 | 30 | 22 | 35 | 10 | 7.8 | 3/8-24unf | 52800 | 31800 | |
| UC309-28 | 100 | 57 | 30 | 22 | 35 | 10 | 7.8 | 3/8-24unf | 52800 | 31800 | |
| UC310 | 50 | 110 | 61 | 32 | 22 | 39 | 12 | 8.5 | M12X1.5 | 61800 | 37900 |
| UC310-29 | 110 | 61 | 32 | 22 | 39 | 12 | 8.5 | 1/2-20unf | 61800 | 37900 | |
| UC310-30 | 110 | 61 | 32 | 22 | 39 | 12 | 8.5 | 1/2-20unf | 61800 | 37900 | |
| UC310-31 | 110 | 61 | 32 | 22 | 39 | 12 | 8.5 | 1/2-20unf | 61800 | 37900 | |
| UC311 | 55 | 120 | 66 | 34 | 25 | 41 | 12 | 9.2 | M12X1.5 | 71500 | 44700 |
| UC311-32 | 120 | 66 | 34 | 25 | 41 | 12 | 9.2 | 1/2-20unf | 71500 | 44700 | |
| UC311-33 | 120 | 66 | 34 | 25 | 41 | 12 | 9.2 | 1/2-20unf | 71500 | 44700 | |
| UC311-34 | 120 | 66 | 34 | 25 | 41 | 12 | 9.2 | 1/2-20unf | 71500 | 44700 | |
| UC311-35 | 120 | 66 | 34 | 25 | 41 | 12 | 9.2 | 1/2-20unf | 71500 | 44700 | |
| UC312 | 60 | 130 | 71 | 36 | 26 | 45 | 12 | 9.8 | M12X1.5 | 81700 | 51800 |
| UC312-36 | 130 | 71 | 36 | 26 | 45 | 12 | 9.8 | 1/2-20unf | 81700 | 51800 | |
| UC312-37 | 130 | 71 | 36 | 26 | 45 | 12 | 9.8 | 1/2-20unf | 81700 | 51800 | |
| UC312-38 | 130 | 71 | 36 | 26 | 45 | 12 | 9.8 | 1/2-20unf | 81700 | 51800 | |
| UC312-39 | 130 | 71 | 36 | 26 | 45 | 12 | 9.8 | 1/2-20unf | 81700 | 51800 | |
| UC313 | 65 | 140 | 75 | 38 | 30 | 45 | 12 | 10.5 | M12X1.5 | 92500 | 60000 |
| UC313-40 | 140 | 75 | 38 | 30 | 45 | 12 | 10.5 | 1/2-20unf | 92500 | 60000 | |
| UC313-41 | 140 | 75 | 38 | 30 | 45 | 12 | 10.5 | 1/2-20unf | 92500 | 60000 | |
| UC314 | 70 | 150 | 78 | 40 | 33 | 45 | 12 | 11.1 | M12X1.5 | 104500 | 68000 |
| UC314-42 | 150 | 78 | 40 | 33 | 45 | 12 | 11.1 | 1/2-20unf | 104500 | 68000 | |
| UC314-43 | 150 | 78 | 40 | 33 | 45 | 12 | 11.1 | 1/2-20unf | 104500 | 68000 | |
| UC314-44 | 150 | 78 | 40 | 33 | 45 | 12 | 11.1 | 1/2-20unf | 104500 | 68000 | |
| UC315 | 75 | 160 | 82 | 42 | 32 | 50 | 14 | 11.8 | M14X1.5 | 113000 | 77000 |
| UC315-45 | 160 | 82 | 42 | 32 | 50 | 14 | 11.8 | 9/16-18unf | 113000 | 77000 | |
| UC315-46 | 160 | 82 | 42 | 32 | 50 | 14 | 11.8 | 9/16-18unf | 113000 | 77000 | |
| UC315-47 | 160 | 82 | 42 | 32 | 50 | 14 | 11.8 | 9/16-18unf | 113000 | 77000 | |
| UC315-48 | 160 | 82 | 42 | 32 | 50 | 14 | 11.8 | 9/16-18unf | 113000 | 77000 | |
| UC316 | 80 | 170 | 86 | 44 | 34 | 52 | 14 | 12.5 | M14X1.5 | 123000 | 86500 |
| UC316-49 | 170 | 86 | 44 | 34 | 52 | 14 | 12.5 | 9/16-18unf | 123000 | 86500 | |
| UC316-50 | 170 | 86 | 44 | 34 | 52 | 14 | 12.5 | 9/16-18unf | 123000 | 86500 | |
| UC316-51 | 170 | 86 | 44 | 34 | 52 | 14 | 12.5 | 9/16-18unf | 123000 | 86500 | |
| UC317 | 85 | 180 | 96 | 46 | 40 | 56 | 16 | 13.1 | M16X1.5 | 132600 | 96500 |
| UC318 | 90 | 190 | 96 | 48 | 40 | 56 | 16 | 13.8 | M16X1.5 | 144000 | 108000 |
| UC319 | 95 | 200 | 103 | 50 | 41 | 62 | 16 | 14.7 | M16X1.5 | 156600 | 122000 |
| UC320 | 100 | 215 | 108 | 54 | 42 | 66 | 18 | 15.7 | M18X1.5 | 17300 | 141000 |
| UC322 | 110 | 240 | 117 | 60 | 46 | 71 | 18 | 17.7 | M18X1.5 | 205000 | 179000 |
| UC324 | 120 | 260 | 126 | 64 | 51 | 75 | 18 | 19 | M18X1.5 | 227000 | 207000 |
| UC326 | 130 | 280 | 135 | 68 | 54 | 81 | 20 | 20 | M20X1.5 | 253000 | 241000 |
| UC328 | 140 | 300 | 145 | 72 | 59 | 86 | 20 | 22 | M20X1.5 | 274000 | 272000 |
| Masukkan galas: UCX | ||||||||||||
| Tidak mengandungi | Diameter aci d | Dimensi (mm) | Penilaian beban dinamik n | Penilaian beban statik n | ||||||||
| mm | D | Bi | Menjadi | r | n | m | G | ds | T | |||
| UCX05 | 25 | 62 | 38.1 | 19 | 1.5 | 15.9 | 22.2 | 5 | M6x0.75 | 5 | 1540 | 1020 |
| UCX05-13 | 62 | 38.1 | 19 | 1.5 | 15.9 | 22.2 | 5 | 1/4-28 UNF | 5 | 1540 | 1020 | |
| UCX05-14 | 62 | 38.1 | 19 | 1.5 | 15.9 | 22.2 | 5 | 1/4-28 UNF | 5 | 1540 | 1020 | |
| UCX05-15 | 62 | 38.1 | 19 | 1.5 | 15.9 | 22.2 | 5 | 1/4-28 UNF | 5 | 1540 | 1020 | |
| UCX05-16 | 62 | 38.1 | 19 | 1.5 | 15.9 | 22.2 | 5 | 1/4-28 UNF | 5 | 1540 | 1020 | |
| UCX06 | 30 | 72 | 42.9 | 20 | 2 | 17.5 | 25.4 | 6 | M8x 1 | 5.7 | 2030 | 1400 |
| UCX06-17 | 72 | 42.9 | 20 | 2 | 17.5 | 25.4 | 6 | 5/16-24 UNF | 5.7 | 2030 | 1400 | |
| UCX06-18 | 72 | 42.9 | 20 | 2 | 17.5 | 25.4 | 6 | 5/16-24 UNF | 5.7 | 2030 | 1400 | |
| UCX06-19 | 72 | 42.9 | 20 | 2 | 17.5 | 25.4 | 6 | 5/16-24 UNF | 5.7 | 2030 | 1400 | |
| UCX06-20 | 72 | 42.9 | 20 | 2 | 17.5 | 25.4 | 6 | 5/16-24 UNF | 5.7 | 2030 | 1400 | |
| UCX07 | 35 | 80 | 49.2 | 21 | 2 | 19 | 30.2 | 8 | M8x 1 | 6.2 | 2300 | 1600 |
| UCX07-20 | 80 | 49.2 | 21 | 2 | 19 | 30.2 | 8 | 5/16-24 UNF | 6.2 | 2300 | 1600 | |
| UCX07-21 | 80 | 49.2 | 21 | 2 | 19 | 30.2 | 8 | 5/16-24 UNF | 6.2 | 2300 | 1600 | |
| UCX07-22 | 80 | 49.2 | 21 | 2 | 19 | 30.2 | 8 | 5/16-24 UNF | 6.2 | 2300 | 1600 | |
| UCX07-23 | 80 | 49.2 | 21 | 2 | 19 | 30.2 | 8 | 5/16-24 UNF | 6.2 | 2300 | 1600 | |
| UCX08 | 40 | 85 | 49.2 | 22 | 2 | 19 | 30.2 | 8 | M8x 1 | 6.4 | 2560 | 1810 |
| UCX08-24 | 85 | 49.2 | 22 | 2 | 19 | 30.2 | 8 | 5/16-24 UNF | 6.4 | 2560 | 1810 | |
| UCX08-25 | 85 | 49.2 | 22 | 2 | 19 | 30.2 | 8 | 5/16-24 UNF | 6.4 | 2560 | 1810 | |
| UCX09 | 45 | 90 | 51.6 | 24 | 2 | 19 | 32.6 | 10 | M10X1. 25 | 6.5 | 2750 | 2020 |
| UCX09-26 | 90 | 51.6 | 24 | 2 | 19 | 32.6 | 10 | 3/8-24 UNF | 6.5 | 2750 | 2020 | |
| UCX09-27 | 90 | 51.6 | 24 | 2 | 19 | 32.6 | 10 | 3/8-24 UNF | 6.5 | 2750 | 2020 | |
| UCX09-28 | 90 | 51.6 | 24 | 2 | 19 | 32.6 | 10 | 3/8-24 UNF | 6.5 | 2750 | 2020 | |
| UCX10 | 50 | 100 | 55.6 | 25 | 2.5 | 22.2 | 33.4 | 10 | M10X1. 25 | 7 | 3400 | 2550 |
| UCX10-29 | 100 | 55.6 | 25 | 2.5 | 22.2 | 33.4 | 10 | 3/8-24 UNF | 7 | 3400 | 2550 | |
| UCX10-30 | 100 | 55.6 | 25 | 2.5 | 22.2 | 33.4 | 10 | 3/8-24 UNF | 7 | 3400 | 2550 | |
| UCX10-31 | 100 | 55.6 | 25 | 2.5 | 22.2 | 33.4 | 10 | 3/8-24 UNF | 7 | 3400 | 2550 | |
| UCX10-32 | 100 | 55.6 | 25 | 2.5 | 22.2 | 33.4 | 10 | 3/8-24 UNF | 7 | 3400 | 2550 | |
| UCX11 | 55 | 110 | 65.1 | 27 | 2.5 | 25.4 | 39.7 | 10 | M10X1. 25 | 7.6 | 4100 | 3150 |
| UCX11-32 | 110 | 65.1 | 27 | 2.5 | 25.4 | 39.7 | 10 | 3/8-24 UNF | 7.6 | 4100 | 3150 | |
| UCX11-33 | 110 | 65.1 | 27 | 2.5 | 25.4 | 39.7 | 10 | 3/8-24 UNF | 7.6 | 4100 | 3150 | |
| UCX11-34 | 110 | 65.1 | 27 | 2.5 | 25.4 | 39.7 | 10 | 3/8-24 UNF | 7.6 | 4100 | 3150 | |
| UCX11-35 | 110 | 65.1 | 27 | 2.5 | 25.4 | 39.7 | 10 | 3/8-24 UNF | 7.6 | 4100 | 3150 | |
| UCX12 | 60 | 120 | 65.1 | 28 | 2.5 | 25.4 | 39.7 | 10 | M10X1. 25 | 8.9 | 4480 | 3470 |
| UCX12-36 | 120 | 65.1 | 28 | 2.5 | 25.4 | 39.7 | 10 | 3/8-24 UNF | 8.9 | 4480 | 3470 | |
| UCX12-37 | 120 | 65.1 | 28 | 2.5 | 25.4 | 39.7 | 10 | 3/8-24 UNF | 8.9 | 4480 | 3470 | |
| UCX12-38 | 120 | 65.1 | 28 | 2.5 | 25.4 | 39.7 | 10 | 3/8-24 UNF | 8.9 | 4480 | 3470 | |
| UCX12-39 | 120 | 65.1 | 28 | 2.5 | 25.4 | 39.7 | 10 | 3/8-24 UNF | 8.9 | 4480 | 3470 | |
| UCX13 | 65 | 125 | 74.6 | 30 | 2.5 | 30.2 | 44.4 | 12 | M12X1. 5 | 8.9 | 4870 | 3810 |
| UCX13-40 | 125 | 74.6 | 30 | 2.5 | 30.2 | 44.4 | 12 | 7/16-20 UNF | 8.9 | 4870 | 3810 | |
| UCX13-41 | 125 | 74.6 | 30 | 2.5 | 30.2 | 44.4 | 12 | 7/16-20 UNF | 8.9 | 4870 | 3810 | |
| UCX14 | 70 | 130 | 77.8 | 32 | 2.5 | 33.3 | 44.5 | 12 | M12X 1. 5 | 8.9 | 5200 | 4200 |
| UCX14-42 | 130 | 77.8 | 32 | 2.5 | 33.3 | 44.5 | 12 | 7/16-20 UNF | 8.9 | 5200 | 4200 | |
| UCX14-43 | 130 | 77.8 | 32 | 2.5 | 33.3 | 44.5 | 12 | 7/16-20 UNF | 8.9 | 5200 | 4200 | |
| UCX14-44 | 130 | 77.8 | 32 | 2.5 | 33.3 | 44.5 | 12 | 7/16-20 UNF | 8.9 | 5200 | 4200 | |
| UCX15 | 75 | 140 | 82.6 | 33 | 3 | 33.3 | 49.3 | 14 | M12X 1. 5 | 9.6 | 5700 | 4550 |
| UCX15-45 | 140 | 82.6 | 33 | 3 | 33.3 | 49.3 | 14 | 7/16-20 UNF | 9.6 | 5700 | 4550 | |
| UCX15-46 | 140 | 82.6 | 33 | 3 | 33.3 | 49.3 | 14 | 7/16-20 UNF | 9.6 | 5700 | 4550 | |
| UCX15-47 | 140 | 82.6 | 33 | 3 | 33.3 | 49.3 | 14 | 7/16-20 UNF | 9.6 | 5700 | 4550 | |
| UCX15-48 | 140 | 82.6 | 33 | 3 | 33.3 | 49.3 | 14 | 7/16-20 UNF | 9.6 | 5700 | 4550 | |
| UCX16 | 80 | 150 | 85.7 | 35 | 3 | 34.1 | 51.6 | 14 | M12X1. 5 | 10 | 6600 | 5320 |
| UCX16-50 | 150 | 85.7 | 35 | 3 | 34.1 | 51.6 | 14 | 7/16-20 UNF | 10 | 6600 | 5320 | |
| UCX17 | 85 | 160 | 96 | 37 | 3 | 39.7 | 56.3 | 15 | M12X1. 5 | 11 | 7550 | 6170 |
| UCX17-52 | 160 | 96 | 37 | 3 | 39.7 | 56.3 | 15 | 7/16-20 UNF | 11 | 7550 | 6170 | |
| UCX18 | 90 | 170 | 104 | 38 | 3 | 42.9 | 61.1 | 14 | M14X1. 5 | 11.9 | 11122 | 8449 |
| UCX18-56 | 170 | 104 | 38 | 3 | 42.9 | 61.1 | 14 | 1/2-20 UNF | 11.9 | 11122 | 8449 | |
| UCX20 | 100 | 190 | 117.5 | 42 | 3.5 | 49.2 | 68.3 | 16 | M16X1.5 | 13 | 13570 | 10714 |
| UCX20-63 | 190 | 117.5 | 42 | 3.5 | 49.2 | 68.3 | 16 | 5/8-18 UNF | 13 | 13570 | 10714 | |
| UCX20-64 | 190 | 117.5 | 42 | 3.5 | 49.2 | 68.3 | 16 | 5/8-18 UNF | 13 | 13570 | 10714 | |
| Masukkan galas: HC | |||||||||||||
| No. | Aci dia d | Dimensi (mm) | Dynami | Statik | |||||||||
| (mm) | D | B1 | B | C | S | G | B5 | d3 | F | ds | C Rating Load N | penarafan beban n | |
| HC201 | 12 | 47 | 43.7 | 34.2 | 17 | 17.1 | 4.8 | 13.5 | 33.3 | 3.7 | M6x1 | 12800 | 6650 |
| HC201-8 | 47 | 43.7 | 34.2 | 17 | 17.1 | 4.8 | 13.5 | 33.3 | 3.7 | 1/4-28UNF | 12800 | 6650 | |
| HC202 | 15 | 47 | 43.7 | 34.2 | 17 | 17.1 | 4.8 | 13.5 | 33.3 | 3.7 | M6x1 | 12800 | 6650 |
| HC202-9 | 47 | 43.7 | 34.2 | 17 | 17.1 | 4.8 | 13.5 | 33.3 | 3.7 | 1/4-28UNF | 12800 | 6650 | |
| HC202-10 | 47 | 43.7 | 34.2 | 17 | 17.1 | 4.8 | 13.5 | 33.3 | 3.7 | 1/4-28UNF | 12800 | 6650 | |
| HC203 | 17 | 47 | 43.7 | 34.2 | 17 | 17.1 | 4.8 | 13.5 | 33.3 | 3.7 | M6x1 | 12800 | 6650 |
| HC203-11 | 47 | 43.7 | 34.2 | 17 | 17.1 | 4.8 | 13.5 | 33.3 | 3.7 | 1/4-28UNF | 12800 | 6650 | |
| HC204 | 20 | 47 | 43.7 | 34.2 | 17 | 17.1 | 4.8 | 13.5 | 33.3 | 3.7 | M6x1 | 12800 | 6650 |
| HC204-12 | 47 | 43.7 | 34.2 | 17 | 17.1 | 4.8 | 13.5 | 33.3 | 3.7 | 1/4-28UNF | 12800 | 6650 | |
| HC205 | 25 | 52 | 44.4 | 34.9 | 17 | 17.5 | 4.8 | 13.5 | 38.1 | 3.9 | M6 x1 | 14000 | 7850 |
| HC205-13 | 52 | 44.4 | 34.9 | 17 | 17.5 | 4.8 | 13.5 | 38.1 | 3.9 | 1/4-28UNF | 14000 | 7850 | |
| HC205-14 | 52 | 44.4 | 34.9 | 17 | 17.5 | 4.8 | 13.5 | 38.1 | 3.9 | 1/4-28UNF | 14000 | 7850 | |
| HC205-15 | 52 | 44.4 | 34.9 | 17 | 17.5 | 4.8 | 13.5 | 38.1 | 3.9 | 1/4-28UNF | 14000 | 7850 | |
| HC205-16 | 52 | 44.4 | 34.9 | 17 | 17.5 | 4.8 | 13.5 | 38.1 | 3.9 | 1/4-28UNF | 14000 | 7850 | |
| HC206 | 30 | 62 | 48.4 | 36.5 | 19 | 18.3 | 6 | 15.9 | 44.5 | 5 | M8 X1 | 19510 | 11300 |
| HC206-17 | 62 | 48.4 | 36.5 | 19 | 18.3 | 6 | 15.9 | 44.5 | 5 | 5/16-24UNF | 19510 | 11300 | |
| HC206-18 | 62 | 48.4 | 36.5 | 19 | 18.3 | 6 | 15.9 | 44.5 | 5 | 5/16-24UNF | 19510 | 11300 | |
| HC206-19 | 62 | 48.4 | 36.5 | 19 | 18.3 | 6 | 15.9 | 44.5 | 5 | 5/16-24UNF | 19510 | 11300 | |
| HC206-20 | 62 | 48.4 | 36.5 | 19 | 18.3 | 6 | 15.9 | 44.5 | 5 | 5/16-24UNF | 19510 | 11300 | |
| HC207 | 35 | 72 | 51.1 | 37.6 | 20 | 18.8 | 6.8 | 17.5 | 55.6 | 5.7 | M8 X1 | 25700 | 15300 |
| HC207-20 | 51.1 | 37.6 | 20 | 18.8 | 6.8 | 17.5 | 55.6 | 5.7 | 5/16-24UNF | 25700 | 15300 | ||
| HC207-21 | 51.1 | 37.6 | 20 | 18.8 | 6.8 | 17.5 | 55.6 | 5.7 | 5/16-24UNF | 25700 | 15300 | ||
| HC207-22 | 51.1 | 37.6 | 20 | 18.8 | 6.8 | 17.5 | 55.6 | 5.7 | 5/16-24UNF | 25700 | 15300 | ||
| HC207-23 | 51.1 | 37.6 | 20 | 18.8 | 6.8 | 17.5 | 55.6 | 5.7 | 5/16-24UNF | 25700 | 15300 | ||
| HC208 | 40 | 80 | 56.3 | 42.8 | 21 | 21.4 | 6.8 | 18.3 | 60.3 | 6.2 | M8 x 1 | 29500 | 18100 |
| HC208-24 | 80 | 56.3 | 42.8 | 21 | 21.4 | 6.8 | 18.3 | 60.3 | 6.2 | 5/16-24UNF | 29500 | 18100 | |
| HC208-25 | 80 | 56.3 | 42.8 | 21 | 21.4 | 6.8 | 18.3 | 60.3 | 6.2 | 5/16-24UNF | 29500 | 18100 | |
| HC209 | 45 | 85 | 56.3 | 42.8 | 22 | 21.4 | 6.8 | 18.3 | 63.5 | 6.4 | M8 X1 | 31600 | 20600 |
| HC209-26 | 85 | 56.3 | 42.8 | 22 | 21.4 | 6.8 | 18.3 | 63.5 | 6.4 | 5/16-24UNF | 31600 | 20600 | |
| HC209-27 | 85 | 56.3 | 42.8 | 22 | 21.4 | 6.8 | 18.3 | 63.5 | 6.4 | 5/16-24UNF | 31600 | 20600 | |
| HC209-28 | 85 | 56.3 | 42.8 | 22 | 21.4 | 6.8 | 18.3 | 63.5 | 6.4 | 5/16-24UNF | 31600 | 20600 | |
| HC210 | 50 | 90 | 62.7 | 49.2 | 24 | 24.6 | 6.8 | 18.3 | 69.9 | 6.5 | M8 x 1 | 35000 | 23200 |
| HC210-29 | 90 | 62.7 | 49.2 | 24 | 24.6 | 6.8 | 18.3 | 69.9 | 6.5 | 5/16-24UNF | 35000 | 23200 | |
| HC210-30 | 90 | 62.7 | 49.2 | 24 | 24.6 | 6.8 | 18.3 | 69.9 | 6.5 | 5/16-24UNF | 35000 | 23200 | |
| HC210-31 | 90 | 62.7 | 49.2 | 24 | 24.6 | 6.8 | 18.3 | 69.9 | 6.5 | 5/16-24UNF | 35000 | 23200 | |
| HC210-32 | 90 | 62.7 | 49.2 | 24 | 24.6 | 6.8 | 18.3 | 69.9 | 6.5 | 5/16-24UNF | 35000 | 23200 | |
| HC211 | 55 | 100 | 71.4 | 55.5 | 25 | 27.8 | 8 | 20.7 | 76.2 | 7 | M10 X1 | 43500 | 29200 |
| HC211-32 | 100 | 71.4 | 55.5 | 25 | 27.8 | 8 | 20.7 | 76.2 | 7 | 3/8-24unf | 43500 | 29200 | |
| HC211-33 | 100 | 71.4 | 55.5 | 25 | 27.8 | 8 | 20.7 | 76.2 | 7 | 3/8-24unf | 43500 | 29200 | |
| HC211-34 | 100 | 71.4 | 55.5 | 25 | 27.8 | 8 | 20.7 | 76.2 | 7 | 3/8-24unf | 43500 | 29200 | |
| HC211-35 | 100 | 71.4 | 55.5 | 25 | 27.8 | 8 | 20.7 | 76.2 | 7 | 3/8-24unf | 43500 | 29200 | |
| HC212 | 60 | 110 | 77.8 | 61.9 | 27 | 31 | 8 | 22.3 | 84.2 | 7.6 | M10 X1 | 47700 | 32900 |
| HC212-36 | 110 | 77.8 | 61.9 | 27 | 31 | 8 | 22.3 | 84.2 | 7.6 | 3/8-24unf | 47700 | 32900 | |
| HC212-37 | 110 | 77.8 | 61.9 | 27 | 31 | 8 | 22.3 | 84.2 | 7.6 | 3/8-24unf | 47700 | 32900 | |
| HC212-38 | 110 | 77.8 | 61.9 | 27 | 31 | 8 | 22.3 | 84.2 | 7.6 | 3/8-24unf | 47700 | 32900 | |
| HC212-39 | 110 | 77.8 | 61.9 | 27 | 31 | 8 | 22.3 | 84.2 | 7.6 | 3/8-24unf | 47700 | 32900 | |
| HC213 | 65 | 120 | 85.7 | 68.6 | 28 | 34.1 | 8.5 | 23.5 | 86 | 8.5 | M10 X1 | 57500 | 40000 |
| HC213-40 | 120 | 85.7 | 68.6 | 28 | 34.1 | 8.5 | 23.5 | 86 | 8.5 | 3/8-24unf | 57500 | 40000 | |
| HC213-41 | 120 | 85.7 | 68.6 | 28 | 34.1 | 8.5 | 23.5 | 86 | 8.5 | 3/8-24unf | 57500 | 40000 | |
| HC214 | 70 | 125 | 85.7 | 68.6 | 29 | 34.1 | 8.5 | 23.5 | 90 | 8.9 | M10 X1 | 60800 | 45000 |
| HC214-42 | 125 | 85.7 | 68.6 | 29 | 34.1 | 8.5 | 23.5 | 90 | 8.9 | 3/8-24unf | 60800 | 45000 | |
| HC214-43 | 125 | 85.7 | 68.6 | 29 | 34.1 | 8.5 | 23.5 | 90 | 8.9 | 3/8-24unf | 60800 | 45000 | |
| HC214-44 | 125 | 85.7 | 68.6 | 29 | 34.1 | 8.5 | 23.5 | 90 | 8.9 | 3/8-24unf | 60800 | 45000 | |
| HC215 | 75 | 130 | 92.1 | 75 | 30 | 37.3 | 8.5 | 23.5 | 102 | 9.2 | M10 X1 | 66000 | 49500 |
| HC215-45 | 130 | 92.1 | 75 | 30 | 37.3 | 8.5 | 23.5 | 102 | 9.2 | 3/8-24unf | 66000 | 49500 | |
| HC215-46 | 130 | 92.1 | 75 | 30 | 37.3 | 8.5 | 23.5 | 102 | 9.2 | 3/8-24unf | 66000 | 49500 | |
| HC215-47 | 130 | 92.1 | 75 | 30 | 37.3 | 8.5 | 23.5 | 102 | 9.2 | 3/8-24unf | 66000 | 49500 | |
| HC215-48 | 130 | 92.1 | 75 | 30 | 37.3 | 8.5 | 23.5 | 102 | 9.2 | 3/8-24unf | 66000 | 49500 | |
| Masukkan galas: UK200, 300 | |||||||||||
| Tidak mengandungi | Diameter aci d | Dimensi (mm) | Penilaian beban dinamik n | Penilaian beban statik n | |||||||
| D | L | d | Bi | Menjadi | T | y | w | ||||
| UK205 | 20 | 52 | 35 | 25 | 23 | 17 | 4.5 | 8 | 38 | 1100 | 710 |
| UK206 | 25 | 62 | 38 | 30 | 26 | 19 | 5.1 | 8 | 45 | 1540 | 1020 |
| UK207 | 30 | 72 | 43 | 35 | 27 | 20 | 5.8 | 9 | 52 | 2030 | 1400 |
| UK208 | 35 | 80 | 46 | 40 | 29 | 21 | 6.2 | 10 | 58 | 2300 | 1600 |
| UK209 | 40 | 85 | 50 | 45 | 30 | 22 | 6.5 | 11 | 65 | 2560 | 1810 |
| UK210 | 45 | 90 | 55 | 50 | 31 | 23 | 6.5 | 12 | 70 | 2750 | 2020 |
| UK211 | 50 | 100 | 59 | 55 | 33 | 24 | 7.3 | 12 | 75 | 3400 | 2550 |
| UK212 | 55 | 110 | 62 | 60 | 36 | 26 | 7.7 | 13 | 80 | 4100 | 3150 |
| UK213 | 60 | 120 | 65 | 65 | 38 | 27 | 8.3 | 14 | 85 | 4480 | 3470 |
| UK215 | 65 | 130 | 73 | 75 | 41 | 30 | 9.2 | 15 | 98 | 5200 | 4200 |
| UK216 | 70 | 140 | 78 | 80 | 44 | 32 | 9.6 | 17 | 105 | 5700 | 4550 |
| UK217 | 75 | 150 | 82 | 85 | 46 | 34 | 10.5 | 18 | 110 | 6600 | 5320 |
| UK218 | 80 | 160 | 86 | 90 | 49 | 36 | 11.1 | 18 | 120 | 7550 | 6170 |
| UK305 | 20 | 62 | 35 | 25 | 26 | 21 | 6.1 | 8 | 38 | 2170 | 1120 |
| UK306 | 25 | 72 | 38 | 30 | 29 | 23 | 6.7 | 8 | 45 | 2730 | 1530 |
| UK307 | 30 | 80 | 43 | 35 | 31 | 25 | 7.4 | 9 | 52 | 3400 | 1960 |
| UK308 | 35 | 90 | 46 | 40 | 34 | 27 | 8.2 | 10 | 58 | 4150 | 2440 |
| UK309 | 40 | 100 | 50 | 45 | 37 | 30 | 9 | 11 | 65 | 5250 | 3000 |
| UK310 | 45 | 110 | 55 | 50 | 40 | 32 | 10 | 12 | 70 | 6300 | 3900 |
| UK311 | 50 | 120 | 59 | 55 | 43 | 34 | 10.7 | 12 | 75 | 7300 | 4600 |
| UK312 | 55 | 130 | 62 | 60 | 46 | 36 | 11.5 | 13 | 80 | 8300 | 5300 |
| UK313 | 60 | 140 | 65 | 65 | 48 | 38 | 12.2 | 14 | 85 | 9450 | 6100 |
| UK315 | 65 | 160 | 73 | 75 | 54 | 42 | 13.8 | 15 | 98 | 11600 | 7800 |
| UK316 | 70 | 170 | 78 | 80 | 57 | 44 | 14.5 | 17 | 105 | 12500 | 8800 |
| UK317 | 75 | 180 | 82 | 85 | 60 | 46 | 15 | 18 | 110 | 13500 | 9800 |
| UK318 | 80 | 190 | 86 | 90 | 63 | 48 | 15.9 | 18 | 120 | 14600 | 10900 |
| UK319 | 85 | 200 | 90 | 95 | 66 | 50 | 16.7 | 19 | 125 | 15600 | 12100 |
| UK320 | 90 | 215 | 97 | 100 | 72 | 54 | 18 | 20 | 130 | 17700 | 14300 |
| UK322 | 100 | 240 | 105 | 110 | 80 | 60 | 21 | 21 | 145 | 20900 | 18200 |
| UK324 | 110 | 260 | 112 | 120 | 86 | 64 | 22 | 22 | 155 | 21100 | 18900 |
| UK326 | 115 | 280 | 121 | 130 | 92 | 68 | 23 | 23 | 165 | 23400 | 21900 |
| UK328 | 125 | 300 | 131 | 140 | 98 | 73 | 25 | 24 | 180 | 26000 | 25100 |
| Masukkan galas: dalam | ||||||||||||
| No. | Aci dia | Dimensi mm dalam. | Penilaian beban dinamik n | Penilaian beban statik n | ||||||||
| mm | D | B1 | B | C | S | G | B5 | d3 | ds | |||
| SA201 | 12 | 40 | 28.6 | 19.1 | 12 | 6 | 5 | 13.5 | 28.6 | M6x 0.75 | 9600 | 4600 |
| SA201-8 | 40 | 28.6 | 19.1 | 12 | 6 | 5 | 13.5 | 28.6 | 1/4-28UNF | 9600 | 4600 | |
| SA202 | 15 | 40 | 28.6 | 19.1 | 12 | 6 | 5 | 13.5 | 28.6 | M6x0.75 | 9600 | 4600 |
| SA202-9 | 40 | 28.6 | 19.1 | 12 | 6 | 5 | 13.5 | 28.6 | 1/4-28UNF | 9600 | 4600 | |
| SA202-10 | 40 | 28.6 | 19.1 | 12 | 6 | 5 | 13.5 | 28.6 | 1/4-28UNF | 9600 | 4600 | |
| SA203 | 17 | 40 | 28.6 | 19.1 | 12 | 6 | 5 | 13.5 | 28.6 | M6x 0.75 | 9600 | 4600 |
| SA203-11 | 40 | 28.6 | 19.1 | 12 | 6 | 5 | 13.5 | 28.6 | 1/4-28UNF | 9600 | 4600 | |
| SA204 | 20 | 47 | 29.5 | 20 | 14 | 7.5 | 5 | 13.5 | 33.3 | M6x 0.75 | 12800 | 6650 |
| SA204-12 | 47 | 29.5 | 20 | 14 | 7.5 | 5 | 13.5 | 33.3 | 1/4-28UNF | 12800 | 6650 | |
| SA205 | 25 | 52 | 30.5 | 21 | 15 | 7.5 | 5 | 13.5 | 38.1 | M6x0.75 | 14000 | 7850 |
| SA205-13 | 52 | 30.5 | 21 | 15 | 7.5 | 5 | 13.5 | 38.1 | 1/4-28UNF | 14000 | 7850 | |
| SA205-14 | 52 | 30.5 | 21 | 15 | 7.5 | 5 | 13.5 | 38.1 | 1/4-28UNF | 14000 | 7850 | |
| SA205-15 | 52 | 30.5 | 21 | 15 | 7.5 | 5 | 13.5 | 38.1 | 1/4-28UNF | 14000 | 7850 | |
| SA205-16 | 52 | 30.5 | 21 | 15 | 7.5 | 5 | 13.5 | 38.1 | 1/4-28UNF | 14000 | 7850 | |
| SA206 | 30 | 62 | 33.9 | 22 | 16 | 8 | 6 | 15.9 | 44.5 | M8X1 | 19500 | 11300 |
| SA206-17 | 62 | 33.9 | 22 | 16 | 8 | 6 | 15.9 | 44.5 | 5/16-24UNF | 19500 | 11300 | |
| SA206-18 | 62 | 33.9 | 22 | 16 | 8 | 6 | 15.9 | 44.5 | 5/16-24UNF | 19500 | 11300 | |
| SA206-19 | 62 | 33.9 | 22 | 16 | 8 | 6 | 15.9 | 44.5 | 5/16-24UNF | 19500 | 11300 | |
| SA206-20 | 62 | 33.9 | 22 | 16 | 8 | 6 | 15.9 | 44.5 | 5/16-24UNF | 19500 | 11300 | |
| SA207 | 35 | 72 | 36.5 | 23 | 17 | 8.5 | 6.5 | 17.5 | 55.6 | M8X1 | 25700 | 15300 |
| SA207-20 | 72 | 36.5 | 23 | 17 | 8.5 | 6.5 | 17.5 | 55.6 | 5/16-24UNF | 25700 | 15300 | |
| SA207-21 | 72 | 36.5 | 23 | 17 | 8.5 | 6.5 | 17.5 | 55.6 | 5/16-24UNF | 25700 | 15300 | |
| SA207-22 | 72 | 36.5 | 23 | 17 | 8.5 | 6.5 | 17.5 | 55.6 | 5/16-24UNF | 25700 | 15300 | |
| SA207-23 | 72 | 36.5 | 23 | 17 | 8.5 | 6.5 | 17.5 | 55.6 | 5/16-24UNF | 25700 | 15300 | |
| SA208 | 40 | 80 | 40.5 | 27 | 18 | 9 | 6.5 | 18.3 | 60.3 | M8X1 | 29500 | 18100 |
| SA208-24 | 80 | 40.5 | 27 | 18 | 9 | 6.5 | 18.3 | 60.3 | 5/16-24UNF | 29500 | 18100 | |
| SA208-25 | 80 | 40.5 | 27 | 18 | 9 | 6.5 | 18.3 | 60.3 | 5/16-24UNF | 29500 | 18100 | |
| SA209 | 45 | 85 | 43.7 | 30.2 | 19 | 11 | 6.8 | 18.3 | 63.5 | M8X1 | 31600 | 20600 |
| SA209-26 | 85 | 43.7 | 30.2 | 19 | 11 | 6.8 | 18.3 | 63.5 | 5/16-24UNF | 31600 | 20600 | |
| SA209-27 | 85 | 43.7 | 30.2 | 19 | 11 | 6.8 | 18.3 | 63.5 | 5/16-24UNF | 31600 | 20600 | |
| SA209-28 | 85 | 43.7 | 30.2 | 19 | 11 | 6.8 | 18.3 | 63.5 | 5/16-24UNF | 31600 | 20600 | |
| SA210 | 50 | 90 | 43.7 | 30.2 | 20 | 11 | 6.5 | 18.3 | 69.9 | M8X1 | 35000 | 23200 |
| SA210-29 | 50 | 90 | 43.7 | 30.2 | 20 | 11 | 6.5 | 18.3 | 69.9 | M8X1 | 35000 | 23200 |
| SA210-30 | 90 | 43.7 | 30.2 | 20 | 11 | 6.5 | 18.3 | 69.9 | 5/16-24UNF | 35000 | 23200 | |
| SA210-31 | 90 | 43.7 | 30.2 | 20 | 11 | 6.5 | 18.3 | 69.9 | 5/16-24UNF | 35000 | 23200 | |
| SA210-32 | 90 | 43.7 | 30.2 | 20 | 11 | 6.5 | 18.3 | 69.9 | 5/16-24UNF | 35000 | 23200 | |
| SA211 | 55 | 100 | 48.4 | 32.4 | 21 | 12 | 8 | 20.7 | 76.2 | M8X1 | 43500 | 29200 |
| SA211-32 | 100 | 48.4 | 32.4 | 21 | 12 | 8 | 20.7 | 76.2 | M8X1 | 43500 | 29200 | |
| SA211-33 | 100 | 48.4 | 32.4 | 21 | 12 | 8 | 20.7 | 76.2 | 3/8-24unf | 43500 | 29200 | |
| SA211-34 | 100 | 48.4 | 32.4 | 21 | 12 | 8 | 20.7 | 76.2 | 3/8-24unf | 43500 | 29200 | |
| SA211-35 | 100 | 48.4 | 32.4 | 21 | 12 | 8 | 20.7 | 76.2 | 3/8-24unf | 43500 | 29200 | |
| SA212 | 60 | 110 | 53.1 | 37.2 | 22 | 13.5 | 8 | 22.3 | 84.2 | M10X1.25 | 47700 | 32900 |
| SA212-36 | 110 | 53.1 | 37.2 | 22 | 13.5 | 8 | 22.3 | 84.2 | 3/8 -24UNF | 47700 | 32900 | |
| SA212-37 | 110 | 53.1 | 37.2 | 22 | 13.5 | 8 | 22.3 | 84.2 | 3/8 -24UNF | 47700 | 32900 | |
| SA212-38 | 110 | 53.1 | 37.2 | 22 | 13.5 | 8 | 22.3 | 84.2 | 3/8 -24UNF | 47700 | 32900 | |
| SA212-39 | 110 | 53.1 | 37.2 | 22 | 13.5 | 8 | 22.3 | 84.2 | 3/8 -24UNF | 47700 | 32900 | |
| Masukkan galas: sb | ||||||||||
| No. | Aci dia d | Dimensi (mm) | Dinamik | Statik | ||||||
| (mm) | D | B | C | S | S1 | G | ds | penarafan beban n | penarafan beban n | |
| SB201 | 12 | 40 | 22 | 12 | 6 | 16 | 4.5 | M50.8 | 9600 | 4600 |
| SB201-8 | 40 | 22 | 12 | 6 | 16 | 4.5 | 10-32Uf | 9600 | 4600 | |
| SB202 | 15 | 40 | 22 | 12 | 6 | 16 | 4.5 | M5 x 0.8 | 9600 | 4600 |
| SB202-9 | 40 | 22 | 12 | 6 | 16 | 4.5 | 10-32Uf | 9600 | 4600 | |
| SB202-10 | 40 | 22 | 12 | 6 | 16 | 4.5 | 10-32Uf | 9600 | 4600 | |
| SB203 | 17 | 40 | 22 | 12 | 6 | 16 | 4.5 | M5 x 0.8 | 9600 | 4600 |
| SB203-11 | 40 | 22 | 12 | 6 | 16 | 4.5 | 10-32Uf | 9600 | 4600 | |
| SB204 | 20 | 47 | 25 | 14 | 7 | 18 | 4.5 | M6x1 | 12800 | 6650 |
| SB204-12 | 47 | 25 | 14 | 7 | 18 | 4.5 | 1/4-28UNF | 12800 | 6650 | |
| SB205 | 25 | 52 | 27 | 15 | 7.5 | 19.5 | 5.5 | M6x1 | 14000 | 7850 |
| SB205-13 | 52 | 27 | 15 | 7.5 | 19.5 | 5.5 | 1/4-28UNF | 14000 | 7850 | |
| SB205-14 | 52 | 27 | 15 | 7.5 | 19.5 | 5.5 | 1/4-28UNF | 14000 | 7850 | |
| SB205-15 | 52 | 27 | 15 | 7.5 | 19.5 | 5.5 | 1/4-28UNF | 14000 | 7850 | |
| SB205-16 | 52 | 27 | 15 | 7.5 | 19.5 | 5.5 | 1/4-28UNF | 14000 | 7850 | |
| SB206 | 30 | 62 | 30 | 16 | 8 | 22 | 6 | M6x1 | 19500 | 11300 |
| SB206-17 | 62 | 30 | 16 | 8 | 22 | 6 | 1/4-28UNF | 19500 | 11300 | |
| SB206-18 | 62 | 30 | 16 | 8 | 22 | 6 | 1/4-28UNF | 19500 | 11300 | |
| SB206-19 | 62 | 30 | 16 | 8 | 22 | 6 | 1/4-28UNF | 19500 | 11300 | |
| SB206-20 | 62 | 30 | 16 | 8 | 22 | 6 | 1/4-28UNF | 19500 | 11300 | |
| SB207 | 35 | 72 | 32 | 17 | 8.5 | 23.5 | 6.5 | M81 | 25700 | 15300 |
| SB207-20 | 72 | 32 | 17 | 8.5 | 23.5 | 6.5 | 5/16-24UNF | 25700 | 15300 | |
| SB207-21 | 72 | 32 | 17 | 8.5 | 23.5 | 6.5 | 5/16-24UNF | 25700 | 15300 | |
| SB207-22 | 72 | 32 | 17 | 8.5 | 23.5 | 6.5 | 5/16-24UNF | 25700 | 15300 | |
| SB207-23 | 72 | 32 | 17 | 8.5 | 23.5 | 6.5 | 5/16-24UNF | 25700 | 15300 | |
| SB208 | 40 | 80 | 34 | 18 | 9 | 25 | 7 | M8X1 | 29500 | 18100 |
| SB208-24 | 80 | 34 | 18 | 9 | 25 | 7 | 5/16-24UNF | 29500 | 18100 | |
| SB208-25 | 80 | 34 | 18 | 9 | 25 | 7 | 5/16-24UNF | 29500 | 18100 | |
| SB209 | 45 | 85 | 41.2 | 19 | 10.2 | 31 | 8.2 | M8X1 | 31600 | 20600 |
| SB209-26 | 85 | 41.2 | 19 | 10.2 | 31 | 8.2 | 5/16-24UNF | 31600 | 20600 | |
| SB209-27 | 85 | 41.2 | 19 | 10.2 | 31 | 8.2 | 5/16-24UNF | 31600 | 20600 | |
| SB209-28 | 85 | 41.2 | 19 | 10.2 | 31 | 8.2 | 5/16-24UNF | 31600 | 20600 | |
| SB210 | 50 | 90 | 43.5 | 20 | 10.9 | 32.6 | 9.2 | M10X1 | 35000 | 23200 |
| SB210-29 | 90 | 43.5 | 20 | 10.9 | 32.6 | 9.2 | 3/8-24unf | 35000 | 23200 | |
| SB210-30 | 90 | 43.5 | 20 | 10.9 | 32.6 | 9.2 | 3/8-24unf | 35000 | 23200 | |
| SB210-31 | 90 | 43.5 | 20 | 10.9 | 32.6 | 9.2 | 3/8-24unf | 35000 | 23200 | |
| SB210-32 | 90 | 43.5 | 20 | 10.9 | 32.6 | 9.2 | 3/8-24unf | 35000 | 23200 | |
| SB211 | 55 | 100 | 45.3 | 21 | 11.8 | 33.5 | 9.8 | M10x 1 | 43500 | 29200 |
| SB211-32 | 100 | 45.3 | 21 | 11.8 | 33.5 | 9.8 | 3/8-24unf | 43500 | 29200 | |
| SB211-33 | 100 | 45.3 | 21 | 11.8 | 33.5 | 9.8 | 3/8-24unf | 43500 | 29200 | |
| SB211-34 | 100 | 45.3 | 21 | 11.8 | 33.5 | 9.8 | 3/8-24unf | 43500 | 29200 | |
| SB211-35 | 100 | 45.3 | 21 | 11.8 | 33.5 | 9.8 | 3/8-24unf | 43500 | 29200 | |
| SB212 | 60 | 110 | 53.7 | 22 | 14.9 | 38.8 | 9.8 | M10X1 | 47700 | 32900 |
| SB212-36 | 110 | 53.7 | 22 | 14.9 | 38.8 | 9.8 | 3/8 -24UNF | 47700 | 32900 | |
| SB212-37 | 110 | 53.7 | 22 | 14.9 | 38.8 | 9.8 | 3/8 -24UNF | 47700 | 32900 | |
| SB212-38 | 110 | 53.7 | 22 | 14.9 | 38.8 | 9.8 | 3/8 -24UNF | 47700 | 32900 | |
| SB212-39 | 110 | 53.7 | 22 | 14.9 | 38.8 | 9.8 | 3/8 -24UNF | 47700 | 32900 | |
| Masukkan galas: Ser | ||||||||||||||
| No. | Aci dia d | Dimensi (mm) | Penilaian beban dinamik n | Penilaian beban statik n | ||||||||||
| mm | D | B | C | S | S1 | T | F | J | P | G | ds | |||
| Ser201 | 12 | 47 | 31 | 16 | 12.7 | 18.3 | 1.07 | 4 | 2 | 52.5 | 4.5 | M6x0.75 | 12800 | 6650 |
| Ser201-8 | 47 | 31 | 16 | 12.7 | 18.3 | 1.07 | 4 | 2 | 52.5 | 4.5 | 1/4-28UNF | 12800 | 6650 | |
| Ser202 | 15 | 47 | 31 | 16 | 12.7 | 18.3 | 1.07 | 4 | 2 | 52.5 | 4.5 | M6x0.75 | 12800 | 6650 |
| Ser202-10 | 47 | 31 | 16 | 12.7 | 18.3 | 1.07 | 4 | 2 | 52.5 | 4.5 | 1/4-28UNF | 12800 | 6650 | |
| Ser203 | 17 | 47 | 31 | 16 | 12.7 | 18.3 | 1.07 | 4 | 2 | 52.5 | 4.5 | M6x0.75 | 12800 | 6650 |
| Ser203-11 | 47 | 31 | 16 | 12.7 | 18.3 | 1.07 | 4 | 2 | 52.5 | 4.5 | 1/4-28UNF | 12800 | 6650 | |
| Ser204 | 20 | 47 | 31 | 16 | 12.7 | 18.3 | 1.07 | 4 | 2 | 52.5 | 4.5 | M6x0.75 | 12800 | 6650 |
| Ser204-12 | 47 | 31 | 16 | 12.7 | 18.3 | 1.07 | 4 | 2 | 52.5 | 4.5 | 1/4-28UNF | 12800 | 6650 | |
| Ser205 | 25 | 52 | 34.9 | 19 | 14.3 | 20.6 | 1.07 | 5 | 2.4 | 57.7 | 5 | M6x0.75 | 14000 | 7850 |
| Ser205-13 | 52 | 34.9 | 19 | 14.3 | 20.6 | 1.07 | 5 | 2.4 | 57.7 | 5 | 1/4-28UNF | 14000 | 7850 | |
| Ser205-14 | 52 | 34.9 | 19 | 14.3 | 20.6 | 1.07 | 5 | 2.4 | 57.7 | 5 | 1/4-28UNF | 14000 | 7850 | |
| Ser205-15 | 52 | 34.9 | 19 | 14.3 | 20.6 | 1.07 | 5 | 2.4 | 57.7 | 5 | 1/4-28UNF | 14000 | 7850 | |
| Ser205-16 | 52 | 34.9 | 19 | 14.3 | 20.6 | 1.07 | 5 | 2.4 | 57.7 | 5 | 1/4-28UNF | 14000 | 7850 | |
| Ser206 | 30 | 62 | 38.1 | 22 | 15.9 | 22.2 | 1.65 | 5.5 | 3.2 | 67.5 | 5 | M6x0.75 | 19500 | 11300 |
| Ser206-17 | 62 | 38.1 | 22 | 15.9 | 22.2 | 1.65 | 5.5 | 3.2 | 67.5 | 5 | 1/4-28UNF | 19500 | 11300 | |
| Ser206-18 | 62 | 38.1 | 22 | 15.9 | 22.2 | 1.65 | 5.5 | 3.2 | 67.5 | 5 | 1/4-28UNF | 19500 | 11300 | |
| Ser206-19 | 62 | 38.1 | 22 | 15.9 | 22.2 | 1.65 | 5.5 | 3.2 | 67.5 | 5 | 1/4-28UNF | 19500 | 11300 | |
| Ser206-20 | 62 | 38.1 | 22 | 15.9 | 22.2 | 1.65 | 5.5 | 3.2 | 67.5 | 5 | 1/4-28UNF | 19500 | 11300 | |
| Ser207 | 35 | 72 | 42.9 | 24 | 17.5 | 25.4 | 1.65 | 5.5 | 3.2 | 78.4 | 6 | M8X1 | 25700 | 15300 |
| Ser207-20 | 72 | 42.9 | 24 | 17.5 | 25.4 | 1.65 | 5.5 | 3.2 | 78.4 | 6 | 5/16-24UNF | 25700 | 15300 | |
| Ser207-21 | 72 | 42.9 | 24 | 17.5 | 25.4 | 1.65 | 5.5 | 3.2 | 78.4 | 6 | 5/16-24UNF | 25700 | 15300 | |
| Ser207-22 | 72 | 42.9 | 24 | 17.5 | 25.4 | 1.65 | 5.5 | 3.2 | 78.4 | 6 | 5/16-24UNF | 25700 | 15300 | |
| Ser207-23 | 72 | 42.9 | 24 | 17.5 | 25.4 | 1.65 | 5.5 | 3.2 | 78.4 | 6 | 5/16-24UNF | 25700 | 15300 | |
| Ser208 | 40 | 80 | 49.2 | 28 | 19 | 30.2 | 1.65 | 6 | 3.2 | 86.4 | 8 | M8X1 | 29500 | 18100 |
| Ser208-24 | 80 | 49.2 | 28 | 19 | 30.2 | 1.65 | 6 | 3.2 | 86.4 | 8 | 5/16-24UNF | 29500 | 18100 | |
| Ser208-25 | 80 | 49.2 | 28 | 19 | 30.2 | 1.65 | 6 | 3.2 | 86.4 | 8 | 5/16-24UNF | 29500 | 18100 | |
| Ser209 | 45 | 85 | 49.2 | 28 | 19 | 30.2 | 1.65 | 6 | 3.2 | 91.4 | 8 | M8X1 | 31600 | 20600 |
| Ser209-26 | 85 | 49.2 | 28 | 19 | 30.2 | 1.65 | 6 | 3.2 | 91.4 | 8 | 5/16-24UNF | 31600 | 20600 | |
| Ser209-27 | 85 | 49.2 | 28 | 19 | 30.2 | 1.65 | 6 | 3.2 | 91.4 | 8 | 5/16-24UNF | 31600 | 20600 | |
| Ser209-28 | 85 | 49.2 | 28 | 19 | 30.2 | 1.65 | 6 | 3.2 | 91.4 | 8 | 5/16-24UNF | 31600 | 20600 | |
| Ser210 | 50 | 90 | 51.6 | 28 | 19 | 32.6 | 2.41 | 7.5 | 3.2 | 96.3 | 9 | M10X1.25 | 35000 | 23200 |
| Ser210-29 | 90 | 51.6 | 28 | 19 | 32.6 | 2.41 | 7.5 | 3.2 | 96.3 | 9 | 3/8-24unf | 35000 | 23200 | |
| Ser210-30 | 90 | 51.6 | 28 | 19 | 32.6 | 2.41 | 7.5 | 3.2 | 96.3 | 9 | 3/8-24unf | 35000 | 23200 | |
| Ser210-31 | 90 | 51.6 | 28 | 19 | 32.6 | 2.41 | 7.5 | 3.2 | 96.3 | 9 | 3/8-24unf | 35000 | 23200 | |
| Ser210-32 | 90 | 51.6 | 28 | 19 | 32.6 | 2.41 | 7.5 | 3.2 | 96.3 | 9 | 3/8-24unf | 35000 | 23200 | |
| Ser211 | 55 | 100 | 55.6 | 30 | 22.2 | 33.4 | 2.41 | 7.5 | 3.2 | 106 | 9 | M10X1.25 | 43500 | 29200 |
| Ser211-32 | 100 | 55.6 | 30 | 22.2 | 33.4 | 2.41 | 7.5 | 3.2 | 106 | 9 | 3/8-24unf | 43500 | 29200 | |
| Ser211-33 | 100 | 55.6 | 30 | 22.2 | 33.4 | 2.41 | 7.5 | 3.2 | 106 | 9 | 3/8-24unf | 43500 | 29200 | |
| Ser211-34 | 100 | 55.6 | 30 | 22.2 | 33.4 | 2.41 | 7.5 | 3.2 | 106 | 9 | 3/8-24unf | 43500 | 29200 | |
| Ser211-35 | 100 | 55.6 | 30 | 22.2 | 33.4 | 2.41 | 7.5 | 3.2 | 106 | 9 | 3/8-24unf | 43500 | 29200 | |
| Ser212 | 60 | 110 | 65.1 | 32 | 25.4 | 39.7 | 2.41 | 7.5 | 3.28 | 116 | 10 | M10X1.25 | 47700 | 32900 |
| Ser212-36 | 110 | 65.1 | 32 | 25.4 | 39.7 | 2.41 | 7.5 | 3.28 | 116 | 10 | 3/8-24unf | 47700 | 32900 | |
| Ser212-37 | 110 | 65.1 | 32 | 25.4 | 39.7 | 2.41 | 7.5 | 3.28 | 116 | 10 | 3/8-24unf | 47700 | 32900 | |
| Ser212-38 | 110 | 65.1 | 32 | 25.4 | 39.7 | 2.41 | 7.5 | 3.28 | 116 | 10 | 3/8-24unf | 47700 | 32900 | |
| Ser212-39 | 110 | 65.1 | 32 | 25.4 | 39.7 | 2.41 | 7.5 | 3.28 | 116 | 10 | 3/8-24unf | 47700 | 32900 | |
| Masukkan galas: SC200 | ||||||
| No. | Aci dia d | Dimensi | Penilaian Beban Asas (kg) | Asas stat i c beban tikus i ng (kg) | ||
| (mm) | ||||||
| (mm) | D | Be = dengan | ||||
| SC203 | 17 | 40 | 12 | 780 | 454 | |
| SC204 | 20 | 47 | 14 | 1010 | 630 | |
| SC205 | 25 | 52 | 15 | 1100 | 710 | |
| SC206 | 30 | 62 | 16 | 1550 | 1020 | |
| SC207 | 35 | 72 | 1 1 | 2030 | 1400 | |
| SC208 | 40 | 80 | 18 | 2300 | 1600 | |
| SC209 | 45 | 85 | 19 | 2570 | 1810 | |
| SC210 | 50 | 90 | 20 | 2760 | 2010 | |
| SC21 1 | 55 | 100 | 21 | 3400 | 2550 | |
| SC212 | 60 | 110 | 22 | 4100 | 3150 | |
| Masukkan galas: siri 1726200, 6300 | ||||||
| Item | Saiz | Penilaian Beban Asas | ||||
| Meterai getah | d | Sφd | B | R min | CR Dinamik (n) | Statik cor (n) |
| 1726200-2rs | 10 | 30 | 9 | 0.6 | 5, 100 | 2, 210 |
| 1726300-2rs | 10 | 35 | 11 | 0.6 | 6, 928 | 2, 933 |
| 1726201-2rs | 12 | 32 | 10 | 0.6 | 5, 908 | 2, 635 |
| 1726301-2RS | 12 | 37 | 12 | 1 | 8, 203 | 3, 528 |
| 1726202-2rs | 15 | 35 | 11 | 0.6 | 6, 630 | 3, 188 |
| 1726302-2rs | 15 | 42 | 13 | 1 | 9, 690 | 4, 590 |
| 1726203-2RS | 17 | 40 | 12 | 0.6 | 8, 075 | 4, 038 |
| 1726303-2rs | 17 | 47 | 14 | 1 | 11, 390 | 5, 568 |
| 1726204-2rs | 20 | 47 | 14 | 1 | 10, 795 | 5, 568 |
| 1726304-2rs | 20 | 52 | 15 | 1.1 | 13, 600 | 6, 630 |
| 1726205-2rs | 25 | 52 | 15 | 1 | 11, 900 | 6, 630 |
| 1726305-2rs | 25 | 62 | 17 | 1.1 | 19, 040 | 9, 690 |
| 1726206-2rs | 30 | 62 | 16 | 1 | 16, 405 | 9, 520 |
| 1726306-2rs | 30 | 72 | 19 | 1.1 | 24, 650 | 13, 855 |
| 1726207-2rs | 35 | 72 | 17 | 1.1 | 21, 675 | 13, 005 |
| 1726307-2rs | 35 | 80 | 21 | 1.5 | 28, 475 | 16, 150 |
| 1726208-2rs | 40 | 80 | 18 | 1.1 | 24, 650 | 15, 300 |
| 1726308-2rs | 40 | 90 | 23 | 1.5 | 36, 125 | 21, 250 |
| 1726209-2rs | 45 | 85 | 19 | 1.1 | 26, 350 | 17, 340 |
| 1726309-2rs | 45 | 100 | 25 | 1.5 | 45, 050 | 26, 775 |
| 1726210-2rs | 50 | 90 | 20 | 1.1 | 31, 025 | 20, 400 |
| 1726310-2rs | 50 | 110 | 27 | 2 | 52, 700 | 32, 300 |
| Masukkan galas: CSA200 | ||||||||||||
| Tidak mengandungi | Bore Diam (D) | Dimensi (mm) | Beban dinamik | Beban pegun | ||||||||
| (mm) | D | B | L | C | N | G | ds | K | W | penilaian (kn) | penilaian (kn) | |
| CSA201 | 12 | 40 | 19.1 | 28.6 | 12 | 6 | 5 | M6*0.75 | 13.5 | 28.5 | 7.84 | 3.58 |
| CSA201-8 | 40 | 19.1 | 28.6 | 12 | 6 | 5 | M6*0.75 | 13.5 | 28.5 | 7.84 | 3.58 | |
| CSA202 | 15 | 40 | 19.1 | 28.6 | 12 | 6 | 5 | M6*0.75 | 13.5 | 28.5 | 7.84 | 3.58 |
| CSA202-9 | 40 | 19.1 | 28.6 | 12 | 6 | 5 | M6*0.75 | 13.5 | 28.5 | 7.84 | 3.58 | |
| CSA202-10 | 40 | 19.1 | 28.6 | 12 | 6 | 5 | M6*0.75 | 13.5 | 28.5 | 7.84 | 3.58 | |
| CSA203 | 17 | 40 | 19.1 | 28.6 | 12 | 6 | 5 | M6*0.75 | 13.5 | 28.5 | 7.84 | 3.58 |
| CSA203-11 | 40 | 19.1 | 28.6 | 12 | 6 | 5 | M6*0.75 | 13.5 | 28.5 | 7.84 | 3.58 | |
| CSA204 | 20 | 47 | 21.5 | 31 | 15 | 7.5 | 5 | M6*0.75 | 13.5 | 33.3 | 10.37 | 5.04 |
| CSA204-12 | 47 | 21.5 | 31 | 15 | 7.5 | 5 | M6*0.75 | 13.5 | 33.3 | 10.37 | 5.04 | |
| CSA205 | 25 | 52 | 21.5 | 31 | 15 | 7.5 | 5 | M6*0.75 | 13.5 | 38.1 | 11.31 | 5.97 |
| CSA205-14 | 52 | 21.5 | 31 | 15 | 7.5 | 5 | M6*0.75 | 13.5 | 38.1 | 11.31 | 5.97 | |
| CSA205-15 | 52 | 21.5 | 31 | 15 | 7.5 | 5 | M6*0.75 | 13.5 | 38.1 | 11.31 | 5.97 | |
| CSA205-16 | 52 | 21.5 | 31 | 15 | 7.5 | 5 | M6*0.75 | 13.5 | 38.1 | 11.31 | 5.97 | |
| CSA206 | 30 | 62 | 23.8 | 35.7 | 16 | 8 | 6 | M6*0.75 | 15.9 | 44.5 | 15.73 | 8.64 |
| CSA206-17 | 62 | 23.8 | 35.7 | 16 | 8 | 6 | M6*0.75 | 15.9 | 44.5 | 15.73 | 8.64 | |
| CSA206-18 | 62 | 23.8 | 35.7 | 16 | 8 | 6 | M6*0.75 | 15.9 | 44.5 | 15.73 | 8.64 | |
| CSA206-19 | 62 | 23.8 | 35.7 | 16 | 8 | 6 | M6*0.75 | 15.9 | 44.5 | 15.73 | 8.64 | |
| CSA207 | 35 | 72 | 25.4 | 38.9 | 19 | 9.5 | 6.5 | M8*1.0 | 17.5 | 55.6 | 20.83 | 11.68 |
| CSA207-20 | 72 | 25.4 | 38.9 | 19 | 9.5 | 6.5 | M8*1.0 | 17.5 | 55.6 | 20.83 | 11.68 | |
| CSA207-21 | 72 | 25.4 | 38.9 | 19 | 9.5 | 6.5 | M8*1.0 | 17.5 | 55.6 | 20.83 | 11.68 | |
| CSA207-22 | 72 | 25.4 | 38.9 | 19 | 9.5 | 6.5 | M8*1.0 | 17.5 | 55.6 | 20.83 | 11.68 | |
| CSA207-23 | 72 | 25.4 | 38.9 | 19 | 9.5 | 6.5 | M8*1.0 | 17.5 | 55.6 | 20.83 | 11.68 | |
| CSA208 | 40 | 80 | 30.2 | 43.7 | 22 | 11 | 6.5 | M8*1.0 | 18.3 | 60.3 | 23.55 | 13.6 |
| CSA208-24 | 80 | 30.2 | 43.7 | 22 | 11 | 6.5 | M8*1.0 | 18.3 | 60.3 | 23.55 | 13.6 | |
| CSA208-25 | 80 | 30.2 | 43.7 | 22 | 11 | 6.5 | M8*1.0 | 18.3 | 60.3 | 23.55 | 13.6 | |
| CSA209 | 45 | 85 | 30.2 | 43.7 | 19 | 9.5 | 6.5 | M8*1.0 | 18.3 | 63.5 | 26.44 | 19.56 |
| CSA209-26 | 85 | 30.2 | 43.7 | 19 | 9.5 | 6.5 | M8*1.0 | 18.3 | 63.5 | 26.44 | 19.56 | |
| CSA209-27 | 85 | 30.2 | 43.7 | 19 | 9.5 | 6.5 | M8*1.0 | 18.3 | 63.5 | 26.44 | 19.56 | |
| SA209-28 | 85 | 30.2 | 43.7 | 19 | 9.5 | 6.5 | M8*1.0 | 18.3 | 63.5 | 26.44 | 19.56 | |
| CSA210 | 50 | 90 | 30.2 | 43.7 | 20 | 10 | 6.5 | M10*1.25 | 18.3 | 69.9 | 30.01 | 22.53 |
| CSA210-29 | 90 | 30.2 | 43.7 | 20 | 10 | 6.5 | M10*1.25 | 18.3 | 69.9 | 30.01 | 22.53 | |
| CSA210-30 | 90 | 30.2 | 43.7 | 20 | 10 | 6.5 | M10*1.25 | 18.3 | 69.9 | 30.01 | 22.53 | |
| CSA210-31 | 90 | 30.2 | 43.7 | 20 | 10 | 6.5 | M10*1.25 | 18.3 | 69.9 | 30.01 | 22.53 | |
| CSA210-32 | 90 | 30.2 | 43.7 | 20 | 10 | 6.5 | M10*1.25 | 18.3 | 69.9 | 30.01 | 22.53 | |
| CSA211 | 55 | 100 | 32.5 | 48.4 | 21 | 10.5 | 8 | M10*1.25 | 20.7 | 76.2 | 32.39 | 24 |
| CSA211-32 | 100 | 32.5 | 48.4 | 21 | 10.5 | 8 | M10*1.25 | 20.7 | 76.2 | 32.39 | 24 | |
| CSA211-33 | 100 | 32.5 | 48.4 | 21 | 10.5 | 8 | M10*1.25 | 20.7 | 76.2 | 32.39 | 24 | |
| CSA211-34 | 100 | 32.5 | 48.4 | 21 | 10.5 | 8 | M10*1.25 | 20.7 | 76.2 | 32.39 | 24 | |
| CSA211-35 | 100 | 32.5 | 48.4 | 21 | 10.5 | 8 | M10*1.25 | 20.7 | 76.2 | 32.39 | 24 | |
| CSA212 | 60 | 110 | 37.1 | 53.1 | 22 | 11 | 8 | M10*1.25 | 22.3 | 84.2 | 35.28 | 26.18 |
| CSA212-36 | 110 | 37.1 | 53.1 | 22 | 11 | 8 | M10*1.25 | 22.3 | 84.2 | 35.28 | 26.18 | |
| CSA212-37 | 110 | 37.1 | 53.1 | 22 | 11 | 8 | M10*1.25 | 22.3 | 84.2 | 35.28 | 26.18 | |
| CSA212-38 | 110 | 37.1 | 53.1 | 22 | 11 | 8 | M10*1.25 | 22.3 | 84.2 | 35.28 | 26.18 | |
| CSA212-39 | 110 | 37.1 | 53.1 | 22 | 11 | 8 | M10*1.25 | 22.3 | 84.2 | 35.28 | 26.18 | |
| Masukkan galas: CSB200 | ||||||||||
| Tidak mengandungi | Bore Diam (D) | Dimensi (mm) | Beban dinamik | Beban pegun | ||||||
| (mm) | D | B | C | N | M | G | ds | penilaian (kn) | penilaian (kn) | |
| CSB201 | 12 | 40 | 22 | 12 | 6 | 16 | 4.5 | M5*0.8 | 7.82 | 3.5 |
| CSB201-8 | 40 | 22 | 12 | 6 | 16 | 4.5 | M5*0.8 | 7.82 | 3.5 | |
| CSB202 | 15 | 40 | 22 | 12 | 6 | 16 | 4.5 | M5*0.8 | 7.82 | 3.5 |
| CSB202-9 | 40 | 22 | 12 | 6 | 16 | 4.5 | M5*0.8 | 7.82 | 3.5 | |
| CSB202-10 | 40 | 22 | 12 | 6 | 16 | 4.5 | M5*0.8 | 7.82 | 3.5 | |
| CSB203 | 17 | 40 | 22 | 12 | 6 | 16 | 4.5 | M5*0.8 | 7.82 | 3.5 |
| CSB203-11 | 40 | 22 | 12 | 6 | 16 | 4.5 | M5*0.8 | 7.82 | 3.5 | |
| CSB204 | 20 | 47 | 25 | 14 | 7 | 18 | 4.5 | M6*0.75 | 10.37 | 5.04 |
| CSB204-12 | 47 | 25 | 14 | 7 | 18 | 4.5 | M6*0.75 | 10.37 | 5.04 | |
| CSB205 | 25 | 52 | 27 | 15 | 7.5 | 19.5 | 5 | M6*0.75 | 11.31 | 5.97 |
| CSB205-14 | 52 | 27 | 15 | 7.5 | 19.5 | 5 | M6*0.75 | 11.31 | 5.97 | |
| CSB205-15 | 52 | 27 | 15 | 7.5 | 19.5 | 5 | M6*0.75 | 11.31 | 5.97 | |
| CSB205-16 | 52 | 27 | 15 | 7.5 | 19.5 | 5 | M6*0.75 | 11.31 | 5.97 | |
| CSB206 | 30 | 62 | 30 | 16 | 8 | 22 | 5.5 | M6*0.75 | 15.73 | 8.64 |
| CSB206-17 | 62 | 30 | 16 | 8 | 22 | 5.5 | M6*0.75 | 15.73 | 8.64 | |
| CSB206-18 | 62 | 30 | 16 | 8 | 22 | 5.5 | M6*0.75 | 15.73 | 8.64 | |
| CSB206-19 | 62 | 30 | 16 | 8 | 22 | 5.5 | M6*0.75 | 15.73 | 8.64 | |
| CSB207 | 35 | 72 | 32 | 17 | 8.5 | 23.5 | 6 | M8*1.0 | 20.83 | 11.68 |
| CSB207-20 | 72 | 32 | 17 | 8.5 | 23.5 | 6 | M8*1.0 | 20.83 | 11.68 | |
| CSB207-21 | 72 | 32 | 17 | 8.5 | 23.5 | 6 | M8*1.0 | 20.83 | 11.68 | |
| CSB207-22 | 72 | 32 | 17 | 8.5 | 23.5 | 6 | M8*1.0 | 20.83 | 11.68 | |
| CSB207-23 | 72 | 32 | 17 | 8.5 | 23.5 | 6 | M8*1.0 | 20.83 | 11.68 | |
| CSB208 | 40 | 80 | 34 | 18 | 9 | 25 | 8 | M8*1.0 | 23.55 | 13.6 |
| CSB208-24 | 80 | 34 | 18 | 9 | 25 | 8 | M8*1.0 | 23.55 | 13.6 | |
| CSB208-25 | 80 | 34 | 18 | 9 | 25 | 8 | M8*1.0 | 23.55 | 13.6 | |
| CSB209 | 45 | 85 | 41.2 | 19 | 10.2 | 31 | 8 | M8*1.0 | 26.44 | 19.56 |
| CSB209-26 | 85 | 41.2 | 19 | 10.2 | 31 | 8 | M8*1.0 | 26.44 | 19.56 | |
| CSB209-27 | 85 | 41.2 | 19 | 10.2 | 31 | 8 | M8*1.0 | 26.44 | 19.56 | |
| CSB209-28 | 85 | 41.2 | 19 | 10.2 | 31 | 8 | M8*1.0 | 26.44 | 19.56 | |
| CSB210 | 50 | 90 | 43.5 | 20 | 10.9 | 32.6 | 9 | M8*1.0 | 30.01 | 22.53 |
| CSB210-29 | 90 | 43.5 | 20 | 10.9 | 32.6 | 9 | M8*1.0 | 30.01 | 22.53 | |
| CSB210-30 | 90 | 43.5 | 20 | 10.9 | 32.6 | 9 | M8*1.0 | 30.01 | 22.53 | |
| CSB210-31 | 90 | 43.5 | 20 | 10.9 | 32.6 | 9 | M8*1.0 | 30.01 | 22.53 | |
| CSB210-32 | 90 | 43.5 | 20 | 10.9 | 32.6 | 9 | M8*1.0 | 30.01 | 22.53 | |
| CSB211 | 55 | 100 | 45.3 | 21 | 11.8 | 33.5 | 10 | M10*1.25 | 32.39 | 24 |
| CSB211-32 | 100 | 45.3 | 21 | 11.8 | 33.5 | 10 | M10*1.25 | 32.39 | 24 | |
| CSB211-33 | 100 | 45.3 | 21 | 11.8 | 33.5 | 10 | M10*1.25 | 32.39 | 24 | |
| CSB211-34 | 100 | 45.3 | 21 | 11.8 | 33.5 | 10 | M10*1.25 | 32.39 | 24 | |
| CSB211-35 | 100 | 45.3 | 21 | 11.8 | 33.5 | 10 | M10*1.25 | 32.39 | 24 | |
| CSB212 | 60 | 110 | 53.7 | 22 | 14.9 | 38.8 | 10 | M10*1.25 | 35.28 | 26.18 |
| CSB212-36 | 110 | 53.7 | 22 | 14.9 | 38.8 | 10 | M10*1.25 | 35.28 | 26.18 | |
| CSB212-37 | 110 | 53.7 | 22 | 14.9 | 38.8 | 10 | M10*1.25 | 35.28 | 26.18 | |
| CSB212-38 | 110 | 53.7 | 22 | 14.9 | 38.8 | 10 | M10*1.25 | 35.28 | 26.18 | |
| CSB212-39 | 110 | 53.7 | 22 | 14.9 | 38.8 | 10 | M10*1.25 | 35.28 | 26.18 | |
Mata jualan teras
- Reka bentuk penjajaran diri untuk menampung misalignment aci
- Kilang pra-lubricated dan dimeteraikan untuk kemudahan
- Pemasangan mudah dengan kaedah penguncian berganda
- Operasi bebas penyelenggaraan dalam kebanyakan keadaan
- Tersedia dalam pelbagai saiz dan jenis
- Dilancarkan sepenuhnya dengan jenama global utama
Aplikasi galas
Masukkan galas digunakan secara meluas dalam jentera pertanian, penghantar, mesin tekstil, peralatan pembungkusan, sistem pengudaraan, jentera pemprosesan makanan, dan peralatan pembinaan. Mereka sesuai untuk keadaan operasi yang mencabar kerana keupayaan mereka berfungsi dengan bergantung pada tetapan yang menghakis, lembap, atau berdebu.
Jaminan kualiti
Syarikat BMT mengeluarkan semua galas sisipan di bawah sistem kualiti ISO 9001: 2015. Kawalan toleransi, teknologi pengedap canggih, dan pelinciran premium digunakan dalam pengeluaran setiap galas, untuk memastikan output yang konsisten dan berprestasi tinggi. Setiap galas menjalani pemeriksaan visual, ujian putaran, dan pengesahan dimensi sebelum meninggalkan kilang.
Kebimbangan pelanggan
Pembeli mungkin bimbang tentang keserasian perumahan, kesukaran pemasangan, atau kebolehpercayaan di bawah keadaan yang sukar. Syarikat BMT menangani kebimbangan ini dengan menawarkan galas sisipan standard yang serasi dengan kebanyakan blok bantal dan perumahan flanged, membekalkan panduan pemasangan terperinci, dan menawarkan sokongan teknikal untuk sebarang soalan penggunaan.
Parameter teknikal
| Nombor galas | Diameter dalaman (mm) | Diameter luar (mm) | Lebar (mm) | Kaedah mengunci | Penilaian Beban Dinamik (N) | Penilaian Beban Statik (N) |
| UC201 | 12 | 47 | 31 | Tetapkan skru | 12800 | 6600 |
| UC202 | 15 | 47 | 31 | Tetapkan skru | 13200 | 7000 |
| UC203 | 17 | 47 | 31 | Tetapkan skru | 13600 | 7200 |
| UC204 | 20 | 47 | 31 | Tetapkan skru | 14000 | 7600 |
| UC205 | 25 | 52 | 34 | Tetapkan skru | 17500 | 9500 |
| UC206 | 30 | 62 | 38 | Tetapkan skru | 19500 | 11200 |
| UC207 | 35 | 72 | 42 | Tetapkan skru | 26000 | 15500 |
| UC208 | 40 | 80 | 49 | Tetapkan skru | 30000 | 18000 |
| UC209 | 45 | 85 | 49 | Tetapkan skru | 34000 | 20500 |
| UC210 | 50 | 90 | 51 | Tetapkan skru | 37500 | 22500 |
Kelebihan produk
- Sesuai untuk beban radial dan paksi di kedua -dua arah
- Direka untuk beroperasi dalam suhu dan keadaan yang melampau
- Kaedah mengunci mudah mengurangkan masa pemasangan
- Keupayaan berkelajuan tinggi kerana pemesinan perlumbaan dalaman yang tepat
- Penyelesaian kos efektif dengan selang perkhidmatan lanjutan
Arahan Penggunaan untuk Prestasi
1. Sahkan saiz galas yang betul dan saiz aci kanan.
2. Bersihkan aci dan perumahan sebelum pemasangan.
3. Pasang sisipan masuk ke dalam perumahan dengan tekanan lembut.
4. Menyelaraskan aci, masukkan galas kepadanya.
5. Kencangkan skru set atau mengunci kolar dengan selamat.
6. Putar dengan tangan untuk memastikan operasi yang lancar.
7. Periksa secara berkala untuk lubrasi semula bergantung kepada keadaan penggunaan.
Mengenai BMT
Galas Insert BMT Company menyediakan prestasi yang boleh dipercayai dan mesra penyelenggaraan di pelbagai industri. Mereka adalah pilihan yang unggul untuk peralatan yang memerlukan operasi yang konsisten dan boleh dipercayai dengan pemasangan mudah, pengedap yang sangat baik, dan kehidupan operasi yang panjang. Sama ada digunakan dalam pertanian, pembungkusan, atau pembuatan, ia dapat memenuhi keperluan prestasi anda, sementara itu meminimumkan downtime dan memaksimumkan nilai. Pilih galas ketepatan BMT dan tawarkan peralatan anda dengan prestasi yang luar biasa.
Teg Panas: Masukkan galas
Hantar Pertanyaan
Maklumat Hubungan
-
Alamat
No.183,Longfeng,Barat Zhangting Industrial Zone,Yuyao,Ningbo,China
-
Tel
-
E-mel
Hantar spesifikasi untuk galas perindustrian, galas bola alur yang mendalam, galas roller tirus, dan banyak lagi. Pasukan BMT bertindak balas dalam masa 24 jam dengan harga yang kompetitif untuk galas tahan lama.
