Produk

Galas roller tirus

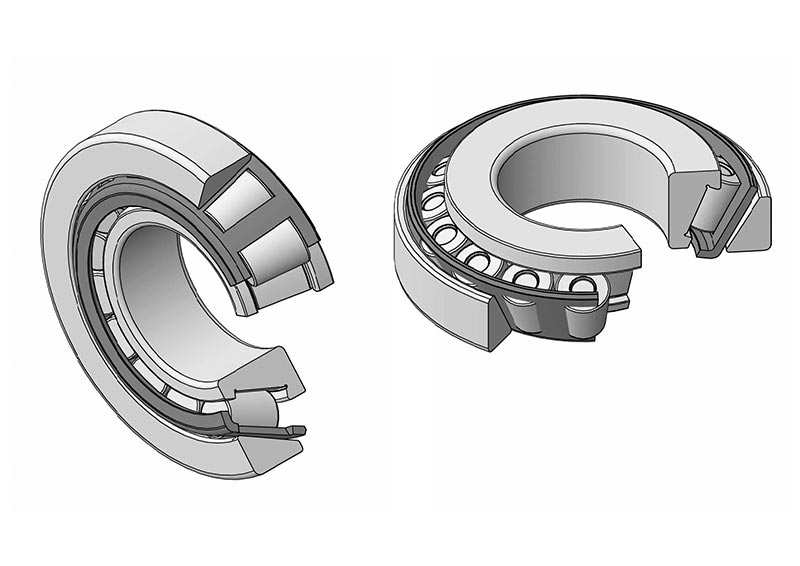

Galas roller tirusdireka dengan empat komponen saling bergantung: kerucut (cincin dalaman), cawan (cincin luar), penggelek tirus, dan sangkar. Mereka biasanya dibekalkan dalam kedua-dua siri metrik dan inci, dengan galas siri inci yang mempunyai peraturan penamaan yang berbeza untuk kon dan cawan (tidak termasuk empat jenis baris).

Berdasarkan sudut kenalan, galas roller metrik dikategorikan ke dalam sudut normal (tiada kod), sudut sederhana (kod "C"), dan sudut curam (kod "D").

Sesetengah jenis seperti galas roller tirus integral adalah pra-lubricated, satu sisi dimeteraikan, dan penahan diri. Mereka biasanya dipasang secara berpasangan untuk membentuk unit galas lengkap dua kali.

View as

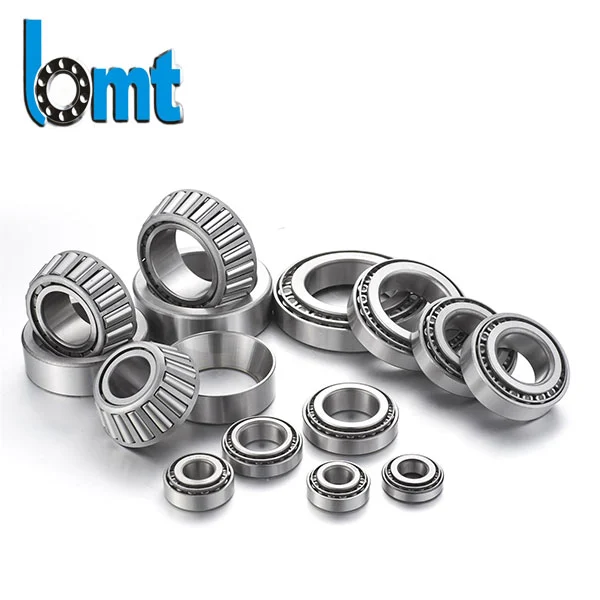

Galas roller tirus siri metrik

Galas roller tirus siri metrik

Sebagai pengeluar utama galas roller tirus siri metrik di China, BMT menawarkan penyelesaian yang kuat yang dapat dengan mudah menahan beban radial dan paksi gabungan. Model galas kami termasuk 30205 dan 32210. Dengan raceways precision-tanah dan sudut hubungan yang dioptimumkan, galas siri metrik kami cemerlang di kawasan yang memerlukan ketahanan yang melampau dan kapasiti membawa beban, seperti jentera berat, kotak gear automotif, dan peralatan perindustrian.
bermula dari moq 50-set
Harga Fob Ningbo
Kami menawarkan bayaran awal 30% T/T
Lihat Lagi >> Hantar Pertanyaan >>

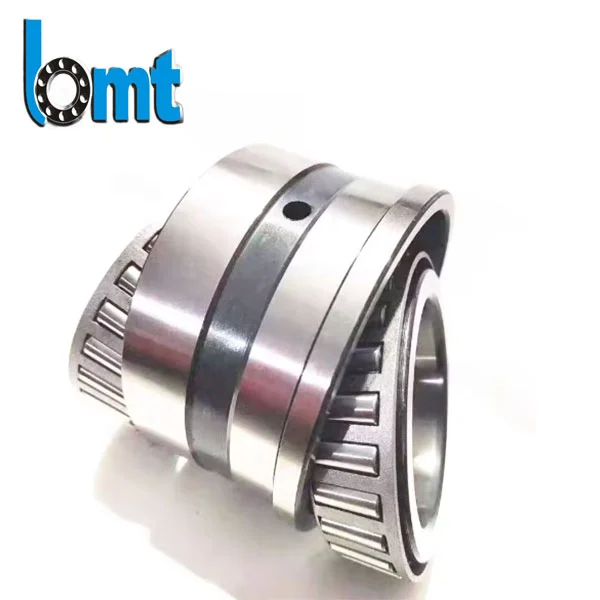

Galas roller tirus berganda berganda

Galas roller tirus berganda berganda

Bearing roller roller roller BMT adalah padat dan sesuai untuk jentera berat yang memerlukan kapasiti beban radial dan paksi yang tinggi. Galas ini digunakan secara meluas dalam kotak gear, peralatan perlombongan dan jentera perindustrian. Galas ini boleh didapati dalam saiz metrik dan inci. Penarafan beban mereka adalah 30% lebih tinggi daripada galas baris tunggal.
MOQ: 20 keping
Waktu Lead: 4-5 minggu
Spesifikasi tersuai tersedia
Lihat Lagi >> Hantar Pertanyaan >>

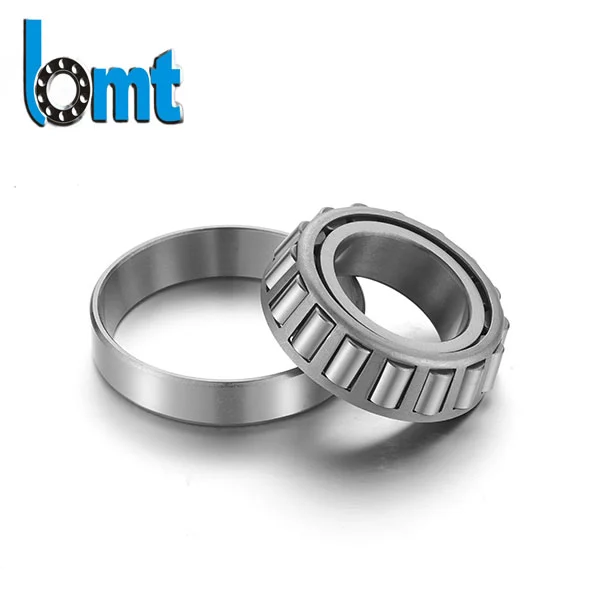

Galas roller tirus siri inci

Galas roller tirus siri inci

BMT Company adalah pengeluar dan pembekal yang dipercayai dari siri roller roller siri berkualiti tinggi. Juruteknik kami telah direka untuk mengendalikan beban radial dan paksi gabungan dalam permintaan pelanggan untuk persekitaran perindustrian. Galas kami boleh didapati dalam saiz inci standard dan menawarkan ketahanan dengan penilaian beban dinamik sehingga 150,000 lbs.
Hubungi kami sekarang untuk sebut harga
Penghantaran dalam masa 3-4 minggu.
Terma Pembayaran: Deposit 30%, Baki Sebelum Penghantaran.
Lihat Lagi >> Hantar Pertanyaan >>

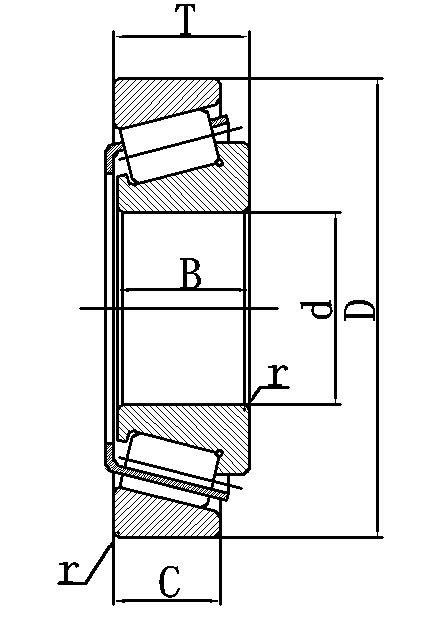

Item d (mm) D (mm) B (mm) CR Dinamik (KN) Statik Cor (KN) T (mm) r (mm)
30202 15 35 11 14.22 13.05 11.75 0.6
30203 17 40 12 18.36 18.18 13.25 1
30204 20 47 14 26.55 27.45 15.25 1
30205 25 52 15 28.35 30.33 16.25 1
30206 30 62 16 39.15 43.2 17.25 1
30207 35 72 17 49.05 54.45 18.25 1.5
30208 40 80 18 57.15 63.45 19.75 1.5
30209 45 85 19 62.55 73.35 20.75 1.5
30210 50 90 20 71.1 86.4 21.75 1.5
30211 55 100 21 85.05 101.7 22.75 2
30212 60 110 22 93.6 110.7 23.75 2
30213 65 120 23 115.2 140.4 24.75 2
30214 70 125 24 124.2 155.7 26.25 2
30215 75 130 25 127.8 162.9 27.25 2
30216 80 140 26 144.9 181.8 28.25 2.5
30217 85 150 28 163.8 207.9 30.5 2.5
30218 90 160 30 183.6 234.9 32.5 2.5
30219 95 170 32 207.9 269.1 34.5 3
30220 100 180 34 232.2 304.2 37 3
30221 105 190 36 222.3 279 39 3
30222 110 200 38 279 373.5 41 3
30224 120 215 40 292.5 396 43.5 3
30226 130 230 40 292.5 382.5 43.75 4
30228 140 250 42 333 441 45.75 4
30230 150 270 45 387 508.5 49 4
30232 160 290 48 409.5 531 52 4
30234 170 310 52 463.5 643.5 57 5
30236 180 320 52 459 607.5 57 5
30238 190 340 55 513 715.5 60 5
30240 200 360 58 571.5 792 64 5
30244 220 400 65 742.5 1116 72 5
30248 240 440 72 868.5 1260 79 5
30252 260 480 80 1116 1620 89 6
30256 280 500 80 1143 1719 89 6
30260 300 540 85 1260 1881 96 6
30264 320 580 92 1521 2322 104 6
30302 15 42 13 19.71 17.28 14.25 1
30303 17 47 14 27 24.84 15.25 1
30304 20 52 15 31.5 31.95 16.25 1.5
30305 25 62 17 43.38 42.21 18.25 1.5
30306 30 72 19 53.64 54.09 20.75 1.5
30307 35 80 21 68.4 71.1 22.75 2
30308 40 90 23 81.54 90.9 25.25 2
30309 45 100 25 101.7 115.2 27.25 2
30310 50 110 27 123.3 136.8 29.25 2.5
30311 55 120 29 133.2 153 31.5 2.5
30312 60 130 31 155.7 180.9 33.5 3
30313 65 140 33 183.6 215.1 36 3
30314 70 150 35 207 248.4 38 3
30315 75 160 37 225 267.3 40 3
30316 80 170 39 261 315 42.5 3
30317 85 180 41 234 268.2 44.5 4
30318 90 190 43 259.2 297 46.5 4
30319 95 200 45 297 351 49.5 4
30320 100 215 47 328.5 387 51.5 4
30321 105 225 49 342 405 53.5 4
30322 110 240 50 355.5 414 54.5 4
30324 120 260 55 414 490.5 59.5 4
30326 130 280 58 481.5 585 63.75 5
30330 150 320 65 612 765 72 5
30332 160 340 68 702 918 75 5
30334 170 360 72 801 1008 80 5
30336 180 380 75 823.5 1035 83 5
30338 190 400 78 909 1197 86 5
30340 200 420 80 981 1305 89 5
30344 220 460 88 1179 1602 97 5
30348 240 500 95 1359 1854 105 5
30352 260 540 102 1575 1854 113 6
31305 25 62 17 35.82 38.25 18.25 1.5
31306 30 72 19 45.81 49.41 20.75 1.5
31307 35 80 21 56.79 62.19 22.75 2
31308 40 90 23 72.45 81.18 25.25 2
31309 45 100 25 85.59 96.3 27.25 2
31310 50 110 27 103.5 119.7 29.25 2.5
31311 55 120 29 116.1 133.2 31.5 2.5
31312 60 130 31 137.7 161.1 33.5 3
31313 65 140 33 158.4 188.1 36 3
31314 70 150 35 177.3 211.5 38 3
31315 75 160 37 196.2 234.9 40 3
31316 80 170 39 212.4 254.7 42.5 3
31317 85 180 41 213.3 250.2 44.5 4
31318 90 190 43 226.8 267.3 46.5 4
31319 95 200 45 279 360 49.5 3
31320 100 215 51 259.2 297 56.5 4
31321 105 225 49 297 355.5 58 4
31322 110 240 57 333 396 63 4
31324 120 260 62 364.5 441 68 4
31328 140 300 70 535.5 657 77 5
320/28 28 52 16 30.15 36 16 1
32004 20 42 15 22.59 25.38 15 0.6
32005 25 47 15 25.2 30.6 15 0.6
32006 30 55 17 33.75 41.85 17 1
32007 35 62 18 40.05 51.75 18 1
32008 40 68 19 47.25 64.35 19 1
32009 45 75 20 53.55 77.4 20 1
32010 50 80 20 55.8 81.45 20 1
32011 55 90 23 74.25 109.8 23 1.5
32012 60 95 23 77.49 114.3 23 1.5
32013 65 100 23 81 123.3 23 1.5
32014 70 110 25 97.2 146.7 25 1.5
32015 75 115 25 99 152.1 25 1.5
32016 80 125 29 132.3 202.5 29 1.5
32017 85 130 29 135 210.6 29 1.5
32018 90 140 32 160.2 240.3 32 2
32019 95 145 32 163.8 258.3 32 2
32020 100 150 32 166.5 268.2 32 2
32021 105 160 35 183.6 297 35 2.5
32022 110 170 38 211.5 324 38 2.5
32024 120 180 38 216.9 360 38 2.5
32026 130 200 45 283.5 477 45 2.5
32028 140 210 45 288 486 45 2.5
32030 150 225 48 333 580.5 48 3
32032 160 240 51 382.5 675 51 3
32034 170 260 57 454.5 796.5 57 3
32036 180 280 64 571.5 1008 64 3
32038 190 290 64 580.5 1044 64 3
32040 200 310 70 684 1233 70 3
32044 220 340 76 801 1404 76 4
32048 240 360 76 666 1269 76 4
32052 260 400 87 900 1782 87 5
32056 280 420 87 963 1872 87 5
32060 300 460 100 1359 2610 100 5
32064 320 480 100 1413 2790 100 5
32203 17 40 16 22.86 22.14 17.25 1
32204 20 47 18 24.75 25.2 19.25 1
32205 25 52 18 29.25 31.5 19.25 1.1
32206 30 62 20 47.7 55.35 21.25 1
32207 35 72 23 63 77.4 24.25 1.5
32208 40 80 23 70.2 82.35 24.75 1.5
32209 45 85 23 75.15 91.8 24.75 1.5
32210 50 90 23 79.65 99.9 24.75 1.5
32211 55 100 25 99 123.3 26.75 2
32212 60 110 28 117.9 150.3 29.75 2
32213 65 120 31 140.4 180 32.75 2
32214 70 125 31 141.3 184.5 33.25 2
32215 75 130 31 148.5 198.9 33.25 2
32216 80 140 33 172.8 228.6 35.25 2.5
32217 85 150 36 190.8 252 38.5 2.5
32218 90 160 40 229.5 310.5 42.5 2.5
32219 95 170 43 256.5 351 45.5 3
32220 100 180 46 283.5 418.5 49 3
32221 105 190 50 324 459 53 3
32222 110 200 53 355.5 508.5 56 3
32224 120 215 58 378 540 61.5 3
32226 130 230 64 432 621 67.75 4
32228 140 250 68 504 733.5 71.75 4
32230 150 270 73 549 810 77 4
32232 160 290 80 639 999 84 4
32234 170 310 86 742.5 1170 91 5
32236 180 320 86 778.5 1224 91 5
32238 190 340 92 823.5 1296 97 5
32240 200 360 98 963 1548 104 5
32244 220 400 108 1098 1773 114 5
32248 240 440 120 1440 2304 127 5
32252 260 480 130 1692 2745 137 6
32256 280 500 130 1602 2691 137 6
32260 300 540 140 1836 3105 149 6
32264 320 580 150 2340 3870 159 6
32303 17 47 19 27.45 32.31 20.25 1
32304 20 52 21 40.59 42.03 22.25 1.5
32305 25 62 24 55.08 57.69 25.25 1.5
32306 30 72 27 73.98 82.44 28.75 1.5
32307 35 80 31 90.9 102.6 32.75 2
32308 40 90 33 104.4 125.1 35.25 2
32309 45 100 36 131.4 162 38.25 2
32310 50 110 40 158.4 198 42.25 2.5
32311 55 120 43 180 225 45.5 2.5
32312 60 130 46 208.8 265.5 48.5 3
32313 65 140 48 248.4 321.3 51 3
32314 70 150 51 285.3 372.6 54 3
32315 75 160 55 319.5 423 58 3
32316 80 170 58 342 450 61.5 3
32317 85 180 60 369 486 63.5 4
32318 90 190 64 355.5 450 67.5 4
32319 95 200 67 405 526.5 71.5 4
32320 100 215 73 418.5 603 77.5 4
32321 105 225 77 571.5 783 81.5 4
32322 110 240 80 540 706.5 84.5 4
32324 120 260 86 733.5 1026 90.5 4
32326 130 280 93 733.5 1017 98.75 5
32328 140 300 102 882 1287 107.75 5
32330 150 320 108 1044 1575 114 5
32332 160 340 114 1044 1530 121 5
32334 170 360 120 1089 1602 127 5
32336 180 380 126 1269 1908 134 5
32338 190 400 132 1377 2079 140 5
32340 200 420 138 1503 2286 146 5
32344 220 460 145 1728 2637 154 5
32348 240 500 155 1998 3060 165 5
32352 260 540 165 2286 3555 176 6
32356 280 580 175 2610 4050 187 6
32907 35 55 14 23.58 36 14 0.6
32908 40 62 15 28.8 41.4 15 0.6
32909 45 68 15 31.05 51.3 15 0.6
32910 50 72 15 31.95 54.45 15 0.6
32911 55 80 17 42.3 69.3 17 1
32912 60 85 17 40.95 68.4 17 1
32913 65 90 17 44.55 78.3 17 1
32914 70 100 20 63.45 102.6 20 1
32915 75 105 20 67.5 114.3 20 1
32916 80 110 20 65.25 117 20 1
32917 85 120 23 85.5 144 23 1.5
32918 90 125 23 83.25 150.3 23 1.5
32919 95 130 23 91.8 162.9 23 1.5
32920 100 140 25 105.3 189 25 1.5
32921 105 145 25 106.2 194.4 25 1.5
32922 110 150 25 107.1 198 25 1.5
32924 120 165 29 134.1 252.9 29 1.5
32926 130 180 32 173.7 315 32 2
32928 140 190 32 179.1 333 32 2
32930 150 210 38 229.5 436.5 38 2.5
33005 25 47 17 24.75 33.3 17 0.6
33006 30 55 20 35.55 53.55 20 1
33007 35 62 21 41.4 63.9 21 1
33008 40 68 22 53.1 73.8 22 1
33009 45 75 24 58.05 89.1 24 1
33010 50 80 24 60.3 96.3 24 1
33011 55 90 27 77.85 126 27 1.5
33012 60 95 27 83.25 133.2 27 1.5
33013 65 100 27 88.2 144 27 1.5
33014 70 110 31 113.4 178.2 31 1.5
33015 75 115 31 116.1 185.4 31 1.5
33016 80 125 36 141.3 249.3 36 1.5
33017 85 130 36 154.8 256.5 36 1.5
33018 90 140 39 194.4 319.5 39 2
33019 95 145 39 203.4 343.8 39 2
33020 100 150 39 207.9 357.3 39 2
33021 105 160 43 216 360 43 2.5
33022 110 170 47 245.7 418.5 47 2.5
33024 120 180 48 252.9 445.5 48 2.5
33026 130 200 55 351 648 55 2.5
33028 140 210 56 310.5 625.5 56 2.5
33030 150 225 59 315 720 59 3
33108 40 75 26 69.75 91.8 26 1.5
33109 45 80 26 71.55 97.2 26 1.5
33110 50 85 26 76.05 108 26 1.5
33111 55 95 30 102.6 144.9 30 1.5
33112 60 100 30 105.3 149.4 30 1.5
33113 65 110 34 136.8 200.7 34 1.5
33114 70 120 37 153.9 221.4 37 2
33115 75 125 37 158.4 234 37 2
33116 80 130 37 171.9 264.6 37 2
33117 85 140 41 193.5 292.5 41 2.5
33118 90 150 45 232.2 371.7 45 2.5
33119 95 160 49 258.3 391.5 49 2.5
33120 100 165 52 274.5 436.5 52 2.5
33121 105 175 56 301.5 477 56 2.5
33122 110 180 56 310.5 504 56 2.5
33124 120 200 62 391.5 621 62 2.5
33207 35 72 28 78.03 96.3 28 1.5
33208 40 80 32 97.2 125.1 32 1.5
33209 45 85 32 100.8 134.1 32 1.5
33213 65 120 41 180 249.3 41 2
33217 85 150 49 264.6 395.1 49 2.5
02474/02420 28.58 68.26 22.23 51 61.1 22.23 0.8/1.5
02475/02420 31.75 68.26 22.23 51 61.1 22.23 3.6/1.6
02872/02820 28.58 73.03 22.23 55 65.5 22.23 0.8/2.3
05075/05185 19.05 47 14.38 24.9 25.4 14.38 1.3/1.3
05079/05185 19.99 47 14.38 24.9 25.4 14.38 1.5/1.3
07087/07196 22.23 50.01 13.5 26 27.7 13.5 1.3/1.0
07097/07196 25 50.01 13.5 26 27.7 13.5 1.5/1.0
07097/07204 25 51.99 15.01 26 27.7 15.01 1.5/1.3
07098/07196 24.98 50.01 13.5 26 27.7 13.5 1.5/1.0
07098/07204 24.98 51.99 15.01 26 27.7 15.01 1.5/1.3
07100/07196 25.4 50.01 13.5 26 27.7 13.5 1.0/1.0
07100/07204 25.4 51.99 15.01 26 27.7 15.01 1.0/1.3
09067/09194 19.05 49.23 21.21 37.5 37.5 21.21 1.3/3.5
09067/09195 19.05 49.23 18.03 37.5 37.5 18.03 1.3/1.3
09067/09196 19.05 49.26 21.21 37.5 37.5 21.21 1.3/1.5
09074/09194 19.05 49.23 23.02 37.5 37.5 23.02 1.3/3.5
09074/09195 19.05 49.23 19.85 37.5 37.5 19.85 1.3/1.3
09074/09196 19.05 49.23 23.02 37.5 37.5 23.02 1.3/1.5
09078/09194 19.05 49.26 23.02 37.5 37.5 23.02 1.3/3.5
09078/09195 19.05 49.23 19.85 37.5 37.5 19.85 1.3/1.3
09078/09196 19.05 49.23 23.02 37.5 37.5 23.02 1.3/1.5
11590/11520 15.88 42.86 14.29 17.8 17.8 14.29 1.5/1.5
12580/12520 20.64 49.23 19.85 36 37 19.85 1.5/1.5
1280/1220 22.23 57.15 22.23 52.6 55.7 22.23 0.8/1.6
13682/13620 36.51 69.01 19.05 47 60 19.05 3.5/0.8
13685/13621 38.1 69.01 19.05 47 60 19.05 3.5/2.3
1380/1328 22.23 52.39 19.37 42.5 47.5 19.37 1.5/1.5
1380R/1328R 22.23 52.39 19.37 36.7 37.9 19.37 1.6/1.6
13889/13830 38.1 63.5 12.7 27.2 34 12.7 1.5/0.8
14118/14283 30 72.09 22.39 46.1 55 22.39 0.8/2.3
14125A/14274 31.75 69.01 19.85 44.5 55 19.85 3.5/3.3
14125A/14276 31.75 69.01 19.85 44.5 55 19.85 3.5/1.3
14130/14276 33.34 69.01 19.85 44.5 55 19.85 3.5/1.3
14131/14276 33.34 69.01 19.85 46.1 55 19.85 0.8/1.2
14137A/14274 34.93 69.01 19.85 44.5 55 19.85 1.5/3.3
14137A/14276 34.93 69.01 19.85 44.5 55 19.85 1.5/1.3
14138a/14274 34.93 69.01 19.85 44.5 55 19.85 3.5/3.3
14138a/14276 34.93 69.01 19.85 44.5 55 19.85 3.5/1.3
14138a/14276 34.93 69.01 19.85 46.1 55 19.85 3.6/1.2
15100/15245 25.4 62 19.05 45 54.5 19.05 3.5/1.3
15100/15250 25.4 63.5 20.64 45 54.5 20.64 3.5/1.3
15101/15245 25.4 62 19.05 45 54.5 19.05 0.8/1.3
15101/15250 25.4 63.5 20.64 45 54.5 20.64 0.8/1.3
15106/15245 26.97 62 19.05 45 54.5 19.05 0.8/1.3
15117/15245 30 62 19.05 45 54.5 19.05 1.3/1.3
15117/15250 30 63.5 20.64 45 54.5 20.64 1.3/1.3
15118/15245 30.21 62 19.05 45 54.5 19.05 3.5/1.3
15118/15250 30.21 63.5 20.64 45 54.5 20.64 3.5/1.3
15120/15245 30.21 62 19.05 45 54.5 19.05 0.8/1.3
15120/15250 30.21 63.5 20.64 45 54.5 20.64 0.8/1.3
15123/15245 31.75 62 18.16 43.5 51.5 18.16 1.3/1.3
15123/15250 31.75 63.5 20.64 45 54.5 20.64 1.3/1.3
15125/15245 31.75 62 19.05 45 54.5 19.05 3.5/1.3
15125/15250 31.75 63.5 20.64 45 54.5 20.64 3.5/1.3
15126/15245 31.75 62 19.05 45 54.5 19.05 0.8/1.3
15126/15250 31.75 63.5 20.64 45 54.5 20.64 0.8/1.3
15580/15520 26.97 57.15 17.46 42.5 49 17.46 3.5/1.5
17118/17244 29.99 62 16 35 36 16 1.5/1.5
1779/1729 23.81 56.9 19.37 40.5 44 19.37 0.8/1.3
18590/18520 41.28 73.03 16.67 46.5 57 16.67 3.5/1.5
18690/18620 46.04 79.18 17.46 47.1 59.1 17.46 2.8/1.6
18790/18720 50.8 85 17.46 44 58.5 17.46 3.5/1.5
18790/18724 50.8 88.9 17.46 44 58.5 17.46 3.5/1.3
23100/23256 25.4 65.09 22.23 43 45 22.23 1.5/1.5
24780/24720 41.28 76.2 22.23 63.5 78.5 22.23 3.5/0.8
25577/25520 42.88 82.93 23.81 78.5 98 23.81 3.5/0.8
25577/25521 42.88 83.06 23.81 78.5 98 23.81 3.5/3.3
25577/25523 42.88 82.93 26.99 78.5 98 26.99 3.5/2.3
25580/25520 44.45 82.93 23.81 78.5 98 23.81 3.5/0.8
25580/25521 44.45 83.06 23.81 78.5 98 23.81 3.5/3.3
25580/25523 44.45 82.93 26.99 78.5 98 26.99 3.5/2.3
25590/25520 45.62 82.93 23.81 78.5 98 23.81 3.5/0.8
25590/25523 45.62 82.93 26.99 78.5 98 26.99 3.5/2.3
2580/2520 31.75 66.42 25.4 71.4 85.1 25.4 0.8/3.2
2580/2523 31.75 69.85 23.81 70 84 23.81 0.8/1.3
25877/25821 34.93 73.03 23.81 73 88.5 23.81 1.5/0.8
25880/25821 34.49 73.03 23.81 73 88.5 23.81 1.5/0.8
26882/26822 41.28 79.38 23.81 75 94.5 23.81 3.5/0.8
27680/27620 73.03 125.41 25.4 102 164 25.4 3.5/1.5
27684/57620 76.2 125.41 25.4 102 164 25.4 3.5/1.5
27687/27620 82.55 125.41 25.4 101 162 25.4 3.5/1.5
2788/2720 38.1 76.2 23.81 68 81 23.81 3.5/3.3
2788/2729 38.1 76.2 23.81 68 81 23.81 3.5/0.8
2789/2735 39.69 73.03 23.81 68 81 23.81 3.5/0.8
28584R/28521 52.39 92.08 24.61 84.8 119 24.61 3.6/0.8
28680/28622 55.56 97.63 24.61 89.6 131 24.61 3.5/0.8
28682/28622 57.15 97.63 24.61 89.6 131 24.61 3.5/0.8
28985/28920 60.33 101.6 25.4 91.4 137 25.4 3.5/3.3
28985/28921 60.33 100 25.4 91.4 137 25.4 3.5/3.3
29585/29520 63.5 107.95 25.4 94.5 144 25.4 3.5/3.3
29585/29521 63.5 110 25.4 94.5 144 25.4 3.5/1.3
29586/29522 63.5 107.95 25.4 82.8 143 25.4 1.5/0.8
29675/29620 69.85 112.71 25.4 86 133 25.4 1.5/3.3
29685/29620 73.03 112.71 25.4 97 155 25.4 3.5/3.3
29688/29620 73.82 112.71 25.4 86 133 25.4 1.5/3.3
31593/31520 34.93 76.2 29.37 80.9 97.4 29.37 3.6/3.3
31597/31520 34.93 76.2 29.37 80 96 29.37 1.5/3.3
33225/33462 57.15 117.48 30.16 112 168 30.16 3.5/3.3
33251/33472 63.5 120 29.79 112 168 29.79 0.8/0.8
33262/33462 66.68 117.48 30.16 112 168 30.16 3.5/3.3
33269/33462 68.26 117.48 30.16 112 168 30.16 3.5/3.3
33275/33462 69.85 117.48 30.16 118 179 30.16 3.5/3.3
33281/33462 71.44 117.48 30.16 118 179 30.16 3.5/3.3
33281/33472 71.44 120 29.79 118 179 29.79 3.5/0.8
33287/33462 73.03 117.48 30.16 118 179 30.16 3.5/3.3
3379/3320 34.93 80.17 29.37 91 106 29.37 3.6/3.2
3381/3320 38.1 80.17 29.37 86 106 29.37 3.5/3.3
3384/3320 41.28 80.17 29.37 91 106 29.37 0.8/3.2
34274/34478 69.95 121.44 24.61 85.6 110 24.61 2.0/2.0
342S/332 42.88 80 21 69 76 21 3.5/1.3
3490/3420 38.1 79.38 29.37 87.4 105 29.37 3.6/3.2
355x/352 44.45 90.12 23 71.8 81.7 23 3.6/2.4
3578/3525 44.45 87.31 30.16 90 110 30.16 3.5/3.3
359s/354a 46.04 85 20.64 69 78 20.64 2.3/1.3
36690/36626 146.05 203.2 28.58 181 375 28.58 1.5/1.5
36691/36620 146.05 193.68 28.58 181 375 28.58 4.8/1.5
368/362A 50.8 88.9 20.64 74.5 89 20.64 3.5/1.3
37425/37625 107.95 158.75 23.02 104 169 23.02 3.5/3.3
3776/3720 44.98 93.26 30.16 103 137 30.16 3.6/3.2
3778/3720 47.63 93.26 30.16 103 137 30.16 3.6/3.2
3780/3720 50.8 93.26 30.16 103 137 30.16 3.5/3.3
3780/3730 50.8 93.26 30.16 102 134 30.16 3.5/0.8
3781/3730 49.21 93.26 30.16 102 134 30.16 3.5/0.8
3782/3720 44.45 93.26 30.16 103 137 30.16 3.6/3.2
3878/3820 36.51 85.73 30.16 91 115 30.16 0.8/3.3
387a/382a 57.15 96.84 21 80.4 101 21 3.5/0.8
389A/382 53.98 98.43 21 74.5 91.5 21 0.8/0.8
389As/382a 53.98 96.84 21 80.4 101 21 3.5/0.8
390/394A 57.15 110 23 86.4 116 23 2.3/1.3
392/394a 61.91 110 22 87.5 117 22 0.8/1.3
395/394A 63.5 110 22 87.5 117 22 3.5/1.3
39578/39520 53.98 112.71 30.16 126 168 30.16 3.5/3.3
39581/39520 57.15 112.71 30.16 147 207 30.16 8.0/3.3
39585/39520 63.5 112.71 30.16 147 207 30.16 3.5/3.3
39590/39520 66.68 112.71 30.16 147 207 30.16 3.5/3.3
395A/394A 66.68 110 22 86.4 116 22 0.8/1.3
395s/394a 66.68 110 22 86.4 116 22 3.5/1.3
3979/3920 57.15 112.71 30.16 118 172 30.16 3.5/3.3
3980/3925 60.33 112.71 30.16 118 172 30.16 3.5/3.3
3981/3920 58.73 112.71 30.16 118 172 30.16 3.5/3.3
3982/3920 63.5 112.71 30.16 111 164 30.16 3.5/3.3
3982/3925 63.5 112.71 30.16 118 172 30.16 3.5/0.8
3984/3920 66.68 112.71 30.16 111 164 30.16 3.5/3.3
3994/3920 66.68 112.71 30.16 111 164 30.16 5.5/3.3
399a/394a 68.26 110 22 87.5 117 22 2.3/1.3
418/414 38.1 88.5 26.99 98.1 112 26.99 3.6/1.6
42350/42587 88.9 149.23 31.75 139 214 31.75 3.0/3.3
42362/42584 92.08 148.43 28.58 139 214 28.58 3.5/3.0
42368/42584 93.66 148.43 28.58 139 214 28.58 3.0/3.0
42683/42620 73.03 127 30.16 131 181 30.16 3.5/3.3
4388/4335 41.28 90.49 39.69 132 169 39.69 3.6/3.2
44649/44610 26.97 50.29 14.22 28.5 34 14.22 3.5/1.3
45284/45220 50.8 104.78 30.16 131 171 30.16 6.4/3.3
45290/45221 57.15 104.78 30.16 131 171 30.16 2.3/0.8
456/453X 53.98 104.78 30.16 116 150 30.16 3.5/3.3
46143/46368 36.51 93.66 31.75 105 134 31.75 1.6/3.2
462/453X 57.15 104.78 30.16 109 144 30.16 2.3/3.3
469/453X 57.15 104.78 30.16 109 144 30.16 3.5/3.3
47487/47420 69.85 120 32.55 166 249 32.55 3.5/3.3
47487R/47420DM 69.85 120 32.55 150 218 32.55 3.6/0.5
47490/47420 71.44 120 32.55 123 167 32.55 3.5/3.3
47675/47620A 71.44 133.35 33.34 151 229 33.34 3.5/0.8
47681/47620A 80.96 133.35 33.34 151 228 33.34 3.5/0.8
47686/47620 82.55 133.35 33.34 145 226 33.34 3.5/3.3
47686/47620A 82.55 133.35 33.34 151 228 33.34 3.5/0.8
47687/47620 82.55 133.35 33.34 145 226 33.34 6.7/3.2
47890/47820 92.08 146.05 33.34 157 250 33.34 3.5/3.3
47896/47820 95.25 146.05 33.34 157 250 33.34 3.5/3.3
480/472 68.26 120 29.79 118 161 29.79 3.5/2.0
480/472A 68.26 120 29 119 161 29 3.5/3.3
48190/48120 107.95 161.93 34.93 164 280 34.93 3.5/3.3
482/472 69.85 120 29.79 118 161 29.79 3.5/2.0
48290/48220 127 182.56 39.69 235 445 33.34 3.5/3.3
483/472A 63.5 120 29 119 161 23.44 3.5/3.3
48385/48320 133.35 190.5 39.69 219 430 33.34 3.5/3.3
48393/48320 136.33 190.5 39.69 219 430 33.34 3.5/3.3
48506/48750 128.59 190.5 34.93 222 410 25.4 3.5/3.3
48684/48620 142.88 200.03 41.28 246 505 34.13 8.0/3.3
495/492A 82.55 133.35 30.16 118 175 22.23 3.5/3.3
49585/49520 50.8 101.6 31.75 107 128 25.4 3.5/3.3
495A/493 76.2 136.53 30.16 118 175 22.23 3.5/3.3
495As/492a 77.79 133.35 30.16 118 175 22.23 3.5/3.3
495AX/492A 76.2 133.35 30.16 118 175 22.23 6.4/3.3
496/492A 80.96 133.35 30.16 118 175 22.23 3.5/3.3
497/492A 85.73 133.35 30.16 133 198 22.23 3.5/3.3
497/493 85.73 136.53 30.16 133 198 22.23 3.5/3.3
498/492A 84.14 133.5 30.16 118 175 22.23 3.5/3.3
52375/52618 95.25 157.16 36.51 176 277 26.2 3.5/3.3
52387/52637 98.43 161.93 39.69 176 277 26.2 3.5/3.3
52393/52618 100.01 157.16 36.51 176 277 26.2 3.5/3.3
52400/52618 101.6 157.16 36.51 176 277 26.2 3.5/3.3
528/522 47.63 101.6 34.93 139 171 26.99 3.5/3.3
529/522 50.8 101.6 34.93 139 169 26.99 0.8/3.3
53176/53375 44.45 95.25 30.96 88.7 98.4 20.64 1.2/0.8
536/532X 47.63 107.95 36.51 138 172 28.58 3.6/3.2
537/532X 50.8 107.95 36.51 139 173 28.58 3.5/3.3
5395/5335 49.21 103.19 43.66 177 245 36.51 3.5/3.3
55175/55443 44.45 112.71 30.16 92 108 50.64 3.5/3.3
55187/55437 47.63 111.13 30.16 92 108 20.64 3.5/3.3
55200/55437 50.8 111.13 30.16 92 108 20.64 3.5/3.3
554/553X 61.91 122.24 38.1 149 197 30.16 3.5/3.3
555/553X 50.8 122.24 38.1 149 197 30.16 2.3/3.3
555S/553X 57.15 122.24 38.1 149 197 30.16 3.5/3.3
5566/5535 55.56 122.24 43.66 178 263 36.51 1.3/3.3
557S/552A 53.98 123.83 38.1 149 197 30.16 3.5/3.3
560/553X 66.68 122.24 38.1 149 197 30.16 3.5/3.3
560s/552a 68.26 123.83 38.1 162 223 30.16 3.5/3.3
560s/553x 68.26 122.24 38.1 149 197 30.16 3.5/3.3
56425/56650 107.95 165.1 36.51 190 305 26.99 3.5/3.3
567/563 73.03 127 36.51 156 226 28.58 3.5/3.3
569/563 64.96 127 36.51 165 232 28.58 3.5/3.3
575/572 76.2 139.99 36.51 171 252 28.58 3.5/3.3
5760/5735 76.2 135.73 44.45 207 295 34.93 3.5/3.3
577/572 74.61 139.99 36.51 171 252 28.58 3.5/3.3
5795/5735 77.79 135.73 44.45 215 340 34.93 3.5/3.3
580/572 82.55 139.99 36.51 171 255 28.58 3.5/3.3
593/592A 88.9 152.4 39.69 183 287 30.16 3.5/3.3
593/592XE 88.9 147.64 35.72 185 288 26.19 3.5/0.8
594/592A 95.25 152.4 39.69 183 287 30.16 3.5/3.3
596/592A 85.73 152.4 39.69 183 287 30.16 3.5/3.3
598/592XE 92.08 147.64 35.72 185 288 26.19 3.5/0.8
598a/592a 92.08 152.4 39.69 185 288 30.16 6.4/3.3
598A/593X 92.08 150 35.99 183 287 27 6.4/3.0
621/612 53.98 120.65 41.28 163 198 31.75 3.5/3.3
6280/6220 53.98 127 50.8 241 300 41.28 3.5/3.3
635/632 57.15 136.53 41.28 183 246 31.75 3.5/3.3
637/633 60.33 130.18 41.28 183 246 31.75 3.5/3.3
6376/6320 60.33 135.76 53.98 263 360 44.45 3.5/3.3
6379/6320 65.09 135.76 53.98 263 360 44.45 3.5/3.3
639/633 63.5 130.18 41.28 183 246 31.75 3.5/3.3
644/633 71.44 130.18 41.28 151 229 31.75 3.5/3.3
64450/64700 114.3 177.8 41.28 231 370 30.16 3.5/3.3
645/632 71.44 136.53 41.28 197 267 31.75 6.4/3.3
6454/6420 69.85 149.23 53.98 284 410 44.45 5.0/3.3
6455/6420 57.15 149.23 53.98 284 410 44.45 3.5/3.3
6460/6420 73.03 149.23 53.98 284 410 44.45 3.5/3.3
6460ya/6420 73.03 149.23 53.98 285 404 44.45 7.0/3.2
65200/65500 50.8 127 44.45 198 258 34.93 3.5/3.3
65212/65500 53.98 127 44.45 198 258 34.93 3.5/3.3
65225/65500 57.15 127 44.45 198 258 34.93 3.5/3.3
65231/65500 58.73 127 44.45 198 258 34.93 3.5/3.3
65385/65320 44.45 114.3 44.45 189 230 34.93 3.6/3.2
655/653 69.85 146.05 41.28 229 335 31.75 3.5/3.3
6559/6535 82.55 161.93 53.98 305 460 42.86 3.5/3.3
6580/6535 88.9 161.93 53.98 305 460 42.86 3.5/3.3
661/653 79.38 146.05 41.28 188 260 31.75 3.5/3.3
66225/66462 57.15 117.48 33.34 118 132 23.81 3.5/3.3
663/653 82.55 146.05 41.28 180 260 31.75 3.5/3.3
67388/67322 127 196.85 46.04 295 520 38.1 3.5/3.3
67390/67324 133.35 203.2 46.04 295 520 38.1 3.5/3.3
677/672 85.73 168.28 41.28 208 310 30.16 3.5/3.3
67883/67820 184.15 266.7 47.63 339 703 38.1 3.5/3.3
67884/67820 187.33 266.7 47.63 339 703 38.1 3.5/3.3
679/672 88.9 168.28 41.28 208 310 30.16 3.5/3.3
681A/672 92.08 168.28 41.28 208 310 30.16 6.4/3.3
683/672 95.25 168.28 41.28 208 310 30.16 3.5/3.3
68450/68712 114.3 181.98 34.93 173 249 25.4 3.5/3.3
685/672 98.43 168.28 41.28 208 310 30.16 3.5/3.3
687/672 101.6 168.28 41.28 208 31 30.16 3.5/3.3
71412/71750 104.78 190.5 47.63 273 425 34.93 3.5/3.3
71425/71750 107.95 190.5 47.63 273 425 34.93 3.5/3.3
71450/71750 114.3 190.5 47.63 273 425 34.93 3.5/3.3
71453/71750 115.09 190.5 47.63 273 425 34.93 3.5/3.3
72200/72487 50.8 123.83 36.51 135 148 25.4 3.5/3.3
740/742 80.96 150.09 44.45 253 345 36.51 5.0/3.3
744/742 73.03 150.09 44.45 252 345 36.51 3.5/3.3
74500/74850 127 215.9 47.63 320 565 34.93 3.5/3.3
74537/74850 136.33 215.9 47.63 320 565 34.93 3.5/3.3
74550/74850 139.7 215.9 47.63 320 565 34.93 3.5/3.3
745A/742 69.85 150.09 44.45 252 345 36.51 3.5/3.3
745S/742 63.5 150.09 44.45 252 345 36.51 3.5/3.3
749/742 85.03 150.09 44.45 253 345 36.51 3.5/3.3
750/742 79.38 150.09 44.45 273 390 36.51 3.5/3.3
755/752 76.2 161.93 47.63 273 390 38.1 3.5/3.3
756A/752 79.38 161.93 47.63 273 390 38.1 8.0/3.3
757/752 82.55 161.93 47.63 273 390 38.1 3.5/3.3
758/752 85.73 161.93 47.63 273 390 38.1 3.5/3.3
760/752 90.49 161.93 47.63 273 391 38.1 3.5/3.3
77350/77675 88.9 171.45 47.63 239 340 38.1 5.0/3.3
77375/77675 95.25 171.45 47.63 239 340 38.1 3.5/3.3
778/772 92.08 180.98 47.63 278 415 38.1 3.5/3.3
779/772 98.43 180.98 47.63 278 415 38.1 3.5/3.3
780/772 101.6 180.98 47.63 278 415 38.1 3.5/3.3
782/772 104.78 180.98 47.63 278 415 38.1 3.5/3.3
78250/78551 63.5 140.03 36.51 145 172 23.52 2.3/2.3
783/772 100 180.98 47.63 278 415 38.1 3.5/3.3
795/792 120.65 206.38 47.63 299 500 34.93 3.3/3.3
799/792 128.59 206.38 47.63 299 500 34.93 3.3/3.3
82550/82950 139.7 241.3 57.15 410 665 44.45 3.5/3.3
82576/82950 146.05 241.3 57.15 410 665 44.45 3.5/3.3
838/832 80.96 168.28 53.98 340 470 41.28 0.8/3.3
841/832 85.73 168.28 53.98 340 470 41.28 3.5/3.3
842/832 82.55 168.28 53.98 340 470 41.28 3.5/3.3
843/832 76.2 168.28 53.98 340 460 41.28 6.4/3.3
850/832 88.9 168.28 53.98 340 470 41.28 3.5/3.3
850R/832 88.9 168.28 53.98 344 467 41.28 3.6/3.3
855/854 88.9 190.5 57.15 340 525 44.45 8.0/3.3
857/854 92.08 190.5 57.15 340 525 44.45 8.0/3.3
864/854 95.25 190.5 57.15 365 525 44.45 8.0/3.3
866/854 98.43 190.5 57.15 365 525 44.45 3.5/3.3
869/854 87.31 190.5 57.15 365 525 44.45 8.0/3.3
896/892 136.33 228.6 57.15 410 655 44.45 3.5/3.3
898/892 139.7 228.6 57.15 410 655 44.45 3.5/3.3
9185/9121 68.26 152.4 47.63 245 279 31.75 3.5/3.3
9285/9220 76.2 161.93 49.21 230 263 31.75 3.5/3.3
936/932 107.95 212.73 66.68 455 665 53.98 8.0/3.3
938/932 114.3 212.73 66.68 455 665 53.98 7.0/3.3
9380/9321 76.2 171.45 49.21 229 271 31.75 3.5/3.3
9385/9321 84.14 171.45 49.21 229 282 31.75 3.5/3.3
941/932 101.6 212.73 66.68 455 665 53.98 7.0/3.3
95475/95925 120.65 234.95 63.5 500 770 49.21 6.4/3.3
95500/95925 127 234.95 63.5 500 770 49.21 6.4/3.3
95525/95925 133.35 234.95 63.5 500 770 49.21 9.7/3.3
98350/98788 88.9 200 52.76 289 365 34.93 3.5/3.3
98400/98788 101.6 200 52.76 289 365 34.93 3.5/3.3
99550/99100 139.7 254 66.68 525 855 47.63 7.0/3.3
99575/99100 146.05 254 66.68 525 855 47.63 7.0/3.3
99587/99100 149.23 254 66.68 525 855 47.63 7.0/3.3
A6067/A6157 16.99 39.99 12.01 14.9 15.7 9.53 0.8/1.3
A6075/A6157 19.05 39.99 12.01 14.9 15.7 9.53 1.0/1.3
EE107057/107105 146.05 268.29 74.61 600 925 57.15 6.4/6.4
EE107060/107105 152.4 268.29 74.61 600 925 57.15 6.4/6.4
H414235/H414210 63.5 136.53 41.28 231 300 31.75 3.5/3.3
H414242/H414210 66.68 136.53 41.28 231 300 31.75 3.5/3.3
H414245/H414210 68.26 135.53 41.28 231 300 31.75 3.5/3.3
H414249/H414210 71.44 136.53 41.28 231 300 31.75 3.5/3.3
H715332/H715311 60.33 136.53 46.04 249 405 36.51 3.5/3.3
H715334/H715310 61.91 139.7 46.04 249 405 36.51 3.5/3.3
H715336/H715311 63.5 136.53 46.04 249 405 36.51 3.5/3.3
H715340/H715311 65.09 136.53 46.04 249 405 36.51 3.5/3.3
H715341/H715311 66.68 136.53 46.04 249 405 36.51 3.5/3.3
H715343/H715311 68.26 136.53 46.04 249 405 36.51 3.5/3.3
H715345/H715311 71.44 136.53 46.04 249 405 36.51 3.5/3.3
H913842/H913810 61.91 146.05 41.28 191 221 25.4 3.5/3.3
H913849R.F/H913810F 69.85 146.05 41.28 202 237 25.4 3.5/3.3
HH221430/HH221410 76.2 190.5 57.15 425 585 46.04 3.5/3.3
HH221449/HH221410 101.6 190.5 57.15 425 585 46.04 8.0/3.3
HH224335/HH224310 101.6 212.73 66.68 480 670 53.98 7.0/3.3
HH224340/HH224310 107.95 212.73 66.68 480 670 53.98 8.0/3.3
HH224346/HH224310 114.3 212.73 66.68 480 670 53.98 7.0/3.3
HH506348/HH506310 49.21 114.3 44.45 199 243 36.07 3.5/3.3
HH932145/HH932110 146.05 304.8 88.9 730 990 57.15 6.4/6.4
HM212044/HM212010 60.33 122.24 38.1 187 243 29.72 8.0/1.5
HM212047/HM212011 63.5 122.24 38.1 187 243 29.72 7.0/3.3
HM212049/HM212010 66.68 122.24 38.1 187 243 29.72 3.5/1.5
HM212049/HM212011 66.68 122.24 38.1 191 249 29.72 3.5/3.3
HM218248/HM218210 89.98 146.98 40 306 310 32.6 7.0/3.5
HM231149/HM231110 149.23 236.54 57.15 475 760 44.45 3.5/3.3
HM516449/HM546410 82.55 133.35 39.69 184 320 32.55 3.5/3.3
HM518445/HM518410 88.9 152.4 39.69 275 404 30.16 6.4/3.3
HM617049/HM617010 85.73 142.14 42.86 210 345 34.13 4.8/3.3
HM803149/HM803110 44.45 88.9 30.16 99.6 128 23.02 3.6/3.3
HM803149/HM803112 44.45 92.08 30.16 99.6 125 23.02 3.6/3.2
HM807046/HM807010 50.8 104.78 36.21 147 201 28.58 3.5/3.3
HM807049/HM807010 53.98 104.78 36.51 147 201 28.58 3.5/3.3
HM813841/HM813811 60.33 127 36.51 179 256 26.99 3.5/1.5
HM813842/HM813811 63.5 127 36.51 179 256 26.99 3.5/1.5
HM813846/HM813811 69.85 127 36.51 179 256 26.99 3.5/1.5
HM813849/HM813811 71.44 127 36.51 179 256 26.99 3.5/1.5
HMM8867 / HMMAK8810 34.93 72.23 25.4 66.9 87.4 19.84 2.4/2.4
HM89449/HM89410 36.51 76.2 29.37 79.5 108 23.02 3.5/3.3
HM903249/HM903210 44.45 95.25 30.96 99.7 120 22.23 3.6/0.8
HM911245/HM911210 60.33 130.18 36.51 146 171 23.81 5.0/3.3
HM926747/HM926710 127 228.6 53.98 350 500 38.1 3.5/3.3
JH211749E/JH211710E 65 120 39 189 255 32 3.0/2.5
JL69349/JL69310 38 63 17 43.5 58.2 13.5 3.6/1.3
JLM104948/JLM104910 50 82 21.5 71.7 97.9 17 3.0/0.5
JLM506849/JLM506810 55 90 23 81.4 115 18.5 1.5/0.5
JM515649/JM515610 80 130 35 168 256 28.5 3.0/2.5
L21549/L21511 15.88 34.99 11 13.8 13.4 8.71 1.3/1.3
L225842/L225810 120.65 169.86 25.4 128 264 20.64 1.5/1.5
L225849/L225818 127 180.98 25.4 128 264 20.64 1.5/1.5
L44643/L44610 25.4 50.29 14.22 28.5 34 10.67 1.3/1.3
L521949/L521910 107.95 146.05 21.43 935 155 16.67 1.5/1.5
L610549/L610510 63.5 94.46 19.05 49 80 15.08 1.5/1.5
L68149/L68110 34.99 59.13 15.88 35.7 48.5 11.94 1.3/1.3
L68149/L68111 34.99 59.98 15.88 35.7 48.5 11.94 1.3/1.3
LL217849/LL217810 88.9 121.44 15.08 55.1 68.7 11.11 1.5/1.5
LL225749/LL225710 127 165.9 18.26 71.5 125 13.5 1.5/1.5
LL428349/LL428310 139.7 180.98 21.43 120 214 16.67 1.5/1.5
LM102949/LM102910 45.24 73.43 19.56 55.5 78 15.75 3.5/0.8
LM104949/JLM104910 50.8 82 21.98 61.2 84.3 17 3.5/0.5
LM104949/LM104911 50.8 82.55 21.59 71 96 16.51 3.5/1.3
LM104949/LM104912 50.8 82.93 21.59 61.2 84.3 16.51 3.5/1.3
LM11749/LM11710 17.46 39.88 13.84 23.4 23 10.67 1.3/1.3
LM11949/LM11910 19.05 45.24 15.49 29.9 30.5 12.07 1.3/1.3
LM12749/LM12710 22 45.24 15.49 30.1 34.6 12.07 1.3/1.3
LM12749/LM12711 22 45.98 15.49 30.1 34.6 12.07 1.3/1.3
LM29748/LM29710 38.1 65.09 18.03 42.9 56.5 13.97 1.3/1.3
LM29749/LM29710 38.1 65.09 18.03 45 60 13.7 2.3/1.3
LM300849/LM300811 40.99 67.98 17.5 44 59.5 13.5 1.6/1.6
LM48548/LM48510 34.93 65.09 18.03 48.5 59 13.97 1.3/1.3
LM501349/LM501310 41.28 73.43 19.56 55.5 69 14.73 3.5/0.8
LM501349/LM501314 41.28 73.43 21.43 57.8 73 16.6 3.6/0.8
LM522546/LM522510 107.95 159.99 34.93 176 277 26.99 3.5/3.3
LM603049/LM603011 45.24 77.79 19.84 57.1 73.5 15.08 3.6/0.8
LM603049/LM603012 45.24 77.79 21.43 57.1 73.5 16.67 3.6/0.8
LM67048/LM67010 31.75 59.13 15.88 36.5 435 11.81 1.3/1.3
M12648/M12610 22.23 50.01 17.53 37 37.5 13.97 1.3/1.3
M12649/M12610 21.43 50.01 17.53 37 37.5 13.97 1.3/1.3
M201047/M201011 39.69 73.03 25.65 63 81 21.34 0.8/2.3
M224749/M224710 120.65 174.63 35.72 212 385 27.78 3.5/1.5
M86649/M86610 30.16 64.29 21.43 55 72.5 16.67 1.5/1.5
M88048/M88010 33.34 68.26 22.23 56.5 71.5 17.46 0.8/1.5
JKOS020 20 42 17 22.8 29 16.5 0.6
JKOS025 25 47 17 25 34 16.5 0.6
JKOS030 30 55 19 36 46.5 18.5 1
JKOS035 35 62 20 36 50 19.5 1
JKOS040 40 68 21 50 69.5 20.5 1
JKOS045 45 75 22 55 81.5 21.5 1
JKOS050 50 80 22 60 93 21.5 1
JKOS060 60 95 26 76.5 122 25 1.5
JKOS070 70 110 27 98 160 26.5 1.5
JKOS080 80 125 30 129 212 29.5 1.5
JKOS090 90 140 33.5 156 260 33 2
JKOS100 100 150 33.5 166 290 33 2
JKOS110 110 170 40 228 390 39.5 2.5
JKOS120 120 180 40 236 425 39.5 2.5
JKOS130 130 200 47.5 315 570 47 2.5
JKOS140 140 210 47.5 300 610 47 2.5
JKOS150 150 225 50 355 710 49.5 3
JKOS160 160 240 54.5 390 815 54 3

Cadangan Berita
Kesan penyelenggaraan galas terhadap hayat perkhidmatan
Kesan penyelenggaraan galas terhadap hayat perkhidmatanLihat Lagi >>
Inovasi mendorong kecekapan dan ketahanan
Inovasi mendorong kecekapan dan ketahananLihat Lagi >>
Apabila galas gagal, gejala manakah yang muncul dahulu: haba, getaran atau bunyi?
Apabila galas gagal, gejala manakah yang muncul dahulu: haba, getaran atau bunyi?Lihat Lagi >>
Apakah galas roda motosikal yang paling boleh dipercayai untuk menunggang yang lancar, selamat?
Apakah galas roda motosikal yang paling boleh dipercayai untuk menunggang yang lancar, selamat?Lihat Lagi >>
Cara Memilih Galas Bebola Alur Dalam Yang Tepat untuk Motor Elektrik
Cara Memilih Galas Bebola Alur Dalam Yang Tepat untuk Motor ElektrikLihat Lagi >>
Bahagian Bunyi Motor : Bunyi Galas Biasa vs Bunyi Tidak Normal – Bolehkah Anda Jelaskan Perbezaannya?
Bahagian Bunyi Motor : Bunyi Galas Biasa vs Bunyi Tidak Normal – Bolehkah Anda Jelaskan Perbezaannya?Lihat Lagi >>
X
Kami menggunakan kuki untuk menawarkan anda pengalaman menyemak imbas yang lebih baik, menganalisis trafik tapak dan memperibadikan kandungan. Dengan menggunakan tapak ini, anda bersetuju dengan penggunaan kuki kami.Dasar Privasi
TolakTerima
