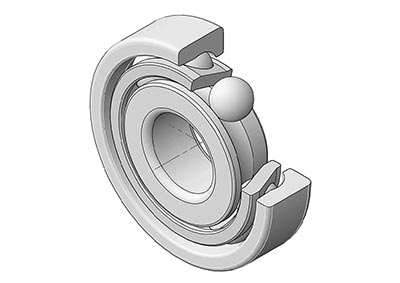

Galas Bebola Sentuhan Sudut
Galas Bebola Sentuhan Sudut direka bentuk dengan laluan lumba pada gelang dalam dan luar yang diimbangi secara relatif antara satu sama lain di sepanjang paksi galas. Konfigurasi ini membolehkan galas untuk menampung gabungan beban jejarian dan paksi secara serentak. Dengan memilih sudut sentuhan yang berbeza, galas boleh dioptimumkan untuk keadaan operasi tertentu, memberikan peningkatan kapasiti beban paksi dan prestasi yang stabil pada kelajuan putaran yang lebih tinggi.
Galas ini digunakan secara meluas dalam sistem automotif, motor elektrik, pam, peralatan mesin, jentera pertanian, dan peralatan industri lain di mana kedua-dua ketepatan dan keupayaan membawa beban diperlukan. Bergantung pada keperluan aplikasi, galas bebola sentuhan sudut boleh dibekalkan dalam susunan galas satu baris, dua baris atau berpadanan.
BMT mengkhususkan diri dalam pembuatan bearing sejak 2004 dan membekalkan penyelesaian galas untuk pengilang, pengedar dan pelanggan industri OEM di seluruh dunia. Semua galas bebola sentuhan sudut dihasilkan di bawah sistem pengurusan kualiti yang diperakui ISO 9001 dan IATF 16949. Proses pengeluaran termasuk pemeriksaan bahan mentah, pengukuran dimensi, ujian getaran, ujian hingar dan pengesahan prestasi untuk memastikan konsistensi dan pematuhan dengan spesifikasi pelanggan. Kemudahan pembuatan kami juga telah lulus audit pembekal Ford Q1 dan Bosch.
Video Galas Bebola Sentuhan Sudut
Video berikut menunjukkan penampilan, butiran pemesinan dan kualiti pembuatan galas bebola sentuhan sudut BMT.
- View as

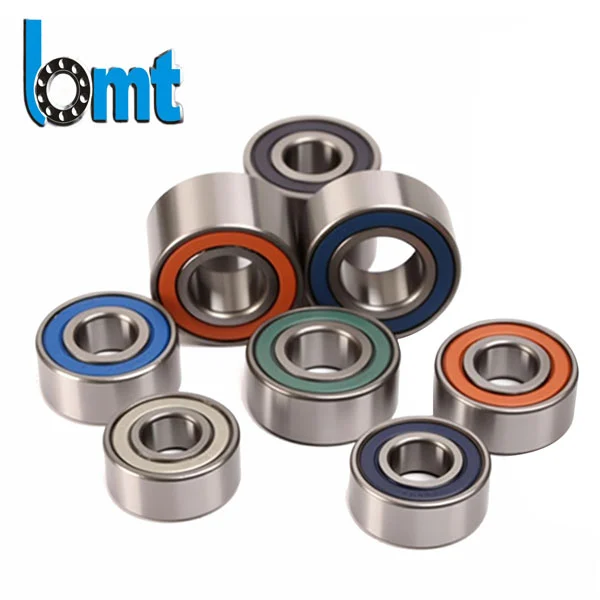

Galas Bebola Sentuhan Sudut Baris Tunggal
Galas Bebola Sentuhan Sudut Baris Tunggal direka untuk memenuhi permintaan kelajuan, ketepatan dan kestabilan yang tinggi dalam aplikasi industri dunia sebenar. Dengan lebih 20 tahun pengalaman pembuatan di Ningbo, China, galas kami membantu pelanggan mengurangkan masa henti, meningkatkan kecekapan mesin dan memanjangkan jangka hayat motor, pam, sistem automotif dan peralatan ketepatan. Sistem pengeluaran kami diperakui ISO9001 dan IATF16949, menyediakan pelanggan global kualiti yang stabil dan boleh dipercayai, penghantaran cepat dan perkongsian bekalan jangka panjang.

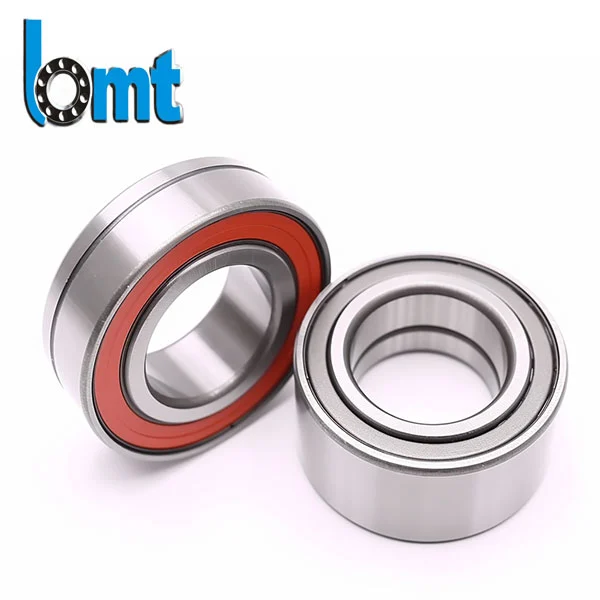

Galas Bebola Sentuhan Empat Mata
Galas Bebola Hubungan Empat Mata kami memenuhi permintaan untuk kapasiti beban paksi dua arah dan prestasi berkelajuan tinggi yang stabil. Dengan lebih 20 tahun pengalaman pembuatan, galas kami digunakan secara meluas dalam kuasa angin, motor dan sistem automasi. Produk kami menampilkan getaran rendah, hayat perkhidmatan yang panjang, dan kami menyediakan perkhidmatan terus kilang yang boleh dipercayai kepada pelanggan OEM di seluruh dunia. Kami menawarkan penyesuaian OEM, harga borong dan penghantaran global yang pantas.

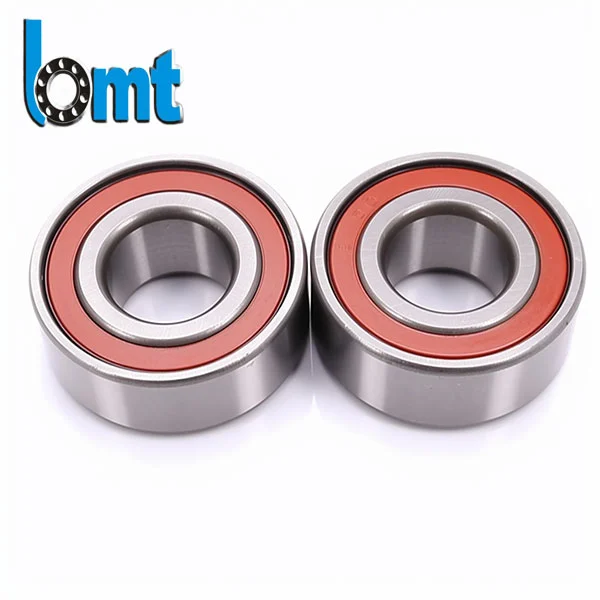

Galas Bebola Sentuhan Sudut Baris Dua Ganda
Galas Bebola Sentuhan Sudut Baris Berganda direka untuk gabungan keadaan beban jejarian dan paksi dalam kedua-dua arah. Galas ini digunakan secara meluas dalam motor, pam, sistem automotif, dan jentera perindustrian di mana putaran yang stabil, hayat perkhidmatan yang panjang, dan kecekapan ruang pemasangan diperlukan.
Kami menyokong pengeluaran OEM, bekalan pukal dan eksport global dengan piawaian pembuatan yang konsisten dan kebolehkesanan kelompok.
Kami menyokong pengeluaran OEM, bekalan pukal dan eksport global dengan piawaian pembuatan yang konsisten dan kebolehkesanan kelompok.

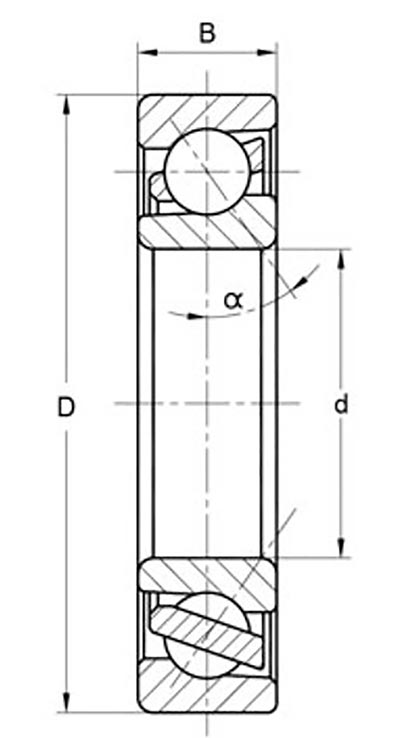

| item | Jenis Seal | d (mm) | D (mm) | B (mm) | Cr Dinamik (N) | Statik Cor (N) | Nota |
| 30/5 | - / 2RS / 2Z | 5 | 14 | 7 | 1810 | 950 | r=0.2mm |
| 30/6 | - / 2RS / 2Z | 6 | 17 | 9 | 3100 | 1420 | r=0.3mm |
| 30/7 | - / 2RS / 2Z | 7 | 19 | 10 | 3650 | 1700 | r=0.3mm |
| 30/8 | - / 2RS / 2Z | 8 | 22 | 11 | 5200 | 2650 | r=0.3mm |
| 3000 | - / 2RS / 2Z | 10 | 26 | 12 | 5700 | 3250 | r=0.3mm |
| 3001 | - / 2RS / 2Z | 12 | 28 | 12 | 6200 | 3750 | r=0.3mm |
| 3002 | - / 2RS / 2Z | 15 | 32 | 13 | 8600 | 5400 | r=0.3mm |
| 3003 | - / 2RS / 2Z | 17 | 35 | 14 | 9200 | 6200 | r=0.3mm |
| 3004 | - / 2RS / 2Z | 20 | 42 | 16 | 14500 | 9600 | r=0.6mm |
| 3005 | - / 2RS / 2Z | 25 | 47 | 16 | 15500 | 11100 | r=0.6mm |
| 3006 | - / 2RS / 2Z | 30 | 55 | 19 | 20300 | 15600 | r=1.0mm |
| 3007 | - / 2RS / 2Z | 35 | 62 | 20 | 24500 | 19400 | r=1.0mm |
| 3008 | - / 2RS / 2Z | 40 | 68 | 21 | 25500 | 21700 | r=1.0mm |
| 3200 | - / 2Z | 10 | 30 | 14 | 7800 | 4550 | r=0.6mm |
| 3201 | - / 2Z | 12 | 32 | 15.9 | 10600 | 5850 | r=0.6mm |
| 3202 | - / 2RS / 2Z | 15 | 35 | 15.9 | 11800 | 7100 | r=0.6mm |
| 3203 | - / 2RS / 2Z | 17 | 40 | 17.5 | 14600 | 9000 | r=0.6mm |
| 3204 | - / 2Z | 20 | 47 | 20.6 | 19600 | 12500 | r=1.0mm |
| 3205 | - / 2RS / 2Z | 25 | 52 | 20.6 | 21200 | 14600 | r=1.0mm |
| 3206 | - / 2RS / 2Z | 30 | 62 | 23.8 | 30000 | 21200 | r=1.0mm |
| 3207 | - / 2RS / 2Z | 35 | 72 | 27 | 39000 | 28500 | r=1.1mm |
| 3208 | - / 2RS / 2Z | 40 | 80 | 30.2 | 48000 | 36500 | r=1.1mm |
| 3209 | - / 2RS / 2Z | 45 | 85 | 30.2 | 48000 | 37500 | r=1.1mm |
| 3210 | - / 2RS / 2Z | 50 | 90 | 30.2 | 51000 | 42500 | r=1.1mm |
| 3211 | - / 2RS / 2Z | 55 | 100 | 33.3 | 58500 | 49000 | r=1.5mm |
| 3212 | - / 2RS / 2Z | 60 | 110 | 36.5 | 72000 | 61000 | r=1.5mm |
| 3213 | - / 2RS / 2Z | 65 | 120 | 38.1 | 80000 | 73500 | r=1.5mm |
| 3214 | - / 2RS / 2Z | 70 | 125 | 39.7 | 83000 | 76500 | r=1.5mm |
| 3215 | - / 2RS / 2Z | 75 | 130 | 41.3 | 91500 | 85000 | r=1.5mm |
| 3216 | - / 2RS / 2Z | 80 | 140 | 44.4 | 98000 | 93000 | r=2.0mm |
| 3217 | - / 2RS / 2Z | 85 | 150 | 49.2 | 112000 | 150000 | r=2.0mm |
| 3218 | - / 2RS / 2Z | 90 | 160 | 52.4 | 125000 | 170000 | r=2.0mm |
| 3219-M | - | 95 | 170 | 55.6 | 140000 | 186000 | r=2.1mm |
| 3220-M | - | 100 | 180 | 60.3 | 144000 | 201600 | r=2.1mm |
| 3221-M | - | 105 | 190 | 65.1 | 162000 | 220500 | r=2.1mm |
| 3222-M | - | 110 | 200 | 69.8 | 183600 | 252000 | r=2.1mm |
| 3302 | - | 15 | 42 | 19 | 16300 | 10000 | r=1.0mm |
| 3303 | - | 17 | 47 | 22.2 | 20800 | 12500 | r=1.0mm |
| 3304 | - / 2RS / 2Z | 20 | 52 | 22.2 | 23200 | 15000 | r=1.1mm |
| 3305 | - / 2RS / 2Z | 25 | 62 | 25.4 | 30000 | 20000 | r=1.1mm |
| 3306 | - / 2RS / 2Z | 30 | 72 | 30.2 | 41500 | 28500 | r=1.1mm |
| 3307 | - / 2RS / 2Z | 35 | 80 | 34.9 | 51000 | 34500 | r=1.5mm |
| 3308 | - / 2RS / 2Z | 40 | 90 | 36.5 | 62000 | 45000 | r=1.5mm |
| 3309 | - / 2RS / 2Z | 45 | 100 | 39.7 | 68000 | 51000 | r=1.5mm |
| 3310 | - / 2RS / 2Z | 50 | 110 | 44.4 | 81500 | 62000 | r=2.0mm |
| 3311 | - / 2RS / 2Z | 55 | 120 | 49.2 | 102000 | 78000 | r=2.0mm |
| 3312 | - / 2RS / 2Z | 60 | 130 | 54 | 125000 | 98000 | r=2.1mm |
| 3313 | - / 2RS / 2Z | 65 | 140 | 58.7 | 143000 | 112000 | r=2.1mm |
| 3314 | - / 2RS / 2Z | 70 | 150 | 63.5 | 143000 | 166000 | r=2.1mm |
| 3315 | - / 2RS / 2Z | 75 | 160 | 68.3 | 146700 | 173700 | r=2.1mm |
| 3316-M | - | 80 | 170 | 68.3 | 158400 | 190800 | r=2.1mm |
| 3317-M | - | 85 | 180 | 73 | 171000 | 205200 | r=3.0mm |
| 3318-M | - | 90 | 190 | 73 | 194400 | 247500 | r=3.0mm |
| 3319-M | - | 95 | 200 | 77.8 | 198000 | 256500 | r=3.0mm |
| 3320-M | - | 100 | 215 | 82.6 | 212400 | 288000 | r=3.0mm |
| 3322-M | - | 110 | 240 | 92.1 | 243000 | 351000 | r=3.0mm |
| 3800 | - / 2RS / 2Z | 10 | 19 | 7 | 2120 | 1400 | r=0.3mm |
| 3801 | - / 2RS / 2Z | 12 | 21 | 7 | 2190 | 1550 | r=0.3mm |
| 3802 | - / 2RS / 2Z | 15 | 24 | 7 | 2430 | 1960 | r=0.3mm |
| 3803 | - / 2RS / 2Z | 17 | 26 | 7 | 2480 | 2080 | r=0.3mm |
| 3804 | - / 2RS / 2Z | 20 | 32 | 10 | 5800 | 4850 | r=0.3mm |
| 3805 | - / 2RS / 2Z | 25 | 37 | 10 | 6000 | 5600 | r=0.3mm |
| 3806 | - / 2RS / 2Z | 30 | 42 | 10 | 6300 | 6100 | r=0.3mm |
| 3807 | - / 2RS / 2Z | 35 | 47 | 10 | 6700 | 7000 | r=0.3mm |
| 3808 | - / 2RS / 2Z | 40 | 52 | 10 | 7000 | 7800 | r=0.3mm |
| 3809 | - / 2RS / 2Z | 45 | 58 | 10 | 7200 | 8300 | r=0.3mm |
| 3810 | - / 2RS / 2Z | 50 | 65 | 12 | 8700 | 10400 | r=0.3mm |
| 3811 | - / 2RS / 2Z | 55 | 72 | 13 | 12100 | 15700 | r=0.3mm |
| 3812 | - / 2RS / 2Z | 60 | 78 | 14 | 14500 | 17500 | r=0.3mm |
| 3813 | - / 2RS / 2Z | 65 | 85 | 15 | 17700 | 21400 | r=0.6mm |
| 3814 | - / 2RS / 2Z | 70 | 90 | 15 | 19200 | 23800 | r=0.6mm |
| 3815 | - / 2RS / 2Z | 75 | 95 | 15 | 19400 | 24400 | r=0.6mm |
| 3816 | - / 2RS / 2Z | 80 | 100 | 15 | 19600 | 25500 | r=0.6mm |
| 7200B | - / 2RS | 10 | 30 | 9 | 5040 | 2470 | r=0.6mm, r1=0.3mm, a=13° |
| 7201B | - / 2RS | 12 | 32 | 10 | 7030 | 3370 | r=0.6mm, r1=0.3mm, a=14° |
| 7202B | - / 2RS | 15 | 35 | 11 | 7980 | 4230 | r=0.6mm, r1=0.3mm, a=16° |
| 7203B | - / 2RS | 17 | 40 | 12 | 9980 | 5420 | r=0.6mm, r1=0.3mm, a=18° |
| 7204B | - / 2RS | 20 | 47 | 14 | 13300 | 7410 | r=1.0mm, r1=0.6mm, a=21° |
| 7205B | - / 2RS | 25 | 52 | 15 | 14540 | 8550 | r=1.0mm, r1=0.6mm, a=24° |
| 7206B | - / 2RS | 30 | 62 | 16 | 20620 | 13400 | r=1.0mm, r1=0.6mm, a=27° |
| 7207B | - / 2RS | 35 | 72 | 17 | 26600 | 18050 | r=1.1mm, r1=0.6mm, a=31° |
| 7208B | - / 2RS | 40 | 80 | 18 | 32300 | 22330 | r=1.1mm, r1=0.6mm, a=34° |
| 7209B | - / 2RS | 45 | 85 | 19 | 35630 | 25650 | r=1.1mm, r1=0.6mm, a=37° |
| 7210B | - / 2RS | 50 | 90 | 20 | 37050 | 27080 | r=1.1mm, r1=0.6mm, a=39° |
| 7211B | - / 2RS | 55 | 100 | 21 | 46550 | 36580 | r=1.5mm, r1=1.0mm, a=43° |
| 7212B | - / 2RS | 60 | 110 | 22 | 56050 | 42750 | r=1.5mm, r1=1.0mm, a=47° |
| 7213B | - | 65 | 120 | 23 | 60300 | 49500 | r=1.5mm, r1=1.0mm, a=51° |
| 7214B | - | 70 | 125 | 24 | 66600 | 55800 | r=1.5mm, r1=1.0mm, a=53° |
| 7215B | - | 75 | 130 | 25 | 65700 | 55800 | r=1.5mm, r1=1.0mm, a=56° |
| 7216B | - | 80 | 140 | 26 | 76500 | 64800 | r=2.0mm, r1=1.0mm, a=59° |
| 7217B | - | 85 | 150 | 28 | 87300 | 77400 | r=2.0mm, r1=1.0mm, a=63° |
| 7218B | - | 90 | 160 | 30 | 102600 | 88200 | r=2.0mm, r1=1.0mm, a=67° |
| 7219B | - | 95 | 170 | 32 | 110700 | 95400 | r=2.1mm, r1=1.1mm, a=72° |
| 7220B M | - | 100 | 180 | 34 | 127800 | 111600 | r=2.1mm, r1=1.1mm, a=76° |
| 7221B M | - | 105 | 190 | 36 | 139500 | 127800 | r=2.1mm, r1=1.1mm, a=80° |
| 7222B M | - | 110 | 200 | 38 | 150300 | 138600 | r=2.1mm, r1=1.1mm, a=84° |
| 7224B M | - | 120 | 215 | 40 | 163800 | 160200 | r=2.1mm, r1=1.1mm, a=90° |
| 7226B M | - | 130 | 230 | 40 | 180000 | 183600 | r=3.0mm, r1=1.1mm, a=96° |
| 7228B M | - | 140 | 250 | 42 | 192600 | 207900 | r=3.0mm, r1=1.1mm, a=103° |
| 7230B M | - | 150 | 270 | 45 | 220500 | 247500 | r=3.0mm, r1=1.1mm, a=111° |
| 7232B M | - | 160 | 290 | 48 | 212400 | 252000 | r=3.0mm, r1=1.1mm, a=118° |
| 7234B M | - | 170 | 310 | 52 | 238500 | 292500 | r=4.0mm, r1=1.5mm, a=127° |
| 7301B | - | 12 | 37 | 12 | 10830 | 5040 | r=1.0mm, r1=0.6mm, a=16° |
| 7302B | - / 2RS | 15 | 42 | 13 | 13490 | 6840 | r=1.0mm, r1=0.6mm, a=18° |
| 7303B | - / 2RS | 17 | 47 | 14 | 16720 | 8550 | r=1.0mm, r1=0.6mm, a=20° |
| 7304B | - / 2RS | 20 | 52 | 15 | 19380 | 10550 | r=1.1mm, r1=0.6mm, a=23° |
| 7305B | - / 2RS | 25 | 62 | 17 | 26600 | 15010 | r=1.1mm, r1=0.6mm, a=27° |
| 7306B | - / 2RS | 30 | 72 | 19 | 33730 | 21000 | r=1.1mm, r1=0.6mm, a=31° |
| 7307B | - / 2RS | 35 | 80 | 21 | 40850 | 26130 | r=1.5mm, r1=1.0mm, a=35° |
| 7308B | - / 2RS | 40 | 90 | 23 | 50350 | 32780 | r=1.5mm, r1=1.0mm, a=39° |
| 7309B | - / 2RS | 45 | 100 | 25 | 61750 | 40850 | r=1.5mm, r1=1.0mm, a=43° |
| 7310B | - / 2RS | 50 | 110 | 27 | 71250 | 47500 | r=2.0mm, r1=1.0mm, a=47° |
| 7311B | - / 2RS | 55 | 120 | 29 | 81700 | 57950 | r=2.0mm, r1=1.0mm, a=51° |
| 7312B | - / 2RS | 60 | 130 | 31 | 91200 | 65550 | r=2.1mm, r1=1.1mm, a=55° |
| 7313B | - | 65 | 140 | 33 | 99000 | 73800 | r=2.1mm, r1=1.1mm, a=60° |
| 7314B | - | 70 | 150 | 35 | 113400 | 83700 | r=2.1mm, r1=1.1mm, a=64° |
| 7315B | - | 75 | 160 | 37 | 126000 | 96300 | r=2.1mm, r1=1.1mm, a=68° |
| 7316B | - | 80 | 170 | 39 | 139500 | 111600 | r=2.1mm, r1=1.1mm, a=72° |
| 7317B | - | 85 | 180 | 41 | 150300 | 124200 | r=3.0mm, r1=1.1mm, a=76° |
| 7318B | - | 90 | 190 | 43 | 162000 | 139500 | r=3.0mm, r1=1.1mm, a=80° |
| 7319B | - | 95 | 200 | 45 | 170100 | 150300 | r=3.0mm, r1=1.1mm, a=84° |
| 7320B M | - | 100 | 215 | 47 | 192600 | 177300 | r=3.0mm, r1=1.1mm, a=90° |
| 7321B M | - | 105 | 225 | 49 | 202500 | 192600 | r=3.0mm, r1=1.1mm, a=94° |
| 7322B M | - | 110 | 240 | 50 | 225000 | 220500 | r=3.0mm, r1=1.1mm, a=98° |
| 7324B M | - | 120 | 260 | 55 | 247500 | 256500 | r=3.0mm, r1=1.1mm, a=107° |
| 7326B M | - | 130 | 280 | 58 | 274500 | 292500 | r=4.0mm, r1=1.5mm, a=115° |
| 7328B M | - | 140 | 300 | 62 | 270000 | 310500 | r=4.0mm, r1=1.5mm, a=123° |
| 7330B M | - | 150 | 320 | 65 | 292500 | 351000 | r=4.0mm, r1=1.5mm, a=131° |
| 7332B M | - | 160 | 340 | 68 | 324000 | 405000 | r=4.0mm, r1=1.5mm, a=139° |
| 7334B M | - | 170 | 360 | 72 | 364500 | 477000 | r=4.0mm, r1=1.5mm, a=147° |
| 7406 ACM | - | 30 | 90 | 23 | 55600 | 37700 | sudut=25° |
| 7406 BM | - | 30 | 90 | 23 | 47500 | 29000 | sudut=40° |
| 7407 ACM | - | 35 | 100 | 25 | 66400 | 41900 | sudut=25° |
| 7407 BM | - | 35 | 100 | 25 | 60500 | 38000 | sudut=40° |
| 7408 ACM | - | 40 | 110 | 27 | 73700 | 42100 | sudut=25° |
| 7408 BM | - | 40 | 110 | 27 | 70200 | 45000 | sudut=40° |
| 7409 ACM | - | 45 | 120 | 29 | 84500 | 55100 | sudut=25° |
| 7409 BM | - | 45 | 120 | 29 | 80700 | 44100 | sudut=40° |
| 7410 ACM | - | 50 | 130 | 31 | 115800 | 78300 | sudut=25° |
| 7410 BM | - | 50 | 130 | 31 | 95600 | 64000 | sudut=40° |
| 7411 ACM | - | 55 | 140 | 33 | 121400 | 84500 | sudut=25° |
| 7411 BM | - | 55 | 140 | 33 | 111000 | 76500 | sudut=40° |
| 7412 ACM | - | 60 | 150 | 35 | 131800 | 95300 | sudut=25° |
| 7412 BM | - | 60 | 150 | 35 | 119000 | 86500 | sudut=40° |
| QJ208 | - | 40 | 80 | 18 | 52700 | 45000 | r=1.1mm, Cu=3050N, Grease:6900rpm |
| QJ209 | - | 45 | 85 | 19 | 58500 | 51000 | r=1.1mm, Cu=3500N, Grease:6200rpm |
| QJ210 | - | 50 | 90 | 20 | 61800 | 56000 | r=1.1mm, Cu=3800N, Grease:5600rpm |
| QJ211 | - | 55 | 100 | 21 | 79300 | 76500 | r=1.5mm, Cu=4800N, Grease:5100rpm |
| QJ212 | - | 60 | 110 | 22 | 92300 | 86500 | r=1.5mm, Cu=5900N, Grease:4700rpm |
| QJ213 | - | 65 | 120 | 23 | 104000 | 110000 | r=1.5mm, Cu=6550N, Grease:4400rpm |
| QJ214 | - | 70 | 125 | 24 | 114000 | 120000 | r=1.5mm, Cu=7150N, Grease:4000rpm |
| QJ215 | - | 75 | 130 | 25 | 117000 | 122000 | r=1.5mm, Cu=7550N, Grease:3800rpm |
| QJ216 | - | 80 | 140 | 26 | 138000 | 146000 | r=2.0mm, Cu=8650N, Grease:3500rpm |
| QJ217 | - | 85 | 150 | 28 | 148000 | 160000 | r=2.0mm, Cu=9650N, Grease:3300rpm |
| QJ218 | - | 90 | 160 | 30 | 174000 | 186000 | r=2.0mm, Cu=11100N, Grease:3100rpm |
| QJ219 | - | 95 | 170 | 32 | 199000 | 210000 | r=2.1mm, Cu=12400N, Grease:3000rpm |
| QJ220 | - | 100 | 180 | 34 | 225000 | 240000 | r=2.1mm, Cu=12900N, Grease:2800rpm |
| QJ222 | - | 110 | 200 | 38 | 265000 | 305000 | r=2.1mm, Cu=15500N, Grease:2500rpm |
| QJ224 | - | 120 | 215 | 40 | 286000 | 340000 | r=2.1mm, Cu=17700N, Grease:2300rpm |
| QJ306 | - | 30 | 72 | 19 | 44000 | 57500 | r=1.1mm, Cu=2460N, Grease:8000rpm |
| QJ307 | - | 30 | 80 | 21 | 55000 | 73000 | r=1.5mm, Cu=3150N, Grease:7000rpm |
| QJ308 | - | 40 | 90 | 23 | 67000 | 91500 | r=1.5mm, Cu=3950N, Grease:6200rpm |
| QJ309 | - | 45 | 100 | 25 | 87000 | 121000 | r=1.5mm, Cu=5200N, Grease:5500rpm |
| QJ310 | - | 50 | 110 | 27 | 102000 | 145000 | r=2.0mm, Cu=6200N, Grease:5000rpm |
| QJ311 | - | 55 | 120 | 29 | 118000 | 170000 | r=2.0mm, Cu=7300N, Grease:4600rpm |
| QJ312 | - | 60 | 130 | 31 | 135000 | 198000 | r=2.1mm, Cu=8500N, Grease:4200rpm |
| QJ313 | - | 65 | 140 | 33 | 153000 | 228000 | r=2.1mm, Cu=9700N, Grease:3900rpm |
| QJ314 | - | 70 | 150 | 35 | 172000 | 260000 | r=2.1mm, Cu=10700N, Grease:3600rpm |
| QJ315 | - | 75 | 160 | 37 | 187000 | 294000 | r=2.1mm, Cu=11700N, Grease:3400rpm |
| QJ316 | - | 80 | 170 | 39 | 202000 | 330000 | r=2.1mm, Cu=12700N, Grease:3200rpm |
| QJ317 | - | 85 | 180 | 41 | 218000 | 370000 | r=3.0mm, Cu=13800N, Grease:3000rpm |
| QJ318 | - | 90 | 190 | 43 | 235000 | 410000 | r=3.0mm, Cu=14800N, Grease:2800rpm |
| QJ319 | - | 95 | 200 | 45 | 251000 | 450000 | r=3.0mm, Cu=16000N, Grease:2700rpm |
| QJ320 | - | 100 | 215 | 47 | 302000 | 585000 | r=3.0mm, Cu=20000N, Grease:2500rpm |
| QJ322 | - | 110 | 240 | 50 | 338000 | 680000 | r=3.0mm, Cu=22100N, Grease:2300rpm |
| QJ324 | - | 120 | 260 | 55 | 359000 | 765000 | r=3.0mm, Cu=23800N, Grease:2100rpm |
| VLU 200414 | - | 304 | 518 | 111 | 111000 | 110000 | Paksi:Ca=169kN/Coa=295kN |
| VLU 200544 | - | 434 | 648 | 123 | 123000 | 145000 | Paksi:Ca=188kN/Coa=385kN |
| VLU 200644 | - | 534 | 748 | 131 | 131000 | 171000 | Paksi:Ca=200kN/Coa=455kN |
| VLU 200744 | - | 634 | 848 | 138 | 138000 | 198000 | Paksi:Ca=211kN/Coa=530kN |
| VLU 200844 | - | 734 | 948 | 145 | 145000 | 224000 | Paksi:Ca=222kN/Coa=600kN |
| VLU 200944 | - | 834 | 1048 | 151 | 151000 | 250000 | Paksi:Ca=231kN/Coa=670kN |
| VLU 201094 | - | 984 | 1198 | 160 | 160000 | 290000 | Paksi:Ca=244kN/Coa=770kN |
| VSU 200414 | - | 342 | 486 | 111 | 111000 | 248000 | Paksi:Ca=169kN/Coa=560kN |
| VSU 200544 | - | 472 | 616 | 123 | 123000 | 325000 | Paksi:Ca=188kN/Coa=740kN |
| VSU 200644 | - | 572 | 716 | 131 | 131000 | 385000 | Paksi:Ca=200kN/Coa=880kN |
| VSU 200744 | - | 672 | 816 | 138 | 138000 | 445000 | Paksi:Ca=211kN/Coa=1010kN |
| VSU 200844 | - | 772 | 916 | 145 | 145000 | 510000 | Paksi:Ca=222kN/Coa=1150kN |
| VSU 200944 | - | 872 | 1016 | 151 | 151000 | 570000 | Paksi:Ca=231kN/Coa=1280kN |
| VSU 201094 | - | 1022 | 1166 | 160 | 160000 | 660000 | Paksi:Ca=244kN/Coa=1490kN |
