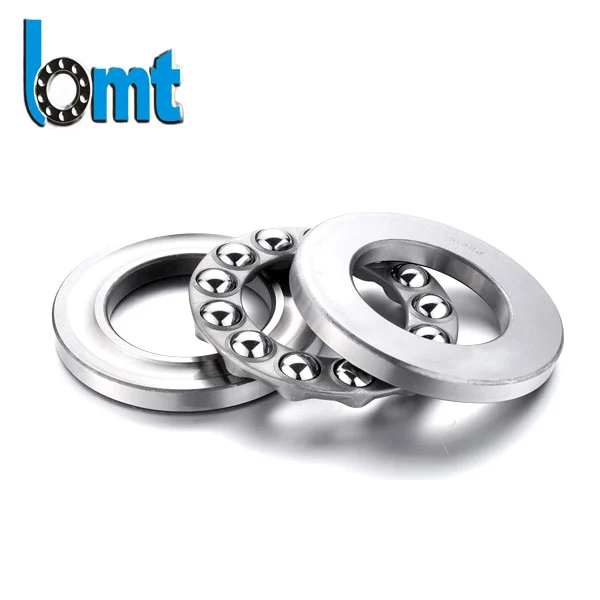

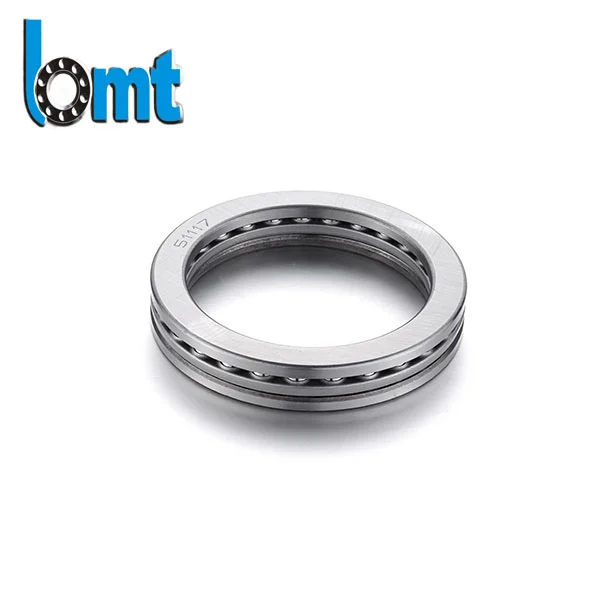

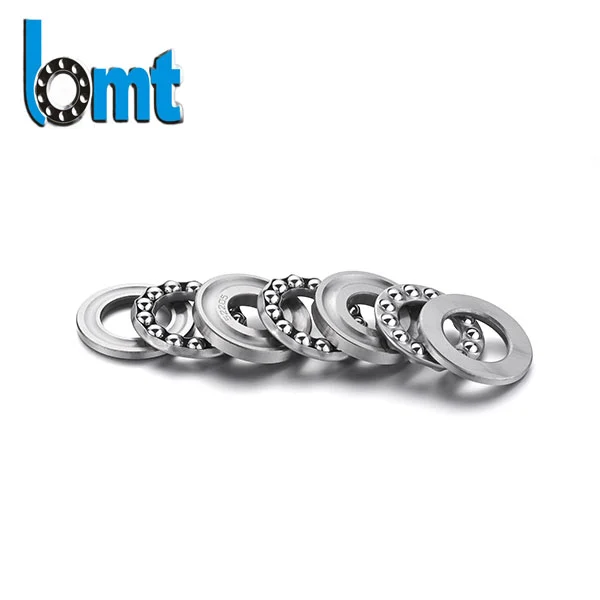

Galas bola tujahan arah tunggal
Sebagai pengilang galas tujah arah tunggal terkemuka di China, BMT memberi tumpuan kepada menyediakan penyelesaian yang boleh dipercayai yang dapat bertindak balas dengan tepat terhadap keperluan beban paksi unidirectional. Barisan produk kami meliputi model seperti 51105 dan 51210, yang menggunakan galas bola baris tunggal dan reka bentuk raceway rata. Mereka benar-benar bersinar dalam senario seperti transmisi kereta, sistem pam, dan jentera perindustrian-di mana-mana sahaja yang perlu mengendalikan beban galas berat.
3 Kelebihan Utama untuk Aplikasi Perindustrian
1. Pengendalian beban satu arah yang cekap
Mengambil model 51315 sebagai contoh, raceway tanah ketepatannya sama rata boleh mengedarkan beban paksi pada baris bola. Data ujian sebenar menunjukkan bahawa di bawah beban 120 kN, haus galas bola tujahan arah tunggal kami dikurangkan sebanyak 35% berbanding dengan reka bentuk konvensional. Reka bentuk yang dioptimumkan ini berasal dari penyelidikan dan pembangunan bersama dengan pengeluar kotak gear automotif terkemuka, khususnya menangani isu kerosakan pramatang.
2. Operasi geseran rendah
Permukaan raceway digilap (kekasaran ≤0.6μm), dan dengan reka bentuk kelengkungan bola yang dioptimumkan, ia dapat mengurangkan geseran sebanyak 20%, menjadikan galas bola tujahan tunggal kami sangat sesuai untuk senario operasi berkelajuan tinggi. Selepas menggantikan galas peranti pemacu gelendong dengan model 51208 kami, kilang jentera tekstil di India mengurangkan penggunaan tenaga sebanyak 12%.
3. Prestasi jangka panjang yang boleh dipercayai
Galas kami dibuat dari keluli gatal GCR15 (kekerasan HRC 60-64) dan menjalani proses rawatan haba khas, jadi mereka memegang prestasi mantap walaupun di bawah beban jangka panjang. Ambil satu contoh: Setelah memasang galas 51120 kami ke dalam sistem penghantar mereka, sebuah firma peralatan perlombongan Australia memperluaskan kitaran penggantian mereka dari 8 bulan hingga 18 bulan.
Parameter teknikal
| Galas bola tujahan arah tunggal | |||||||||||||||
| Model galas yang berkaitan | Dimensi (mm) | Penilaian Beban Asas | |||||||||||||
| Galas kod | Mesin basuh tempat duduk | d | D | T | D1 | d1 | R min. | R | A | D2 | D3 | C | T1 | Dyn. CA KN | Stat. Kos kn |
| 51100 | – | 10 | 24 | 9 | 11 | 24 | 0.3 | – | – | – | – | – | – | 10 | 14 |
| 51200 | – | 10 | 26 | 11 | 12 | 26 | 0.6 | – | – | – | – | – | – | 12.7 | 17 |
| 53200 | – | 10 | 26 | 11.6 | 12 | 26 | 0.6 | 22 | 8.5 | – | – | – | – | 12.7 | 17 |
| 53200 | U200 | 10 | 26 | 11.6 | 12 | 26 | 0.6 | 22 | 8.5 | 18 | 28 | 3.5 | 13 | 12.7 | 17 |
| 51101 | – | 12 | 26 | 9 | 13 | 26 | 0.3 | – | – | – | – | – | – | 10.4 | 15.3 |
| 51201 | – | 12 | 28 | 11 | 14 | 28 | 0.6 | – | – | – | – | – | – | 13.2 | 19 |
| 53201 | – | 12 | 28 | 11.4 | 14 | 28 | 0.6 | 25 | 11.5 | – | – | – | – | 13.2 | 19 |
| 53201 | U201 | 12 | 28 | 11.4 | 14 | 28 | 0.6 | 25 | 11.5 | 20 | 30 | 3.5 | 13 | 13.2 | 19 |
| 51102 | – | 15 | 28 | 9 | 16 | 28 | 0.3 | – | – | – | – | – | – | 10.6 | 16.6 |
| 51202 | – | 15 | 32 | 12 | 17 | 32 | 0.6 | – | – | – | – | – | – | 16.6 | 25 |
| 53202 | – | 15 | 32 | 13.3 | 17 | 32 | 0.6 | 28 | 12 | – | – | – | – | 16.6 | 25 |
| 53202 | U202 | 15 | 32 | 13.3 | 17 | 32 | 0.6 | 28 | 12 | 24 | 35 | 4 | 15 | 16.6 | 25 |
| 51103 | – | 17 | 30 | 9 | 18 | 30 | 0.3 | – | – | – | – | – | – | 11.4 | 19.6 |
| 51203 | – | 17 | 35 | 12 | 19 | 35 | 0.6 | – | – | – | – | – | – | 17.3 | 27.5 |
| 53203 | – | 17 | 35 | 13.2 | 19 | 35 | 0.6 | 32 | 16 | – | – | – | – | 17.3 | 27.5 |
| 53203 | U203 | 17 | 35 | 13.2 | 19 | 35 | 0.6 | 32 | 16 | 26 | 38 | 4 | 15 | 17.3 | 27.5 |
| 51104 | – | 20 | 35 | 10 | 21 | 35 | 0.3 | – | – | – | – | – | – | 15 | 26.5 |
| 51204 | – | 20 | 40 | 14 | 22 | 40 | 0.6 | – | – | – | – | – | – | 22.4 | 37.5 |
| 53204 | – | 20 | 40 | 14.7 | 22 | 40 | 0.6 | 36 | 18 | – | – | – | – | 22.4 | 37.5 |
| 53204 | U204 | 20 | 40 | 14.7 | 22 | 40 | 0.6 | 36 | 18 | 30 | 42 | 5 | 17 | 22.4 | 37.5 |
| 51105 | – | 25 | 42 | 11 | 26 | 42 | 0.6 | – | – | – | – | – | – | 18 | 35.5 |
| 51205 | – | 25 | 47 | 15 | 27 | 47 | 0.6 | – | – | – | – | – | – | 28 | 50 |
| 53205 | – | 25 | 47 | 16.7 | 27 | 47 | 0.6 | 40 | 19 | – | – | – | – | 28 | 50 |
| 53205 | U205 | 25 | 47 | 16.7 | 27 | 47 | 0.6 | 40 | 19 | 36 | 50 | 5.5 | 19 | 28 | 50 |
| 51305 | – | 25 | 52 | 18 | 27 | 52 | 1 | – | – | – | – | – | – | 34.5 | 55 |
| 53305 | – | 25 | 52 | 19.8 | 27 | 52 | 1 | 45 | 21 | – | – | – | – | 34.5 | 55 |
| 53305 | U305 | 25 | 52 | 19.8 | 27 | 52 | 1 | 45 | 21 | 38 | 55 | 6 | 22 | 34.5 | 55 |
| 51405 | – | 25 | 60 | 24 | 27 | 60 | 1 | – | – | – | – | – | – | 45.5 | 67 |
| 51106 | – | 30 | 47 | 11 | 32 | 47 | 0.6 | – | – | – | – | – | – | 19 | 40 |
| 51206 | – | 30 | 52 | 16 | 32 | 52 | 0.6 | – | – | – | – | – | – | 25 | 46.5 |
| 53206 | – | 30 | 52 | 17.8 | 32 | 52 | 0.6 | 45 | 22 | – | – | – | – | 25 | 46.5 |
| 53206 | U206 | 30 | 52 | 17.8 | 32 | 52 | 0.6 | 45 | 22 | 42 | 55 | 5.5 | 20 | 25 | 46.5 |
| 51306 | – | 30 | 60 | 21 | 32 | 60 | 1 | – | – | – | – | – | – | 38 | 65.5 |
| 53306 | – | 30 | 60 | 22.6 | 32 | 60 | 1 | 50 | 22 | – | – | – | – | 38 | 65.5 |
| 53306 | U306 | 30 | 60 | 22.6 | 32 | 60 | 1 | 50 | 22 | 45 | 62 | 7 | 25 | 38 | 65.5 |
| 51406 | – | 30 | 70 | 28 | 32 | 70 | 1 | – | – | – | – | – | – | 69.5 | 112 |
| 51107 | – | 35 | 52 | 12 | 37 | 52 | 0.6 | – | – | – | – | – | – | 20 | 46.5 |
| 51207 | – | 35 | 62 | 18 | 37 | 62 | 1 | – | – | – | – | – | – | 35.5 | 67 |
| 53207 | – | 35 | 62 | 19.9 | 37 | 62 | 1 | 50 | 24 | – | – | – | – | 35.5 | 67 |
| 53207 | U207 | 35 | 62 | 19.9 | 37 | 62 | 1 | 50 | 24 | 48 | 65 | 7 | 22 | 35.5 | 67 |
| 51307 | – | 35 | 68 | 24 | 37 | 68 | 1 | – | – | – | – | – | – | 50 | 88 |
| 53307 | – | 35 | 68 | 25.6 | 37 | 68 | 1 | 56 | 24 | – | – | – | – | 50 | 88 |
| 53307 | U307 | 35 | 68 | 25.6 | 37 | 68 | 1 | 56 | 24 | 52 | 72 | 7.5 | 28 | 50 | 88 |
| 51407 | – | 35 | 80 | 32 | 37 | 80 | 1.1 | – | – | – | – | – | – | 76.5 | 127 |
| 51108 | – | 40 | 60 | 13 | 42 | 60 | 0.6 | – | – | – | – | – | – | 27 | 63 |
| 51208 | – | 40 | 68 | 19 | 42 | 68 | 1 | – | – | – | – | – | – | 46.5 | 98 |
| 53208 | – | 40 | 68 | 20.3 | 42 | 68 | 1 | 56 | 28.5 | – | – | – | – | 46.5 | 98 |
| 53208 | U208 | 40 | 68 | 20.3 | 42 | 68 | 1 | 56 | 28.5 | 55 | 72 | 7 | 23 | 46.5 | 98 |
| 51308 | – | 40 | 78 | 26 | 42 | 78 | 1 | – | – | – | – | – | – | 61 | 112 |
| 53308 | – | 40 | 78 | 28.5 | 42 | 78 | 1 | 64 | 28 | – | – | – | – | 61 | 112 |
| 53308 | U308 | 40 | 78 | 28.5 | 42 | 78 | 1 | 64 | 28 | 60 | 82 | 8.5 | 31 | 61 | 112 |
| 51408 | – | 40 | 90 | 36 | 42 | 90 | 1.1 | – | – | – | – | – | – | 96.5 | 170 |
| 51109 | – | 45 | 65 | 14 | 47 | 65 | 0.6 | – | – | – | – | – | – | 28 | 69.5 |
| 51209 | – | 45 | 73 | 20 | 47 | 73 | 1 | – | – | – | – | – | – | 39 | 80 |
| 53209 | – | 45 | 73 | 21.3 | 47 | 73 | 1 | 56 | 26 | – | – | – | – | 39 | 80 |
| 53209 | U209 | 45 | 73 | 21.3 | 47 | 73 | 1 | 56 | 26 | 60 | 78 | 7.5 | 24 | 39 | 80 |
| 51309 | – | 45 | 85 | 28 | 47 | 85 | 1 | – | – | – | – | – | – | 75 | 140 |
| 53309 | – | 45 | 85 | 30.1 | 47 | 85 | 1 | 64 | 25 | – | – | – | – | 75 | 140 |
| 53309 | U309 | 45 | 85 | 30.1 | 47 | 85 | 1 | 64 | 25 | 65 | 90 | 10 | 33 | 75 | 140 |
| 51409 | – | 45 | 100 | 39 | 47 | 100 | 1.1 | – | – | – | – | – | – | 122 | 220 |
| 51110 | – | 50 | 70 | 14 | 52 | 70 | 0.6 | – | – | – | – | – | – | 29 | 75 |
| 51210 | – | 50 | 78 | 22 | 52 | 78 | 1 | – | – | – | – | – | – | 50 | 106 |
| 53210 | – | 50 | 78 | 23.5 | 52 | 78 | 1 | 64 | 32.5 | – | – | – | – | 50 | 106 |
| 53210 | U210 | 50 | 78 | 23.5 | 52 | 78 | 1 | 64 | 32.5 | 62 | 82 | 7.5 | 26 | 50 | 106 |
| 51310 | – | 50 | 95 | 31 | 52 | 95 | 1.1 | – | – | – | – | – | – | 86.5 | 170 |
| 53310 | – | 50 | 95 | 34.3 | 52 | 95 | 1.1 | 72 | 28 | – | – | – | – | 86.5 | 170 |
| 53310 | U310 | 50 | 95 | 34.3 | 52 | 95 | 1.1 | 72 | 28 | 72 | 100 | 11 | 37 | 86.5 | 170 |
| 51410 | – | 50 | 110 | 43 | 52 | 110 | 1.5 | – | – | – | – | – | – | 137 | 255 |
| 51111 | – | 55 | 78 | 16 | 57 | 78 | 0.6 | – | – | – | – | – | – | 30.5 | 75 |
| 51211 | – | 55 | 90 | 25 | 57 | 90 | 1 | – | – | – | – | – | – | 61 | 134 |
| 53211 | – | 55 | 90 | 27.3 | 57 | 90 | 1 | 72 | 35 | – | – | – | – | 61 | 134 |
| 53211 | U211 | 55 | 90 | 27.3 | 57 | 90 | 1 | 72 | 35 | 72 | 95 | 9 | 30 | 61 | 134 |
| 51311 | – | 55 | 105 | 35 | 57 | 105 | 1.1 | – | – | – | – | – | – | 102 | 208 |
| 53311 | – | 55 | 105 | 39.3 | 57 | 105 | 1.1 | 80 | 30 | – | – | – | – | 102 | 208 |
| 53311 | U311 | 55 | 105 | 39.3 | 57 | 105 | 1.1 | 80 | 30 | 80 | 110 | 11.5 | 42 | 102 | 208 |
| 51411 | – | 55 | 120 | 48 | 57 | 120 | 1.5 | – | – | – | – | – | – | 180 | 360 |
| 51112 | – | 60 | 85 | 17 | 62 | 85 | 1 | – | – | – | – | – | – | 39.4 | 106.4 |
| 51212 | – | 60 | 95 | 26 | 62 | 95 | 1 | – | – | – | – | – | – | 58.9 | 133 |
| 53212 | – | 60 | 95 | 28 | 62 | 95 | 1 | 72 | 32.5 | – | – | – | – | 58.9 | 133 |
| 53212 | U212 | 60 | 95 | 28 | 62 | 95 | 1 | 72 | 32.5 | 78 | 100 | 9 | 31 | 58.9 | 133 |
| 51312 | – | 60 | 110 | 35 | 62 | 110 | 1.1 | – | – | – | – | – | – | 95 | 197.6 |
| 53312 | – | 60 | 110 | 38.3 | 62 | 110 | 1.1 | 90 | 41 | – | – | – | – | 95 | 197.6 |
| 53312 | U312 | 60 | 110 | 38.3 | 62 | 110 | 1.1 | 90 | 41 | 85 | 115 | 11.5 | 42 | 95 | 197.6 |
| 51412 | – | 60 | 130 | 51 | 62 | 130 | 1.5 | – | – | – | – | – | – | 190 | 380 |
| 51113 | – | 65 | 90 | 18 | 67 | 90 | 1 | – | – | – | – | – | – | 36.1 | 95 |
| 51213 | – | 65 | 100 | 27 | 67 | 100 | 1 | – | – | – | – | – | – | 60.8 | 142.5 |
| 53213 | – | 65 | 100 | 28.7 | 67 | 100 | 1 | 80 | 40 | – | – | – | – | 60.8 | 142.5 |
| 53213 | U213 | 65 | 100 | 28.7 | 67 | 100 | 1 | 80 | 40 | 82 | 105 | 9 | 32 | 60.8 | 142.5 |
| 51313 | – | 65 | 115 | 36 | 67 | 115 | 1.1 | – | – | – | – | – | – | 100.7 | 209 |
| 53313 | – | 65 | 115 | 39.4 | 67 | 115 | 1.1 | 90 | 38.5 | – | – | – | – | 100.7 | 209 |
| 53313 | U313 | 65 | 115 | 39.4 | 67 | 115 | 1.1 | 90 | 38.5 | 90 | 120 | 12.5 | 43 | 100.7 | 209 |
| 51413 | – | 65 | 140 | 56 | 68 | 140 | 2 | – | – | – | – | – | – | 205.2 | 427.5 |
| 51114 | – | 70 | 95 | 18 | 72 | 95 | 1 | – | – | – | – | – | – | 38 | 104.5 |
| 51214 | – | 70 | 105 | 27 | 72 | 105 | 1 | – | – | – | – | – | – | 62.2 | 152 |
| 53214 | – | 70 | 105 | 28.8 | 72 | 105 | 1 | 80 | 38 | – | – | – | – | 62.2 | 152 |
| 53214 | U214 | 70 | 105 | 28.8 | 72 | 105 | 1 | 80 | 38 | 88 | 110 | 9 | 32 | 62.2 | 152 |
| 51314 | – | 70 | 125 | 40 | 72 | 125 | 1.1 | – | – | – | – | – | – | 127.3 | 275.5 |
| 53314 | – | 70 | 125 | 44.2 | 72 | 125 | 1.1 | 100 | 43 | – | – | – | – | 127.3 | 275.5 |
| 53314 | U314 | 70 | 125 | 44.2 | 72 | 125 | 1.1 | 100 | 43 | 98 | 130 | 13 | 48 | 127.3 | 275.5 |
| 51414 | – | 70 | 150 | 60 | 73 | 150 | 2 | – | – | – | – | – | – | 224.2 | 475 |
| 51115 | – | 75 | 100 | 19 | 77 | 100 | 1 | – | – | – | – | – | – | 41.8 | 115.9 |
| 51215 | – | 75 | 110 | 27 | 77 | 110 | 1 | – | – | – | – | – | – | 63.7 | 161.5 |
| 53215 | – | 75 | 110 | 28.3 | 77 | 110 | 1 | 90 | 49 | – | – | – | – | 63.7 | 161.5 |
| 53215 | U215 | 75 | 110 | 28.3 | 77 | 110 | 1 | 90 | 49 | 92 | 115 | 9.5 | 32 | 63.7 | 161.5 |
| 51315 | – | 75 | 135 | 44 | 77 | 135 | 1.5 | – | – | – | – | – | – | 154.9 | 342 |
| 53315 | – | 75 | 135 | 48.1 | 77 | 135 | 1.5 | 100 | 37 | – | – | – | – | 154.9 | 342 |
| 53315 | U315 | 75 | 135 | 48.1 | 77 | 135 | 1.5 | 100 | 37 | 105 | 140 | 15 | 52 | 154.9 | 342 |
| 51415 | – | 75 | 160 | 65 | 78 | 160 | 2 | – | – | – | – | – | – | 237.5 | 532 |
| 51116 | – | 80 | 105 | 19 | 82 | 105 | 1 | – | – | – | – | – | – | 42.8 | 122.6 |
| 51216 | – | 80 | 115 | 28 | 82 | 115 | 1 | – | – | – | – | – | – | 71.3 | 180.5 |
| 53216 | – | 80 | 115 | 29.5 | 82 | 115 | 1 | 90 | 46 | – | – | – | – | 71.3 | 180.5 |
| 53216 | U216 | 80 | 115 | 29.5 | 82 | 115 | 1 | 90 | 46 | 98 | 120 | 10 | 33 | 71.3 | 180.5 |
| 51316 | – | 80 | 140 | 44 | 82 | 140 | 1.5 | – | – | – | – | – | – | 152 | 342 |
| 53316 | – | 80 | 140 | 47.6 | 82 | 140 | 1.5 | 112 | 50 | – | – | – | – | 152 | 342 |
| 53316 | U316 | 80 | 140 | 47.6 | 82 | 140 | 1.5 | 112 | 50 | 110 | 145 | 15 | 52 | 152 | 342 |
| 51416 | – | 80 | 170 | 68 | 83 | 170 | 2.1 | – | – | – | – | – | – | 256.5 | 589 |
| 51117 | – | 85 | 110 | 19 | 87 | 110 | 1 | – | – | – | – | – | – | 43.2 | 127.3 |
| 51217 | – | 85 | 125 | 31 | 88 | 125 | 1 | – | – | – | – | – | – | 93.1 | 237.5 |
| 53217 | – | 85 | 125 | 33.1 | 88 | 125 | 1 | 100 | 52 | – | – | – | – | 93.1 | 237.5 |
| 53217 | U217 | 85 | 125 | 33.1 | 88 | 125 | 1 | 100 | 52 | 105 | 130 | 11 | 37 | 93.1 | 237.5 |
| 51317 | – | 85 | 150 | 49 | 88 | 150 | 1.5 | – | – | – | – | – | – | 176.7 | 394.3 |
| 53317 | – | 85 | 150 | 53.1 | 88 | 150 | 1.5 | 112 | 43 | – | – | – | – | 176.7 | 394.3 |
| 53317 | U317 | 85 | 150 | 53.1 | 88 | 150 | 1.5 | 112 | 43 | 115 | 155 | 17.5 | 58 | 176.7 | 394.3 |
| 51417 | – | 85 | 180 | 72 | 88 | 177 | 2.1 | – | – | – | – | – | – | 275.5 | 646 |
| 51118 | – | 90 | 120 | 22 | 92 | 120 | 1 | – | – | – | – | – | – | 43.2 | 133 |
| 51218 | – | 90 | 135 | 35 | 93 | 135 | 1.1 | – | – | – | – | – | – | 112.1 | 285 |
| 53218 | – | 90 | 135 | 38.5 | 93 | 135 | 1.1 | 100 | 45 | – | – | – | – | 112.1 | 285 |
| 53218 | U218 | 90 | 135 | 38.5 | 93 | 135 | 1.1 | 100 | 45 | 110 | 140 | 13.5 | 42 | 112.1 | 285 |
| 51318 | – | 90 | 155 | 50 | 93 | 155 | 1.5 | – | – | – | – | – | – | 183.4 | 432.3 |
| 53318 | – | 90 | 155 | 54.6 | 93 | 155 | 1.5 | 112 | 40 | – | – | – | – | 183.4 | 432.3 |
| 53318 | U318 | 90 | 155 | 54.6 | 93 | 155 | 1.5 | 112 | 40 | 120 | 160 | 18 | 59 | 183.4 | 432.3 |
| 51418 | – | 90 | 190 | 77 | 93 | 187 | 2.1 | – | – | – | – | – | – | 289.8 | 712.5 |
| 51120 | – | 100 | 135 | 25 | 102 | 135 | 1 | – | – | – | – | – | – | 76.5 | 243 |
| 51220 | – | 100 | 150 | 38 | 103 | 150 | 1.1 | – | – | – | – | – | – | 114.3 | 292.5 |
| 53220 | – | 100 | 150 | 40.9 | 103 | 150 | 1.1 | 112 | 52 | – | – | – | – | 109.8 | 288 |
| 53220 | U220 | 100 | 150 | 40.9 | 103 | 150 | 1.1 | 112 | 52 | 125 | 155 | 14 | 45 | 109.8 | 288 |
| 51320 | – | 100 | 170 | 55 | 103 | 170 | 1.5 | – | – | – | – | – | – | 216 | 526.5 |
| 53320 | – | 100 | 170 | 59.2 | 103 | 170 | 1.5 | 125 | 46 | – | – | – | – | 216 | 526.5 |
| 53320 | U320 | 100 | 170 | 59.2 | 103 | 170 | 1.5 | 125 | 46 | 135 | 175 | 18 | 64 | 216 | 526.5 |
| 51420 | – | 100 | 210 | 85 | 103 | 205 | 3 | – | – | – | – | – | – | 328.5 | 868.5 |
| 51122 | – | 110 | 145 | 25 | 112 | 145 | 1 | – | – | – | – | – | – | 77.9 | 261 |
| 51222 | – | 110 | 160 | 38 | 113 | 160 | 1.1 | – | – | – | – | – | – | 120.6 | 328.5 |
| 53222 | – | 110 | 160 | 40.2 | 113 | 160 | 1.1 | 125 | 65 | – | – | – | – | 120.6 | 328.5 |
| 53222 | U222 | 110 | 160 | 40.2 | 113 | 160 | 1.1 | 125 | 65 | 135 | 165 | 14 | 45 | 120.6 | 328.5 |
| 51322 | – | 110 | 190 | 63 | 113 | 187 | 2 | – | – | – | – | – | – | 252 | 675 |
| 53322 | – | 110 | 190 | 67.2 | 113 | 187 | 2 | 140 | 51 | – | – | – | – | 252 | 675 |
| 53322 | U322 | 110 | 190 | 67.2 | 113 | 187 | 2 | 140 | 51 | 150 | 195 | 20.5 | 72 | 252 | 675 |
| 51422 | – | 110 | 230 | 95 | 113 | 225 | 3 | – | – | – | – | – | – | 373.5 | 1026 |
| 51124 | – | 120 | 155 | 25 | 122 | 155 | 1 | – | – | – | – | – | – | 81 | 279 |
| 51224 | – | 120 | 170 | 39 | 123 | 170 | 1.1 | – | – | – | – | – | – | 120.6 | 351 |
| 53224 | – | 120 | 170 | 40.8 | 123 | 170 | 1.1 | 125 | 61 | – | – | – | – | 120.6 | 351 |
| 53224 | U224 | 120 | 170 | 40.8 | 123 | 170 | 1.1 | 125 | 61 | 145 | 175 | 15 | 46 | 120.6 | 351 |
| 51324 | – | 120 | 210 | 70 | 123 | 205 | 2.1 | – | – | – | – | – | – | 292.5 | 823.5 |
| 53324 | – | 120 | 210 | 74.1 | 123 | 205 | 2.1 | 160 | 63 | – | – | – | – | 292.5 | 823.5 |
| 53324 | U324 | 120 | 210 | 74.1 | 123 | 205 | 2.1 | 160 | 63 | 165 | 220 | 22 | 80 | 292.5 | 823.5 |
| 51424 | – | 120 | 250 | 102 | 123 | 245 | 4 | – | – | – | – | – | – | 382.5 | 1098 |
| 51126 | – | 130 | 170 | 30 | 132 | 170 | 1 | – | – | – | - | - | - | 100.8 | 351 |
| 51226 | – | 130 | 190 | 45 | 133 | 187 | 1.5 | – | – | – | - | - | - | 164.7 | 486 |
| 53226 | – | 130 | 190 | 47.9 | 133 | 187 | 1.5 | 140 | 67 | – | - | - | - | 164.7 | 486 |
| 53226 | U226 | 130 | 190 | 47.9 | 133 | 187 | 1.5 | 140 | 67 | 160 | 195 | 17 | 53 | 164.7 | 486 |
| 51326 | – | 130 | 225 | 75 | 134 | 220 | 2.1 | – | – | – | - | - | - | 324 | 954 |
| 51128 | – | 140 | 180 | 31 | 142 | 178 | 1 | – | – | – | - | - | - | 100.8 | 360 |
| 51228 | – | 140 | 200 | 46 | 143 | 197 | 1.5 | – | – | – | - | - | - | 171 | 513 |
| 53228 | – | 140 | 200 | 48.6 | 143 | 197 | 1.5 | 160 | 87 | – | - | - | - | 171 | 513 |
| 53228 | U228 | 140 | 200 | 48.6 | 143 | 197 | 1.5 | 160 | 87 | 170 | 210 | 17 | 55 | 171 | 513 |
| 51328 | – | 140 | 240 | 80 | 144 | 235 | 2.1 | – | – | – | - | - | - | 364.5 | 1125 |
| 51130 | – | 150 | 190 | 31 | 152 | 188 | 1 | – | – | – | - | - | - | 99 | 360 |
| 51230 | – | 150 | 215 | 50 | 153 | 212 | 1.5 | – | – | – | - | - | - | 212.4 | 661.5 |
| 53230 | – | 150 | 215 | 53.3 | 153 | 212 | 1.5 | 160 | 79 | – | - | - | - | 212.4 | 661.5 |
| 53230 | U230 | 150 | 215 | 53.3 | 153 | 212 | 1.5 | 160 | 79 | 180 | 225 | 20.5 | 60 | 212.4 | 661.5 |
| 51330 | – | 150 | 250 | 80 | 154 | 245 | 2.1 | – | – | – | - | - | - | 373.5 | 1206 |
| 53330 | – | 150 | 250 | 83.7 | 154 | 245 | 2.1 | 200 | 89.5 | – | - | - | - | 373.5 | 1206 |
| 53330 | U330 | 150 | 250 | 83.7 | 154 | 245 | 2.1 | 200 | 89.5 | 200 | 260 | 26 | 92 | 373.5 | 1206 |
| 51132 | – | 160 | 200 | 31 | 162 | 198 | 1 | – | – | – | - | - | - | 100.8 | 387 |
| 51232 | – | 160 | 225 | 51 | 163 | 222 | 1.5 | – | – | – | - | - | - | 216 | 688.5 |
| 53232 | – | 160 | 225 | 54.7 | 163 | 222 | 1.5 | 160 | 74 | – | - | - | - | 216 | 688.5 |
| 53232 | U232 | 160 | 225 | 54.7 | 163 | 222 | 1.5 | 160 | 74 | 190 | 235 | 21 | 61 | 216 | 688.5 |
| 51332 | – | 160 | 270 | 87 | 164 | 265 | 3 | – | – | – | - | - | - | 418.5 | 1404 |
| 51134 | – | 170 | 215 | 34 | 172 | 213 | 1.1 | – | – | – | - | - | - | 118.8 | 450 |
| 51234 | – | 170 | 240 | 55 | 173 | 237 | 1.5 | – | – | – | - | - | - | 256.5 | 837 |
| 53234 | – | 170 | 240 | 58.7 | 173 | 237 | 1.5 | 180 | 91 | – | - | - | - | 256.5 | 837 |
| 53234 | U234 | 170 | 240 | 58.7 | 173 | 237 | 1.5 | 180 | 91 | 200 | 250 | 21.5 | 65 | 256.5 | 837 |
| 51334 | – | 170 | 280 | 87 | 174 | 275 | 3 | – | – | – | - | - | - | 418.5 | 1404 |
| 51136 | – | 180 | 225 | 34 | 183 | 222 | 1.1 | – | – | – | – | – | – | 120.6 | 477 |
| 51236 | – | 180 | 250 | 56 | 183 | 245 | 1.5 | – | – | – | – | – | – | 274.5 | 936 |
| 53236 | – | 180 | 250 | 58.2 | 183 | 245 | 1.5 | 200 | 112 | – | – | – | – | 274.5 | 936 |
| 53236 | U236 | 180 | 250 | 58.2 | 183 | 245 | 1.5 | 200 | 112 | 210 | 260 | 21.5 | 66 | 274.5 | 936 |
| 51336 | – | 180 | 300 | 95 | 184 | 295 | 3 | – | – | – | – | – | – | 468 | 1647 |
| 51138 | – | 190 | 240 | 37 | 193 | 237 | 1.1 | – | – | – | – | – | – | 153 | 589.5 |
| 51238 | – | 190 | 270 | 62 | 194 | 265 | 2 | – | – | – | – | – | – | 301.5 | 1044 |
| 53238 | – | 190 | 270 | 65.7 | 195 | 265 | 2 | 200 | 98 | – | – | – | – | 301.5 | 1044 |
| 53238 | U238 | 190 | 270 | 65.7 | 195 | 265 | 2 | 200 | 98 | 230 | 280 | 23 | 73 | 301.5 | 1044 |
| 51338 | – | 190 | 320 | 105 | 195 | 315 | 4 | – | – | – | – | – | – | 540 | 1980 |
| 51140 | – | 200 | 250 | 37 | 203 | 247 | 1.1 | – | – | – | – | – | – | 153 | 589.5 |
| 51240 | – | 200 | 280 | 62 | 204 | 275 | 2 | – | – | – | – | – | – | 306 | 1098 |
| 51340 | – | 200 | 340 | 110 | 205 | 335 | 4 | – | – | – | – | – | – | 558 | 2160 |
| 51144 | – | 220 | 270 | 37 | 223 | 267 | 1.1 | – | – | – | – | – | – | 158.4 | 661.5 |
| 51244 | – | 220 | 300 | 63 | 224 | 295 | 2 | – | – | – | – | – | – | 319.5 | 1206 |
| 51148 | – | 240 | 300 | 45 | 243 | 297 | 1.5 | – | – | – | – | – | – | 208.8 | 868.5 |
| 51248 | – | 240 | 340 | 78 | 244 | 335 | 2.1 | – | – | – | – | – | – | 418.5 | 1674 |
| 51152 | – | 260 | 320 | 45 | 263 | 317 | 1.5 | – | – | – | – | – | – | 212.4 | 918 |
| 51252 | – | 260 | 360 | 79 | 264 | 355 | 2.1 | – | – | – | – | – | – | 441 | 1836 |
| 51156 | – | 280 | 350 | 53 | 283 | 347 | 1.5 | – | – | – | – | – | – | 283.5 | 1206 |
| 51256 | – | 280 | 380 | 80 | 284 | 375 | 2.1 | – | – | – | – | – | – | 441 | 1944 |
| 51160 | – | 300 | 380 | 62 | 304 | 376 | 2 | – | – | – | – | – | – | 328.5 | 1440 |
| 51260 | – | 300 | 420 | 95 | 304 | 415 | 3 | – | – | – | – | – | – | 526.5 | 2430 |
| 51164 | – | 320 | 400 | 63 | 324 | 396 | 2 | – | – | – | – | – | – | 337.5 | 1530 |
| 51264 | – | 320 | 440 | 95 | 325 | 435 | 3 | – | – | – | – | – | – | 540 | 2520 |
| 51168 | – | 340 | 420 | 64 | 344 | 416 | 2 | – | – | – | – | – | – | 342 | 1620 |
| 51268 | – | 340 | 460 | 96 | 345 | 455 | 3 | – | – | – | – | – | – | 558 | 2745 |
| 51172 | – | 360 | 440 | 65 | 364 | 436 | 2 | – | – | – | – | – | – | 364.5 | 1800 |
| 51272 | – | 360 | 500 | 110 | 365 | 495 | 4 | – | – | – | – | – | – | 648 | 3285 |
| 51176 | – | 380 | 460 | 65 | 384 | 456 | 2 | – | – | – | - | - | - | 387 | 2016 |
| 51180 | - | 400 | 480 | 65 | 404 | 476 | 2 | – | – | – | - | - | - | 396 | 2088 |
| 51184 | - | 420 | 500 | 65 | 424 | 495 | 2 | – | – | - | - | - | - | 396 | 2205 |
| 51192 | - | 460 | 560 | 80 | 464 | 555 | 2.1 | – | – | - | - | - | - | 477 | 2790 |
| 511/500 | - | 500 | 600 | 80 | 505 | 595 | 2.1 | – | - | - | - | - | - | 495 | 3015 |
| 511/530 | - | 530 | 640 | 85 | 535 | 635 | 3 | – | - | - | - | - | - | 558 | 3510 |
| 511/560 | - | 560 | 670 | 85 | 565 | 665 | 3 | – | - | - | - | - | - | 567 | 3735 |
Proses kawalan kualiti
Ujian Bahan: Setiap kumpulan keluli disahkan untuk komposisi kimia dan kekerasan (HRC 60-64).
Pemesinan Precision: Kami menggunakan mesin pengisaran CNC untuk memastikan bahawa pusingan galas bola tujahan arah tunggal dikekalkan dalam 0.003 mm.
Gred Ball: Bola kami mencapai ketepatan G10 dengan sisihan diameter kurang daripada 0.0025 mm.
Pilihan penyesuaian
• Bahan Khas: Kami menggunakan keluli tahan karat 440C, galas bola tujahan tunggal mempunyai rintangan kakisan yang sangat baik dan sangat sesuai untuk persekitaran laut.
• Pilihan pelinciran: Pilih Grease Temp Tinggi (mengendalikan sehingga 180 ℃) atau NSF H1-Certified Grade Lube.
• Reka bentuk pemasangan: Mereka bekerja dengan cincin luar flanged atau aci berulir, jadi pemasangan adalah angin.
• Menandai: Kami melakukan ukiran laser adat -untuk mengesan inventori atau penjenamaan.
Teg Panas: Galas bola tujahan arah tunggal
Hantar Pertanyaan
Maklumat Hubungan
-
Alamat
No.183,Longfeng,Barat Zhangting Industrial Zone,Yuyao,Ningbo,China
-
Tel
-
E-mel
Hantar spesifikasi untuk galas perindustrian, galas bola alur yang mendalam, galas roller tirus, dan banyak lagi. Pasukan BMT bertindak balas dalam masa 24 jam dengan harga yang kompetitif untuk galas tahan lama.
